Omicron CP TD1 Reference Manual

Test Cards
29

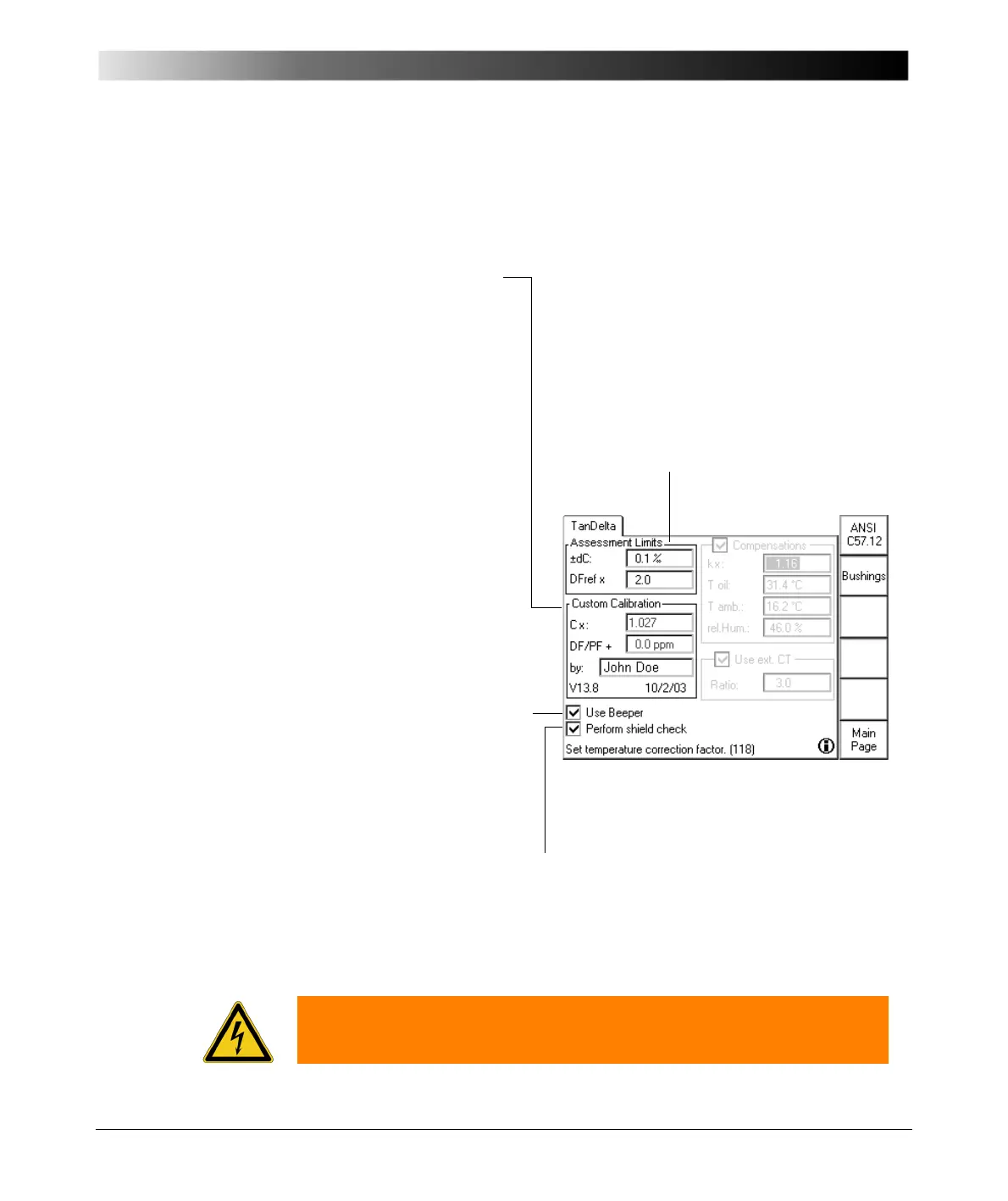

3.3 TanDelta Test Card - Settings Page (1/2)
The TanDelta Settings page allows for the setting of additional measurement
options. To open it, press the S
ETTINGS button on the TanDelta Main Page.
At "Assessment Limits", set the tolerance of
the Main Page’s nominal values for the
assessment.
For the capacitance, the tolerance is
entered in percent, for the dissipation factor
it’s a multiplier.
Note: Availability and naming of the entry
fields depend on the measuring mode, e.g.,
DF and PF are the same entry field.
The CP TD1 leaves
OMICRON factory-calibrated.
If a component needs to be
exchanged by a spare part, the
CP TD1 must be re-calibrated.
To re-calibrate, set the focus
onto the test card tab
designation TanDelta and
press E
DIT CALIB to enable
the entry fields:
• Cx = correction factor for
Cmeas (multiplier)
• DF/PF + = corrective value
added to dissipation or
power factor (can be + or -).
Note: You must enter your
name and press U
PDATE
C
ALIB. to complete the re-
calibration.
If selected, the beeper sounds
during the entire test to signal
the output of hazardous high
voltages. If cleared, the beeper
sounds at the beginning and
the end of the test only.
If selected, the CPC 100 checks whether the shield of the high-voltage cable is
connected. For some large inductive loads, the CPC 100 can accidentally report
shield check error even when the shield is connected. If this is the case, it makes
sense to clear the check box.
Warning: Never operate the CP TD1 with unconnected shield of the high-
voltage cable. If the "Perform shield check" check box is cleared, make sure
that the shield is connected before operating the CP TD1.
