Omicron CP TD1 Reference Manual

87
Power Transformers

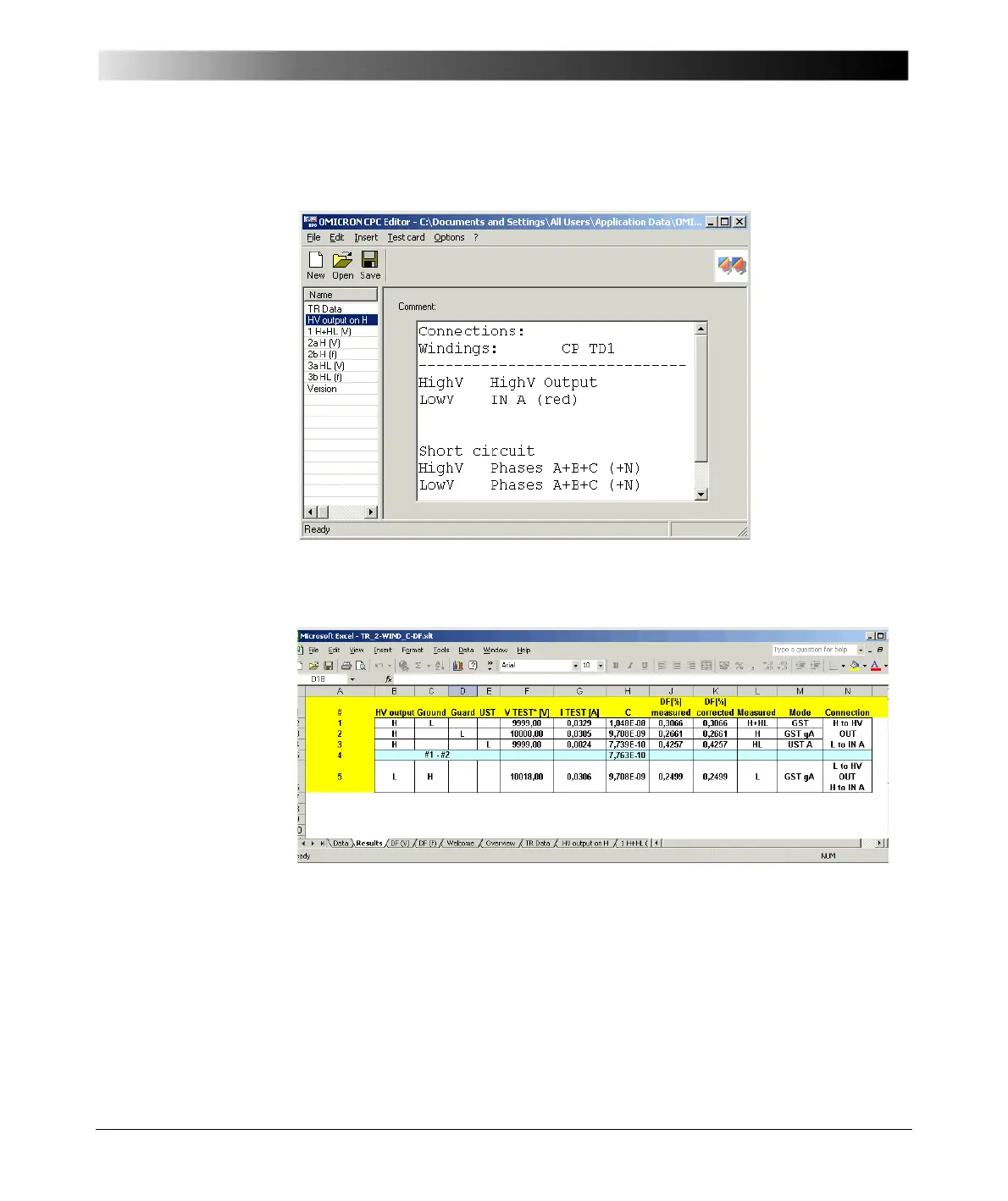

Figures 6-17 and 6-18 show the preparation with the CPC Editor and the test
results in MS Excel format.
Figure 6-17 Two-winding transformer test preparation with CPC Editor
Figure 6-18 10 kV results for a two-winding transformer (50 Hz)
6.2.3 Auto-Transformer
The auto-transformer has only one winding with a tap for the low-voltage output.
Only one measurement is made of the winding to tank and core. All high-voltage
and low-voltage terminals are connected together as they are building the high-
voltage electrode of the capacity.
