CP TD1 Reference Manual V 1.44
182
12.11.2 Bushings

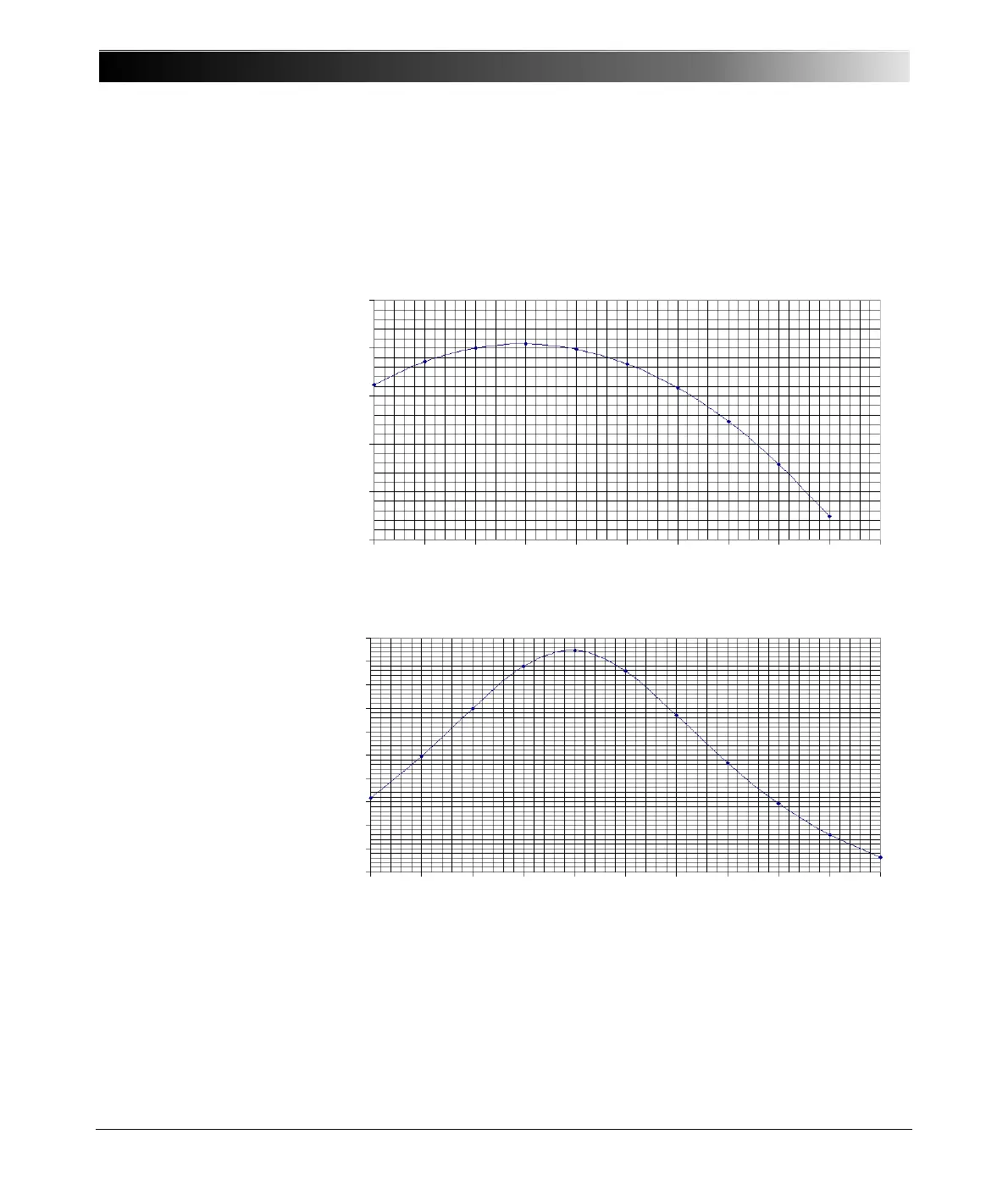

The temperature curves apply to medium-aged bushings and are determined by
long-time studies of a utility.
0 102030405060708090100
Temperature in °C
1.1
1.0
0.9
0.8
0.7
0.6
DF Correction Factor k
Resin Impregnated Paper (RIP)
0 102030405060708090100
Temperature in °C
1.3
1.2
1.1
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
DF Correction Factor k
Resin Bonded Paper (RBP)
