CP TD12/15 User Manual
22 OMICRON
2.3.2 TESTRANO 600 side panel

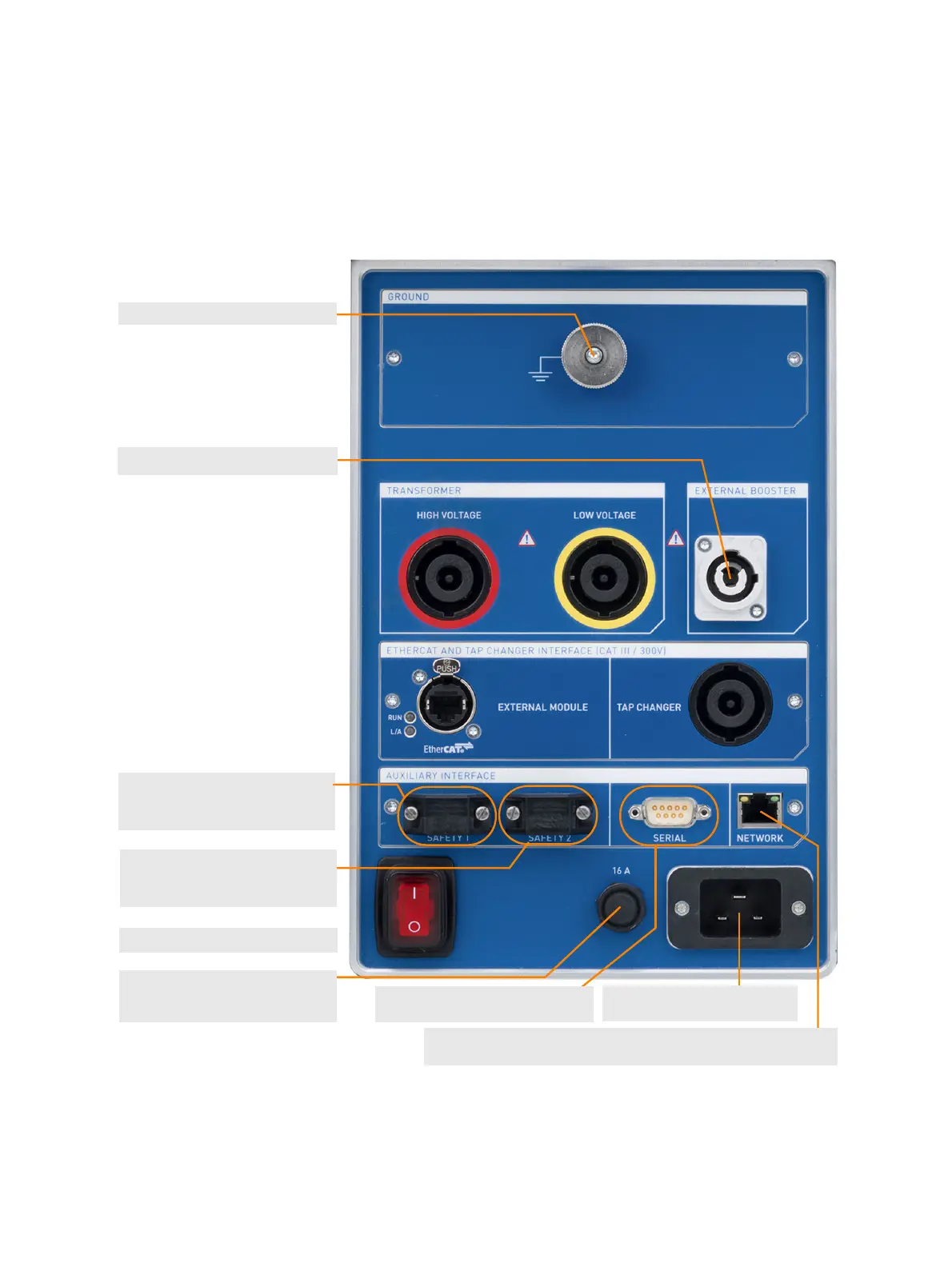

Figure 2-9: TESTRANO 600 side panel
Equipotential ground terminal
SAFETY 1 (IN for remote control)
Master connector for OMICRON
safety accessories
Power switch
Mains power socket
1 phase, 85 V ... 264 V AC
NETWORK
RJ-45 socket for connecting TESTRANO 600 to an external computer
SERIAL
Connection to CP TD
Automatic circuit breaker 16A
Resettable mains overcurrent
protection
SAFETY 2 (OUT for remote control)
Slave connector for OMICRON safety
accessories
EXTERNAL BOOSTER
