CP TD12/15 User Manual
26 OMICRON
3.2 Connecting the CP TD12/15 to the Control device

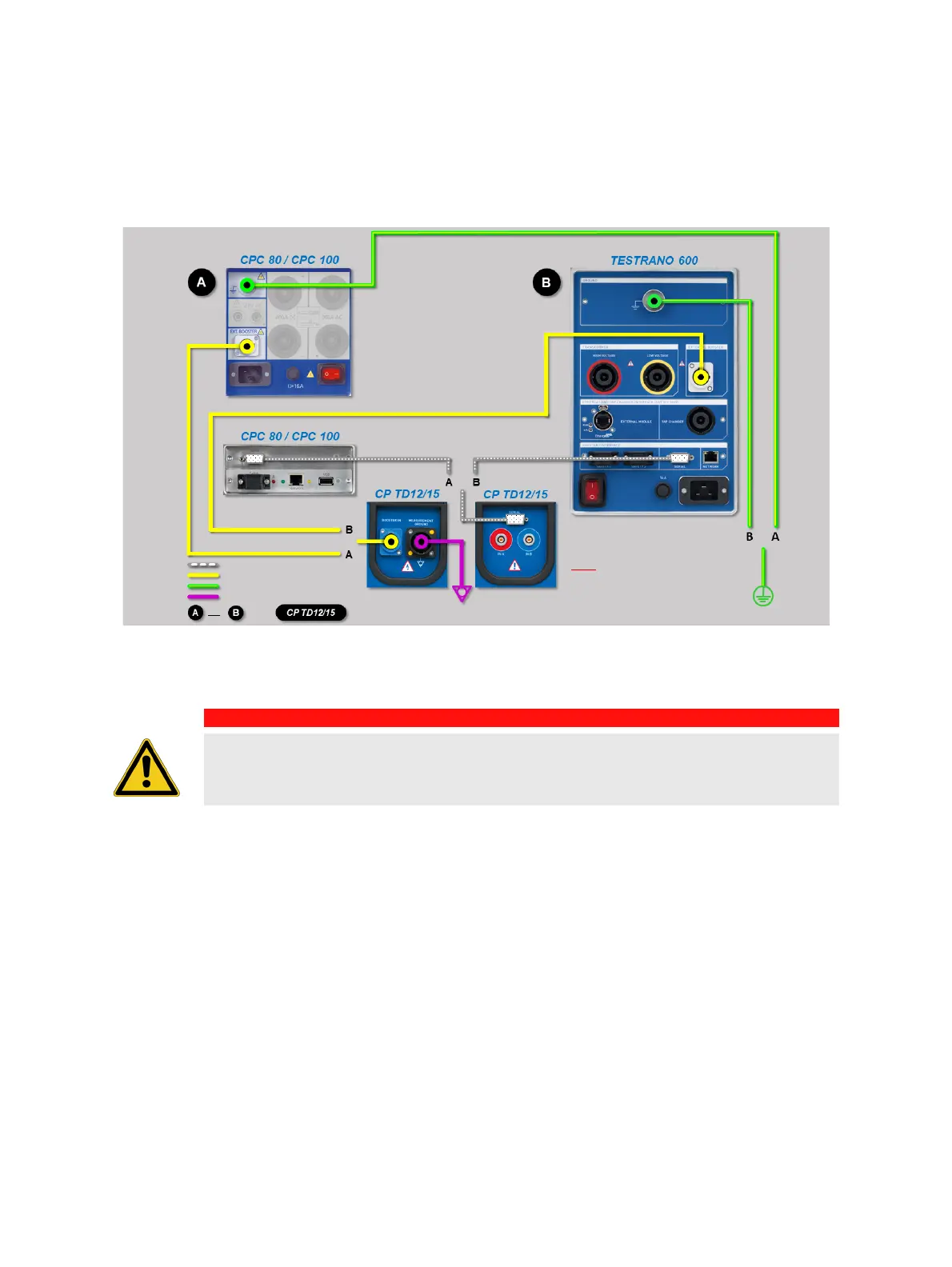

Figure 3-1: Connecting the CP TD12/15 to the CPC 100, CPC 80 or TESTRANO 600
DANGER
Death or severe injury caused by high voltage or current
► Never use the CP TD12/15 without connecting measurement ground with the supplied
cable.
BOOSTER CABLE
BOOSTER CABLE
SERIAL DATA CABLE
SERIAL DATA CABLE
Left side panel
Right side panel
Left side panel
Right side panel
Side panel
MEASUREMENT GROUND
EQUIPOTENTIAL GROUND (PE)
NOTE!
DO NOT CONNECT THE GROUNDING
CLAMPS DIRECTLY TOGETHER!
SERIAL DATA CABLE
BOOSTER CABLE
EQUIPOTENTIAL GROUNDING CABLE
MEASUREMENT GROUND CABLE
OR
AND
