5.4.1 Measurements on a two-winding transformer with the
CPC 100 and CPC 80

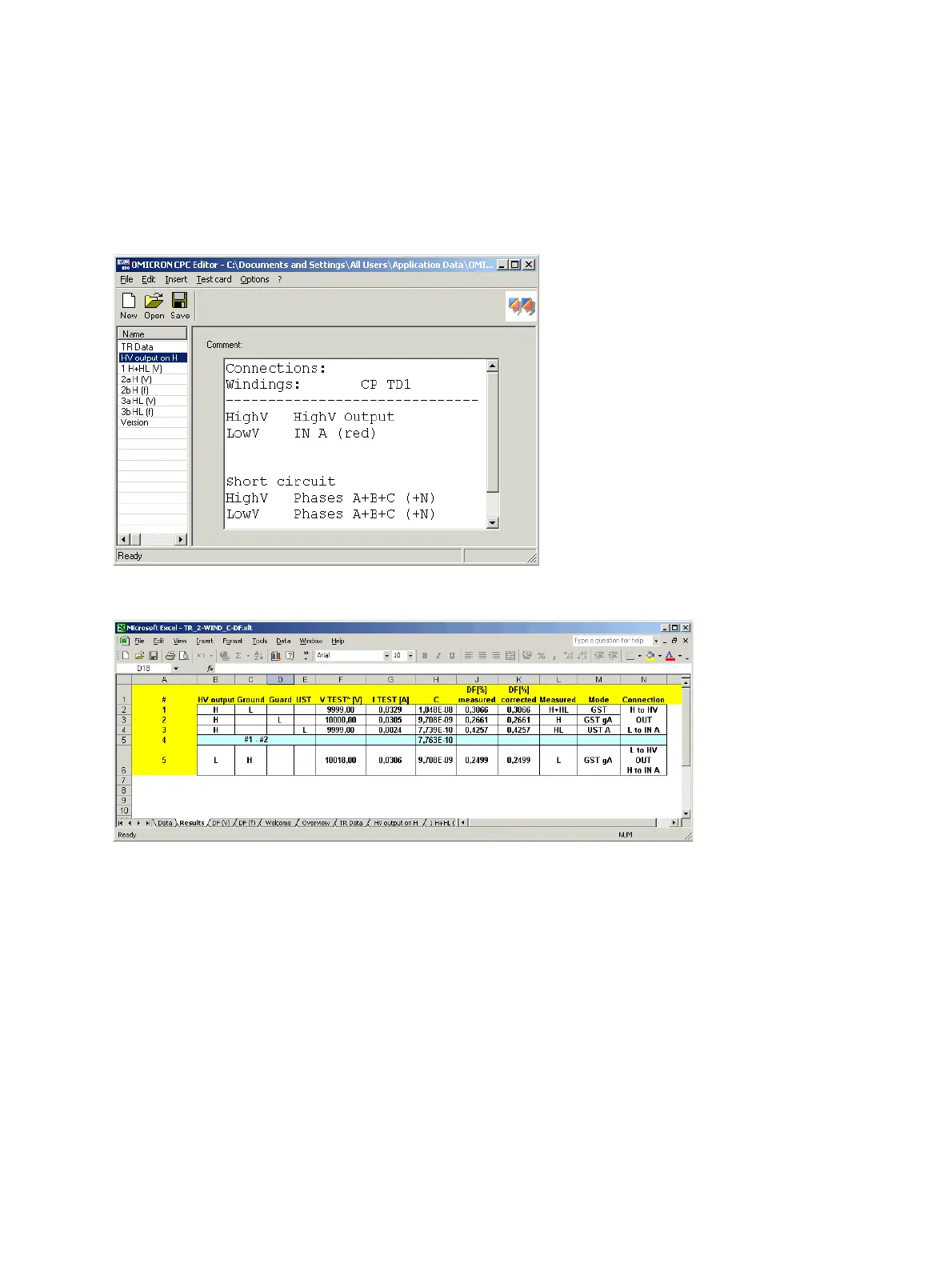

Figures 5-6 and 5-7 show the preparation with the CPC Editor and the test results in MS Excel format.
Figure 5-6: Two-winding transformer test preparation with CPC Editor
Figure 5-7: 10 kV results for a two-winding transformer (50 Hz)
5.4.2 Measurements on a two-winding transformer with the
TESTRANO 600
For a detailed description of the Tan Delta measurement with TESTRANO 600 refer to the
TESTRANO 600 User Manual under section "TouchControl tests" and its sub-section "Tan Delta".
