Omicron CP TD12 User Manual

OMICRON 9
Safety instructions
►Use the CP TD12/15 and its accessories only in a safe manner and only if they are in a technically
sound condition, mindful of the dangers while paying attention to the User Manual.
► Make sure the use of the CP TD12/15 is in accordance with the regulations on site and the
designated use described in this document.
► Comply with the workflows described in this document. Avoid interruptions or distractions that could
affect safety.
► Do not enter the high-voltage area if the red status light of the Control device is on since all outputs
can carry dangerous voltage or current!
► Always obey the five safety rules and follow the detailed safety instructions in the respective user
manuals.

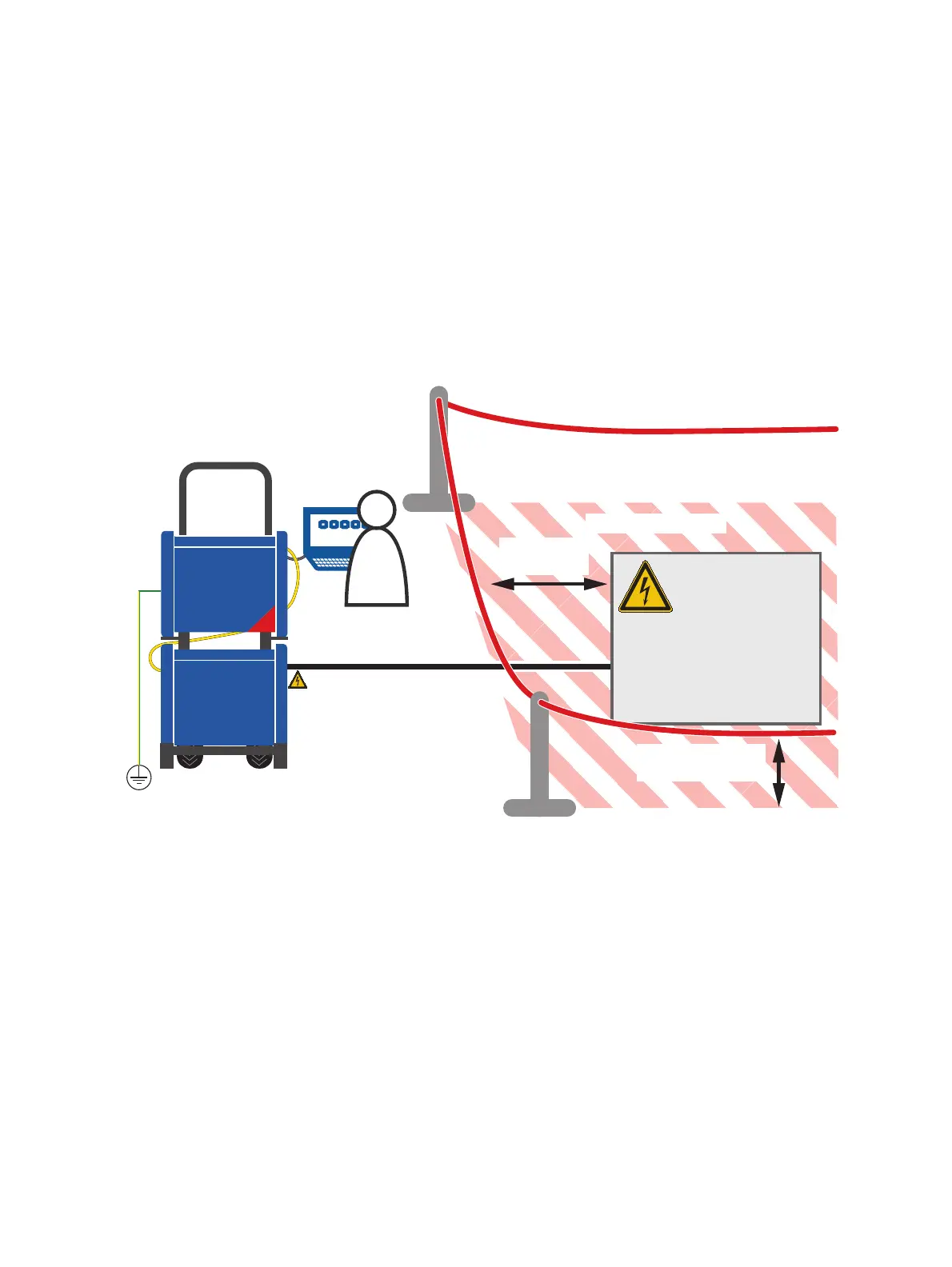

Figure 1-1: Example of the separation of work and high-voltage area
CP TD12/15
CPC 100
Device under test
Work area
High-voltage test area
Barrier height:
1 - 1.4 m / 3.3 - 4.6 ft
Distance:
min. 1.5 m/5 ft
Control
device
