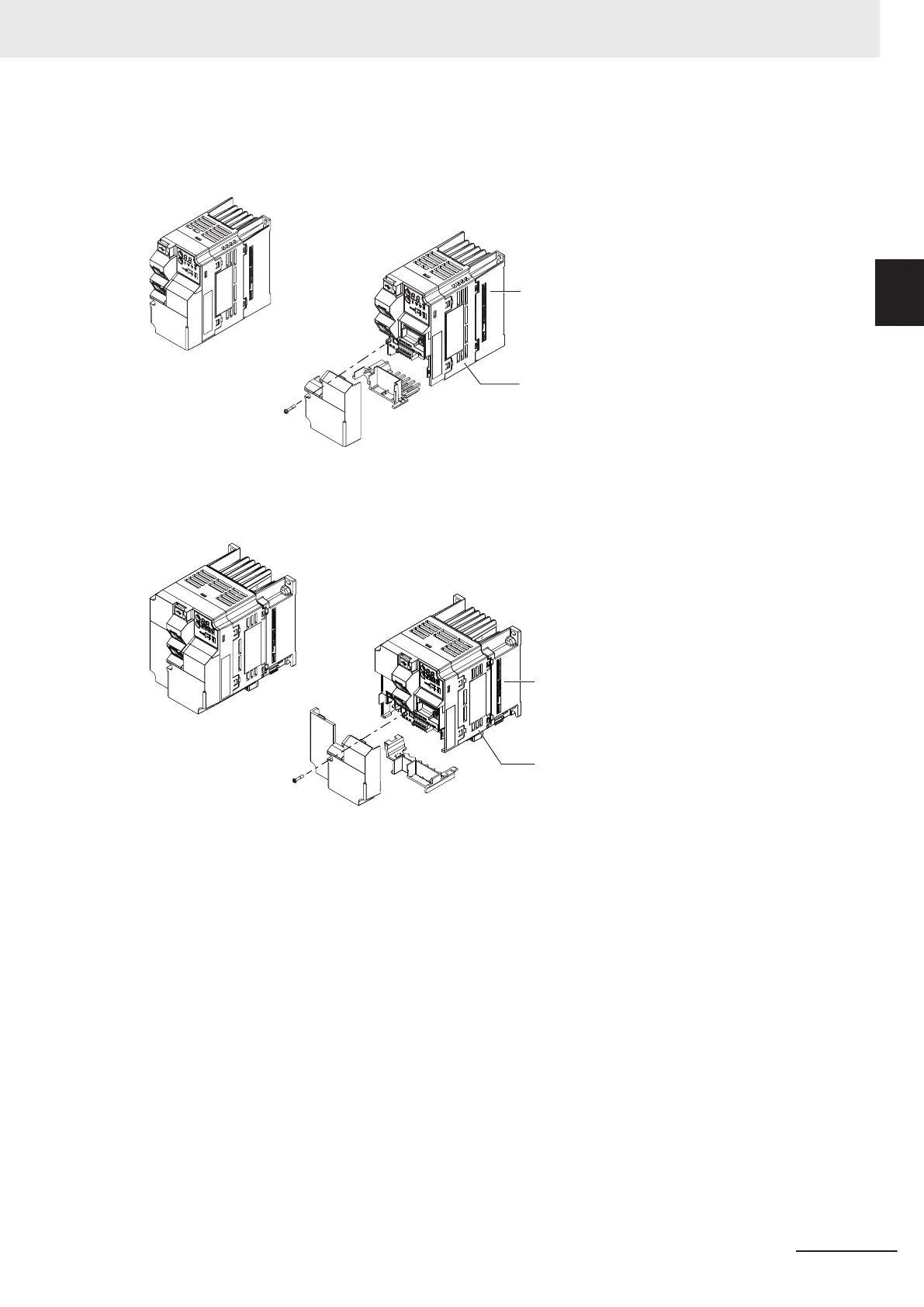

The figures below show the components of each Inverter model.
Single-phase 200 V, 0.1/0.2/0.4/0.75 kW
Three-phase 200 V
, 0.1/0.2/0.4/0.75 kW
(4)
(3)
(6)
Single-phase 200 V, 1.5 kW
Three-phase 200 V, 1.5/2.2 kW
Three-phase 400V
, 0.4/0.75/1.5/2.2kW
(3)
(4)
(6)
(5)
(1) Cooling Fan Cover (4) Inverter Case
(2) Cooling Fan (5) Surface cover (Terminal block cover)
(3) Cooling Fin (6) Surface cover (Backing plate)
Note The single-phase 200-V, 1.5-kW and three-phase 200-V, 1.5-kW models have a cooling fan.
The three-phase 400-V, 0.4/0.75/1.5 kW model, however, has no cooling fan.
