2 Installation and connection
2-1 Installation
BU100RS
■How to mount to the rack

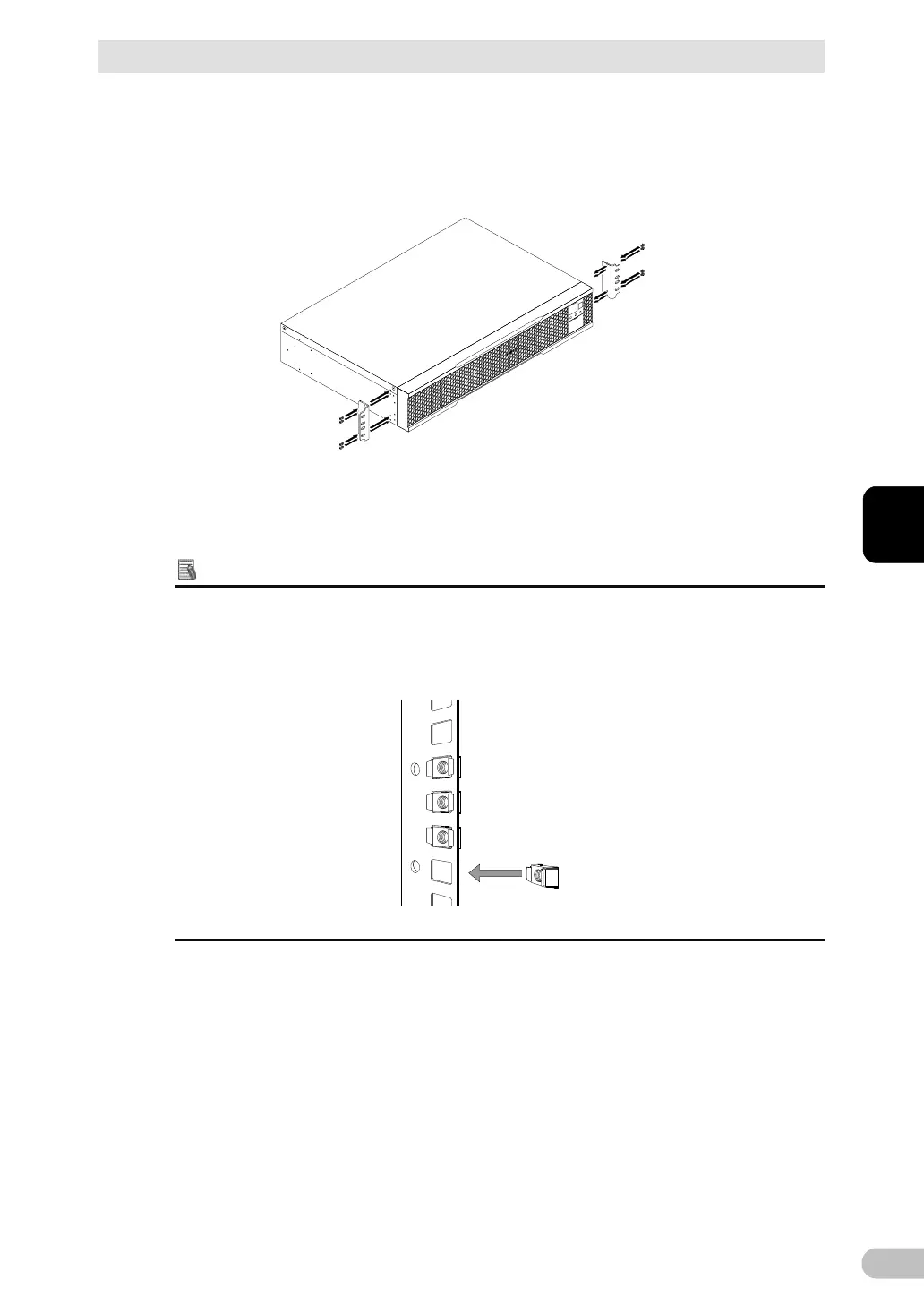

1. Fix the ear brackets on the left and right sides of the UPS by using eight ear-bracket
mounting flat head screws (M3) provided as accessories (four on each side) with the
torque specified for them (0.55±0.1N・m).
<Horizontal installation>
Reference
This section explains how to mount the UPS into a rack for horizontal installation.
For details about vertical installation, refer to pages 27 to 29.
* If the rack's posts have no female threads, attach rack cage nuts in advance.
To Next Page
