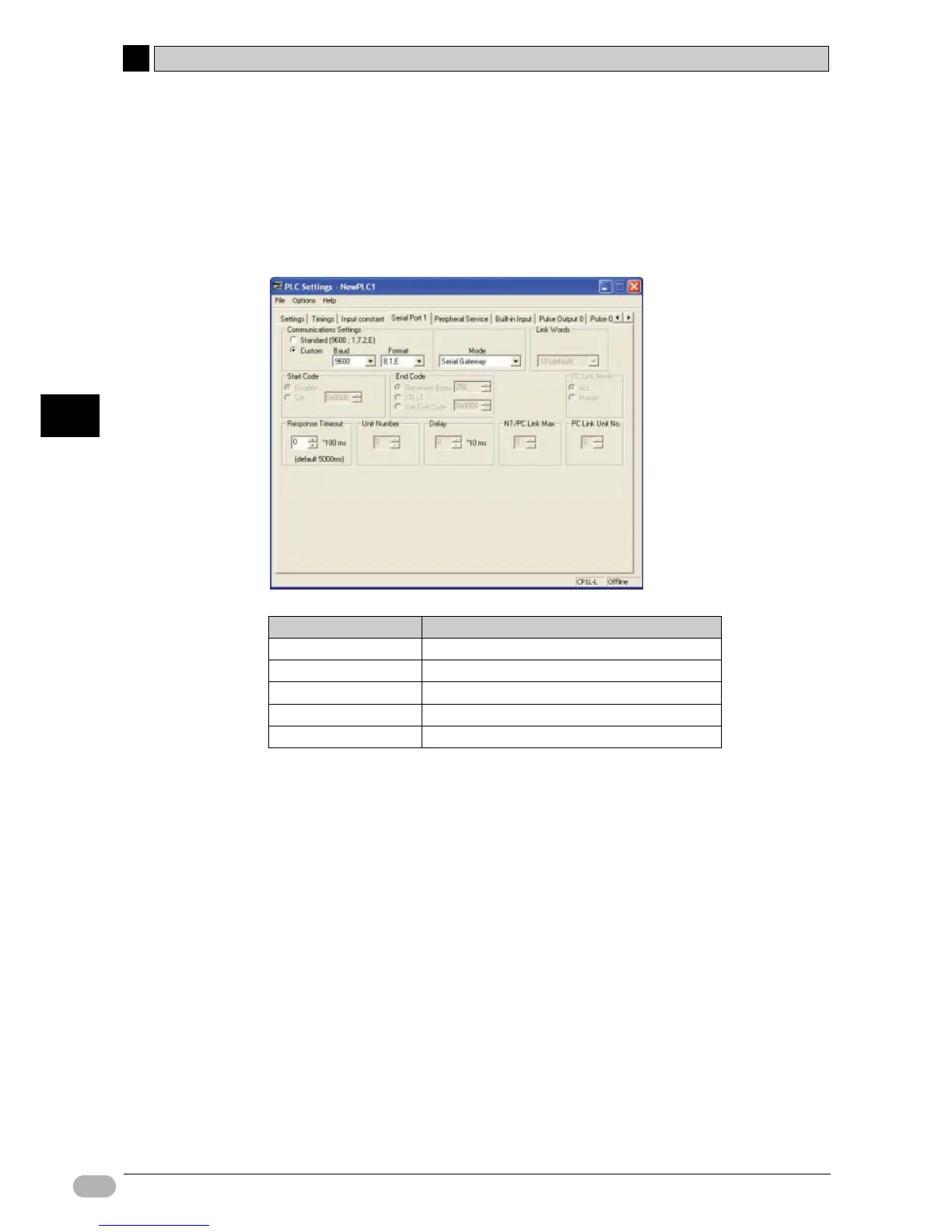

●PLC Setup
Configure serial port 1.
1. Open the PLC Settings dialog box.
2. Click the Serial Port 1 tab (CP1E: Built-in RS232C Port tab).
3. Set the following settings.
4. Close the PLC Settings dialog box.
Item Setting
Communication Settings Custom
Baud 9600bps
Format 8, 1, E
Mode Serial Gateway Mode (CP1E: Modbus Easy Master)
Response Timeout 0 (Default)
