DST1-ID12SL-1 Section 5-1
5-1-5 Dimensions

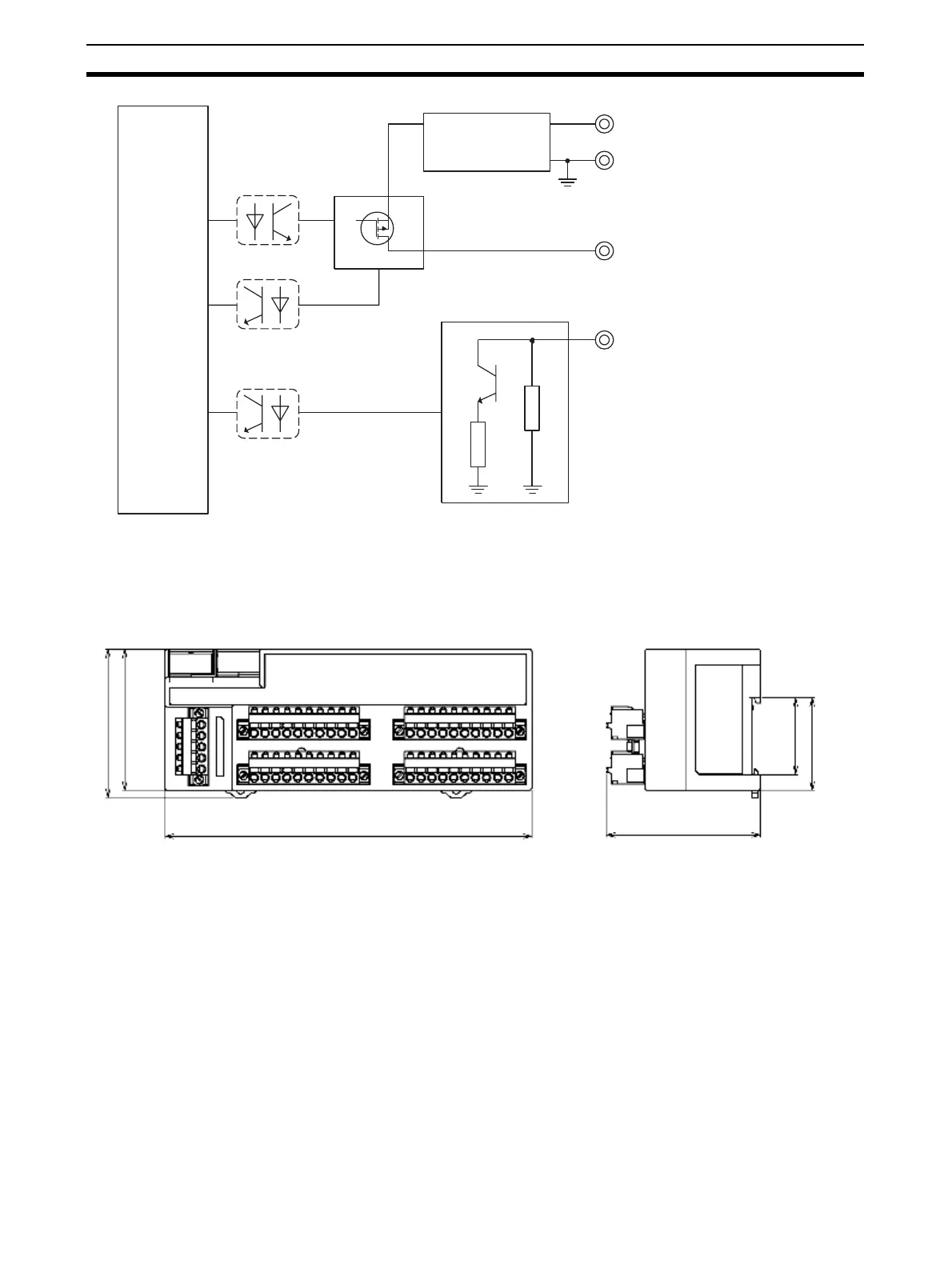

The following figures show the dimensions of the DST1-ID12SL-1 (unit: mm).
I/O Power Supply
Circuit
Internal
Circuit
Test Output Circuit
Safety Input Circuit
V
V+
G
T0...T3
IN0...IN11
170
71.4
(68.15)
65
35.5
42.75
