64
Editing Parameters Section 3-1

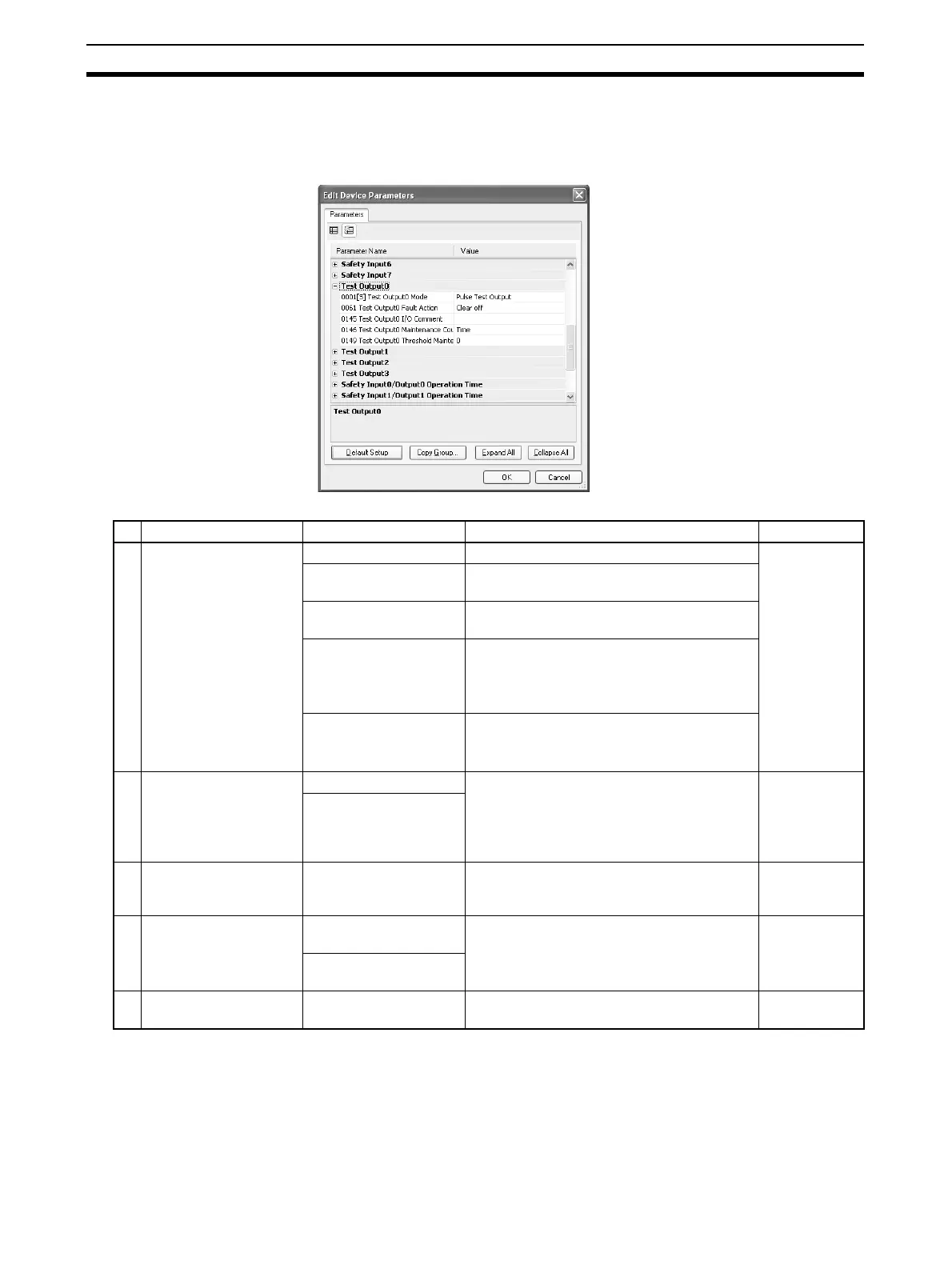

3-1-5 Test Output Parameter Groups
This section describes parameters in the test output groups.
The test output parameters are grouped by terminal number.
Note The time and count maintenance counter modes (contact operation counter
and total ON time monitor function) cannot be used for the test output termi-
nals of the DST1-XD0808SL-1.
Item Settings Description Default
S Test Output Mode Not Used. The corresponding test output is not used. Not Used.
Standard Output Specifies connecting to the input for a muting
lamp or PLC. Used as a monitor output.
Pulse Test Output Specifies connecting a device with a contact
output in combination with the safety input.
Power Supply Output Specifies connecting to the power supply ter-
minal of a safety sensor.
The voltages supplied to the IO power from
the test output are output.
Muting Lamp Output
(Setting supported only
for T3 terminal.)
Specifies a muting lamp output.
When the output is ON, disconnection of the
muting lamp can be detected.
Fault Action Clear off Sets the output state of the test output when
a communications error occurs.
This parameter is enabled when the Test
Output Channel Mode is set to Standard
Output or Muting Lamp Output.
Clear off
Hold last data
I/O Comment 32 characters max. Sets an I/O comment for the test output. The
I/O comment set here is used as the I/O tag
in the Logic Editor.
None
Maintenance Counter
Mode Choice
Time (cumulative ON
time monitor)
Sets the operating mode for the mainte-
nance counter.
Time
Count (contact opera-
tion counter)
Threshold Mainte-
nance Counter
0 to 4,294,967,295
hours
Sets the threshold value for the maintenance
counter.
0
To Next Page
