21
Monitoring Functions Section 1-6
1-6 Monitoring Functions
DST1-series Safety I/O Terminals hold a variety of status information inter-
nally. This information can be monitored using the Network Configurator.
1-6-1 Monitoring Status
Description
The status of the DST1-series Safety I/O Terminals can be monitored using
the Network Configurator. If an error occurs in a device, detailed information
about the error can be accessed.
Monitoring Status Using the Network Configurator
The user can monitor the status using any of the following methods:

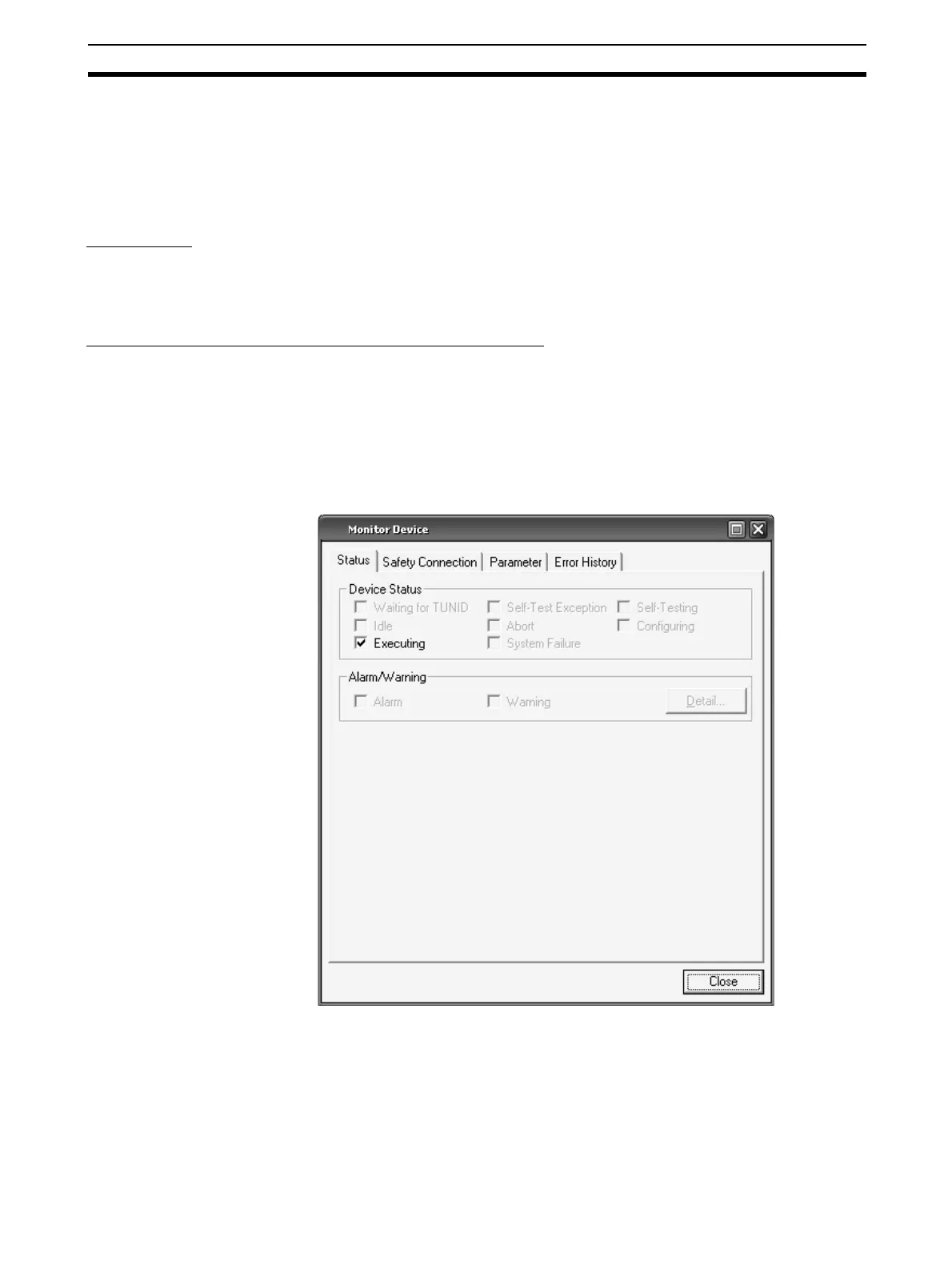

1. Select a device and select Device - Monitor from the menu bar. Click the
Status Tab in the displayed window.
2. Select a device and click the Monitor Device Button on the toolbar. Click
the Status Tab in the displayed window.
3. Right-click a device and select Monitor from the pop-up menu. Click the
Status Tab in the displayed window.
To Next Page
