Omron DST1-ID12SL-1 User Manual

24

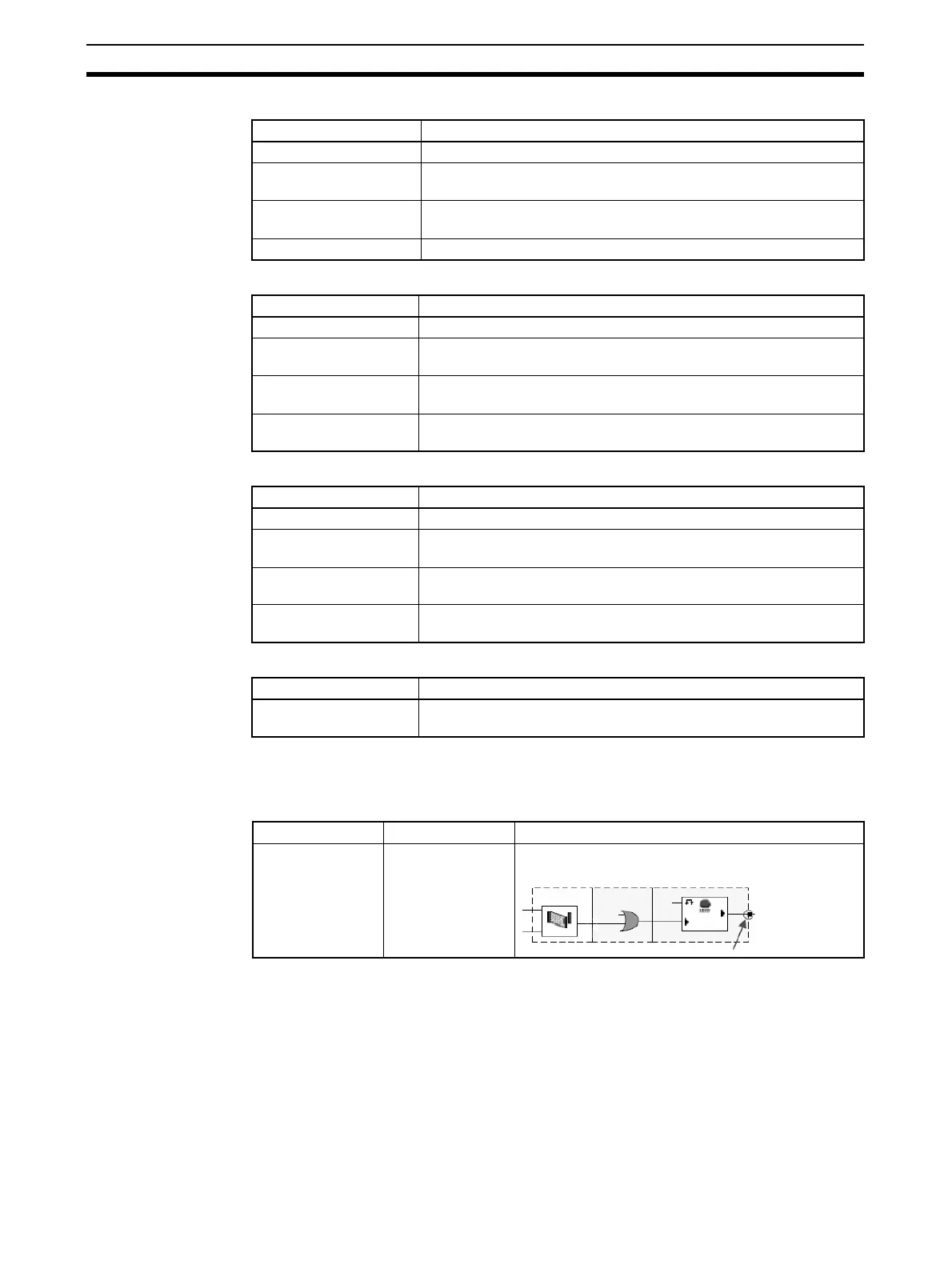

Monitoring Functions Section 1-6
Test Output Terminal Status
Safety Input Terminal Status
Safety Output Terminal Status
Dual Channel Safety Input Status
For the DST-XD0808SL-1, the following items will be displayed in addition to
the above items.
Output Value of the Input Section Internal Logic
Item Description
Test Output Value Output value of the test output.
Test Output Status Evaluation result of the test output. “Alarm” is displayed if an error
occurs.
Reason for Test Output
Alarm
The cause of the error is displayed.
Muting Lamp Status “Alarm” is displayed if an error occurs.
Item Description
Safety Input Value Input value to the safety input.
Safety Input Status Evaluation result of the single-channel safety input. “Alarm” is dis-
played if an error occurs.
Safety Input Logical
Value
The logical value of the safety input.
Reason for Safety Input
Alarm
The cause of the error is displayed.
Item Description
Safety Output Value Output value of the safety output.
Safety Output Monitor
Value
Monitoring value of the output for the safety output.
Safety Output Status Evaluation result of the single-channel safety output. “Alarm” is dis-
played if an error occurs.
Reason for Safety Out-
put Alarm
The cause of the error is displayed.
Item Description
Dual Channel Safety
Input Evaluation
Evaluation result of the dual-channel safety input. “Alarm” is dis-
played if an error occurs.
Item Description
Safety Input Logic
Result
Output Value The output of the internal logic (as shown in the fol-
lowing figure) will be displayed.
