Maintenance Functions of DST1-series Safety I/O Terminals Section 1-7

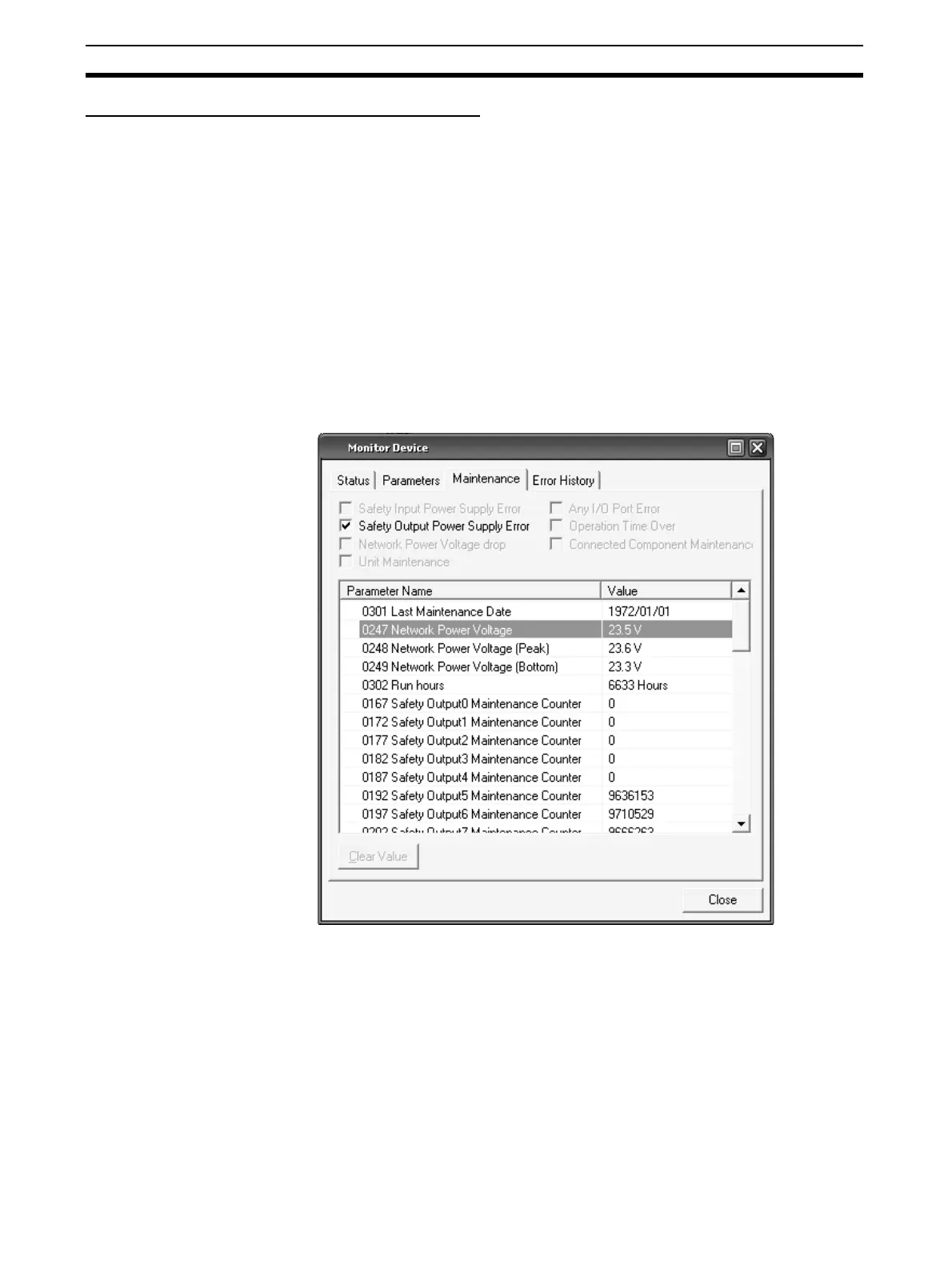

Monitoring Using the Network Configurator
The user can monitor the present, maximum, and minimum values of the net-
work power voltage in the General Status using any of the following methods:
1. Select a device and select Device - Maintenance Information from the
menu bar.
2. Select a device and click the Maintenance Information Button on the tool-
bar.
3. Right-click a device and select Maintenance Information from the pop-up
menu.
4. Select a device and select Device - Monitor from the menu bar. Click the
Maintenance Tab in the displayed window.
5. Select a device and click the Monitor Device Button on the toolbar. Click
the Maintenance Tab in the displayed window.
6. Right-click a device and select Monitor from the pop-up menu. Click the
Maintenance Tab in the displayed window.
The maximum and minimum values of the network power voltage can be
cleared. Select the maximum or minimum value and click the Clear Value
Button.
