2 - 19
2 Preparations
E5@C Digital Temperature Controllers User’s Manual (H174)
2-1 Installation
2
2-1-3 Mounting
Precautions for Correct Use
• Do not remove the connector cover from connectors that are not to be linked. The connector
covers have been mounted on the product during shipment.
• Do not add or separate the units during power-on.

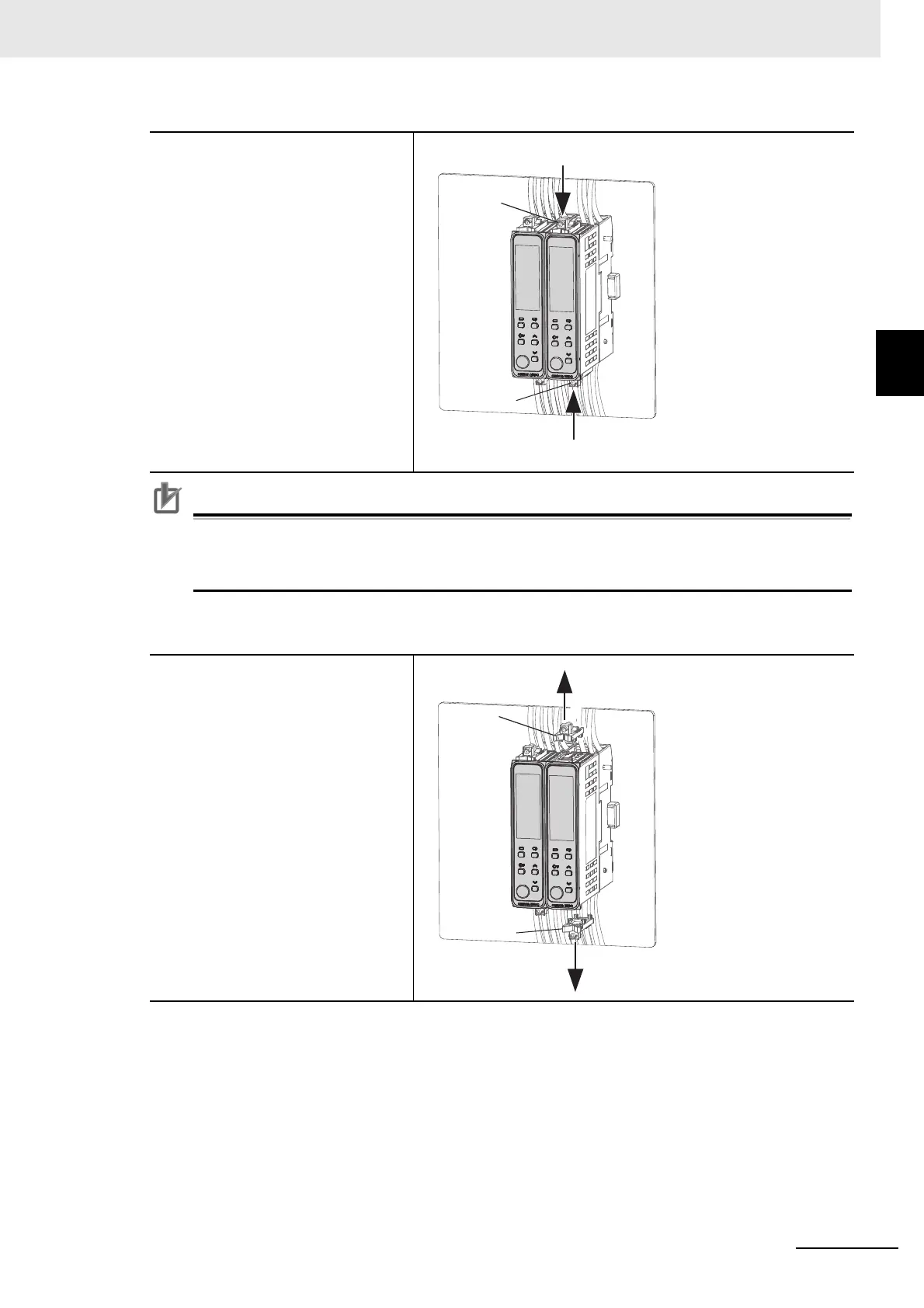

Removing from the Mounting Panel
6
Push the Adapter from the
Terminal Unit up to the panel,
and temporarily fasten the
E5DC. Tighten the two
fastening screws on the
Adapter. Alternately tighten
the two screws little by little
to maintain a balance.
Tighten the screws to a
torque of 0.29 to 0.39 N·m.
1
Remove the Adapter
attached to the Main Unit.
6
6
Adapter
Adapter
Adapter
Adapter
1
1
To Next Page
