67
F210
Setup Manual
SECTION 5
Troubleshooting and Maintenance
SECTION 5
Specifications

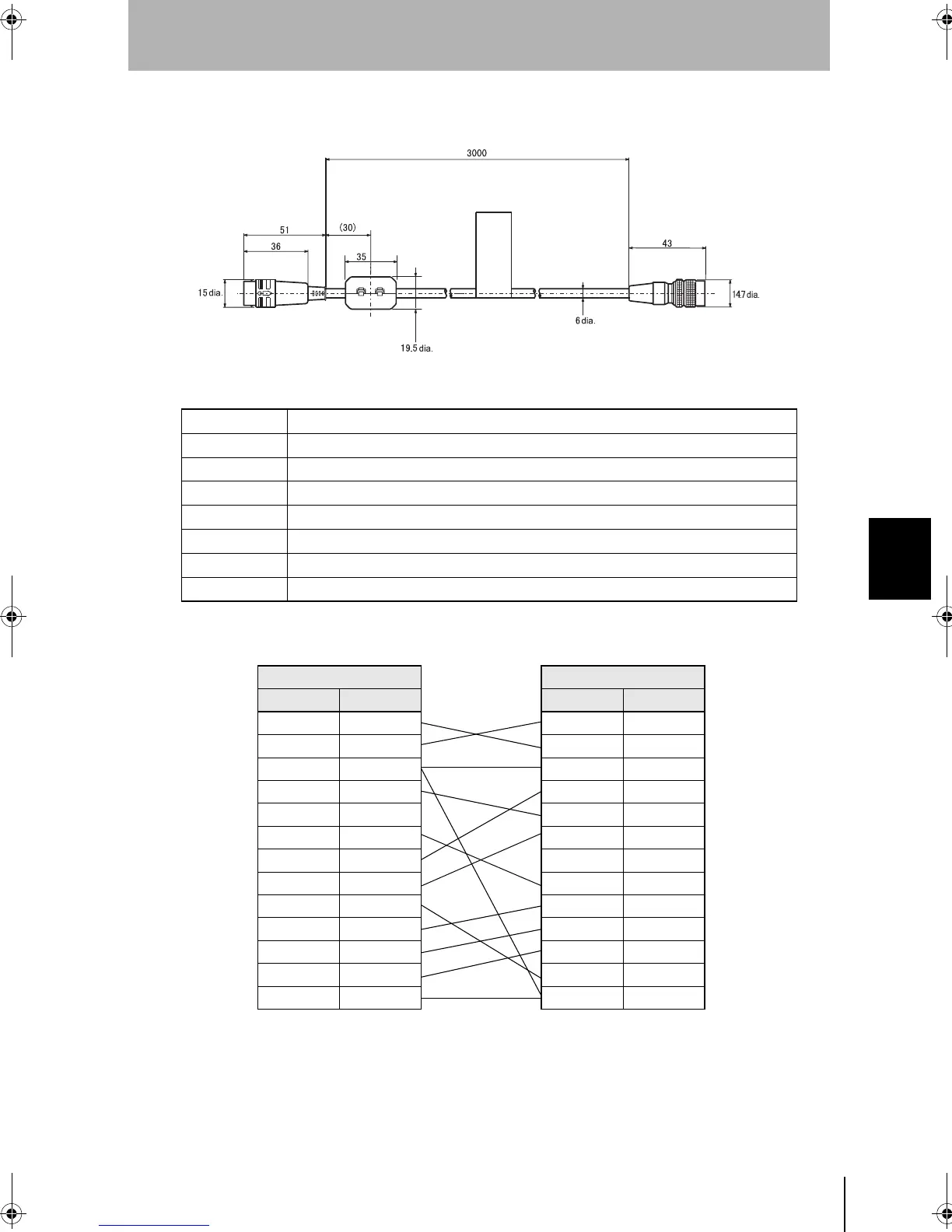

Camera Cable (For F150-S F, F160-S F Cameras)
F150-VS
Specification
Vibration resistance
10 to 150 Hz; half-amplitude: 0.15 mm; 4 times for 8 minutes each in 3 directions
Shock resistance
196m/s
2
, 3 times each in 6 directions
Ambient temperature
Operating: 0 to 50°C (with no condensation) Storage: -25 to 65°C (with no condensation)
Ambient humidity
Operating and storage: 35% to 85% (with no condensation)
Ambient environment
No corrosive gases
Materials
Cable sheathing: Heat-resistant PVC, Connector: Fiberglass-reinforced PC and PBT
Minimum bending radius
75 mm
Weight
Approx. 170g
(Unit:mm)
Controller Connector
Signal Pin
Power 1
GND 2
GND 3
VIDEO GND 4
VD 5
ESCNT1 6
VIDEO 7
HD 8
SCAN 9
ESCNT2 10
INDEX 11
TRG 12
Shell
Camera Connector
Pin Signal
1GND
2 Power
3GND
4VIDEO
5VIDEO GND
6HD
7 (Open)
8 ESCNT1
9 ESCNT2
10 INDEX
11 TRG
12 SCAN
–Shell
Connector model
Hirose PR17A-13P-12PC
(equivalent part)
Connector model
Hirose HR10A-10P-12S
(equivalent part)
