72
SECTION 5
Specifications
F210
Setup Manual
SECTION 5
Troubleshooting and Maintenance
LCD Color Monitor
F150-M05L
Specification
Power supply voltage
20.4 to 26.4 VDC
Current consumption
700mA max.
Vibration resistance
10 to 150 Hz; half-amplitude: 0.1 mm; maximum acceleration: 15 m/s2, 10 times for 8 minutes
Shock resistance
150 m/s
2
, 3 times each in 6 directions
Ambient temperature
Operating: 0 to 50°C (with no condensation) Storage: -25 to 65°C (with no condensation)
Ambient humidity
Operating and storage: 35% to 85% (with no condensation)
Ambient environment
No corrosive gases
Degree of protection
IEC60529 IP20 (in-panel)
Materials
Case: ABS/PCDisplay surface: PMMA (Acrylic)
Weight
Approx. 610g
Accessories
Four mounting brackets
Characteristics
Panel size 5.5 inches (111.36 × 83.52 mm (H × V))
Panel type TFT color liquid crystal
Resolution 320 × 240 dots
Image pitch 0.348 × 0.348 mm (H × V))
Contrast 85:1 (typical)
Viewable angle 25° up/down and 50° left/right (with a contrast ratio > 10)
Luminance 250 cd/m
2
(typical)
Backlight Cold cathode fluorescent light
Response speed 60 ms max.
Input signal NTSC composite video (1.0 V/75 Ω termination)

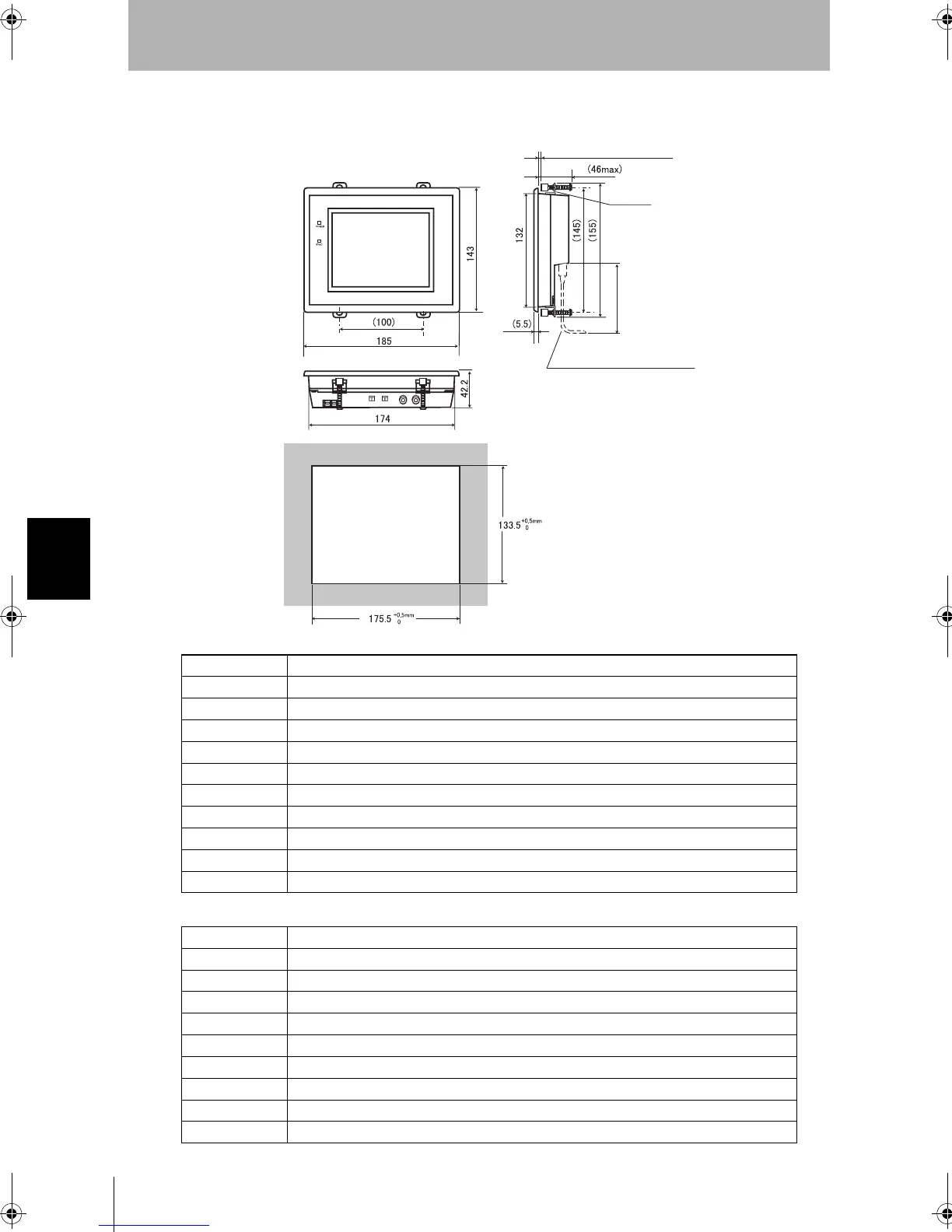

(Unit:mm)
Mounting plate thickness: 1.6 to 4.8
Mounting bracket
F150-VM Monitor Cable
Tolerance: ±1 mm
Panel opening dimensions
50 min.
F210setUP.book72ページ２００３年１月２８日 火曜日 午前１１時６分
