73
F210
Setup Manual
SECTION 5
Troubleshooting and Maintenance
SECTION 5
Specifications

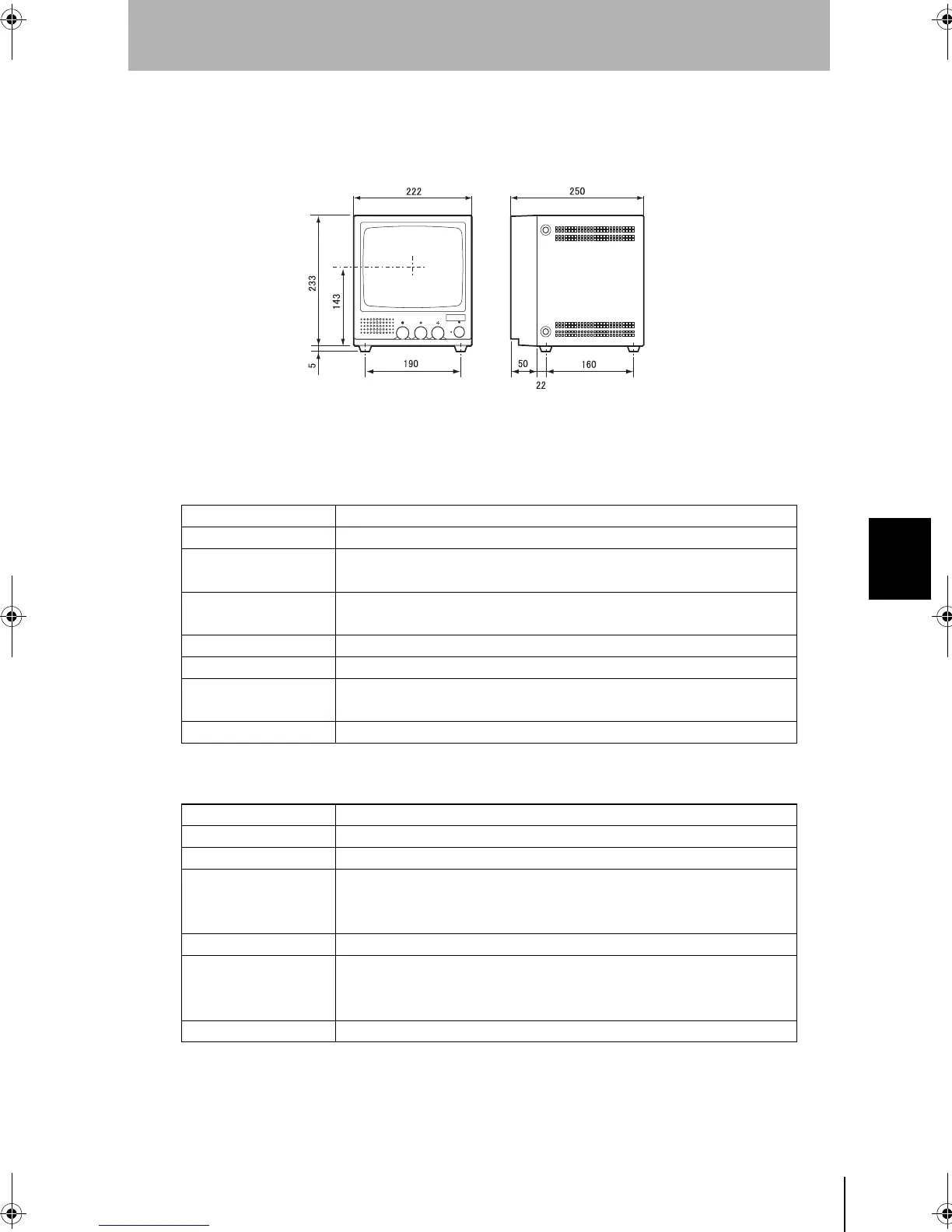

Video Monitor
F150-M09
Specification
Power supply voltage 85 to 264 VAC, 50/60 Hz
Current consumption 20 W max.
Vibration resistance 5 to 100 Hz; 0.16-mm full-amplitude or acceleration of 7.35 m/s
2
(whichever is
smaller), 6 times for 10 minutes each in 3 directions
Ambient temperature Operating: -10 to 50°C (with no condensation)
Storage: -20 to 65°C (with no condensation)
Ambient humidity Operating and storage: 10% to 90% (with no condensation)
Ambient environment No corrosive gases
Materials Front: ABS plastic
Metal part: SECC (galvanized steel sheet)
Weight Approx. 4.5kg
Characteristics
CRT size 9 inch (164 × 123 mm (H × V))
CRT type Monochrome CRT
Resolution 800 TV lines min. (at center)
Method Number of scanning lines: 600
Horizontal frequency: 15.75 kHz
Field frequency: 60 Hz
I/O impedance 75 Ω, high impedance (selectable)
I/O level and polarity Composite image signal:1 V (peak to peak)
Image: 0.7 V (peak to peak), positive
Synchronization: 0.3 V (peak to peak), negative
Input signal NTSC composite video (1.0 V/75 Ω termination)
(Unit:mm)
F210setUP.book73ページ２００３年１月２８日 火曜日 午前１１時６分
