Omron G9SP Series

80
Connector Function Blocks Section 3-7
Optional Output
Settings
The number of outputs can be increased on the In/Out Setting Tab Page in the
function block property dialog box.

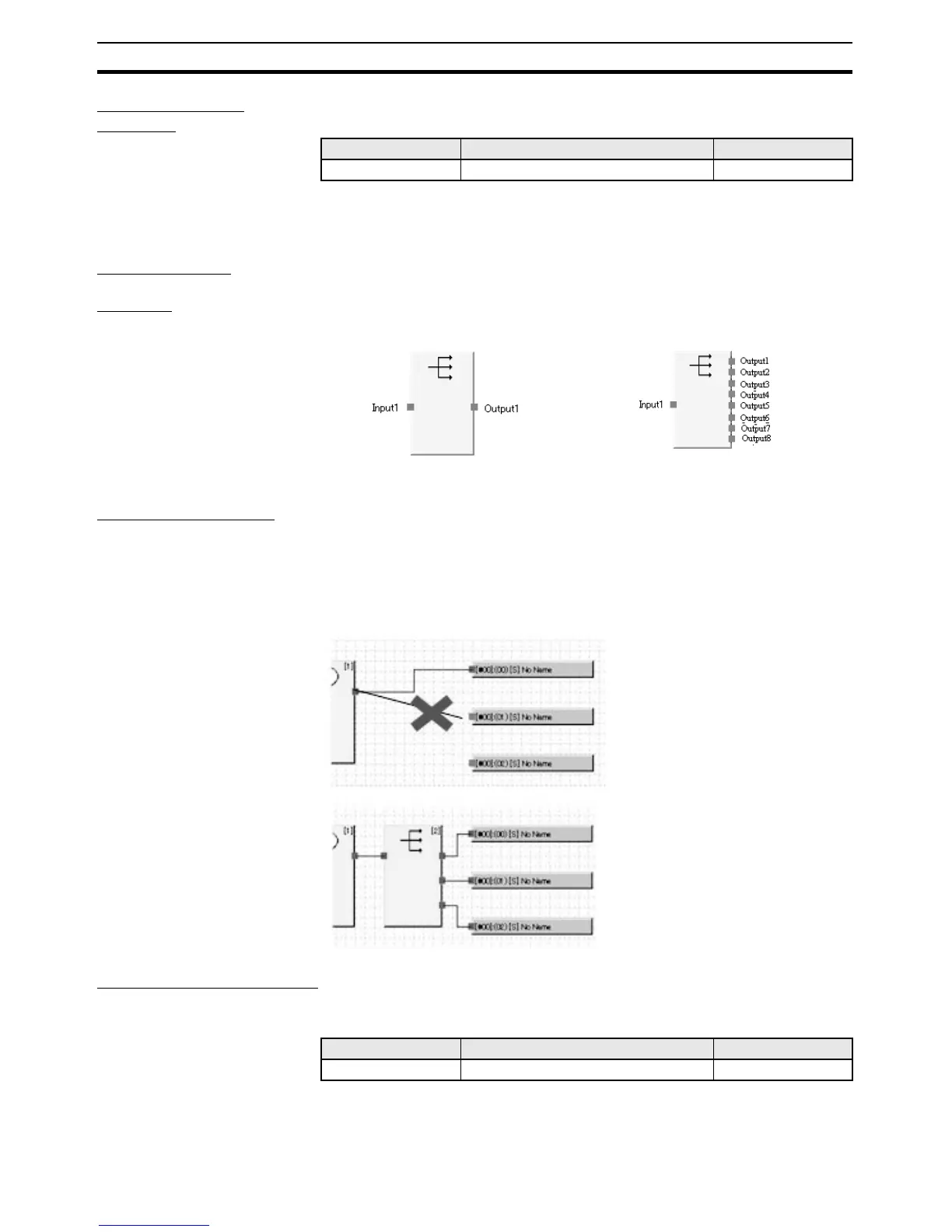

3-7-2 Routing
Basic Function Used for routing an input signal to multiple signals.
Diagram
General Description
The Routing function block routes one input signal to a maximum of eight out-
put signals. It is used to output a signal to more than one output tag.
With an G9SP-series Controller, it is not possible to make a direct connection
from one signal to two output tags. To do so, distribute the signal by using a
Routing function block.
Optional Output Settings
The number of outputs can be increased on the In/Out Setting Tab Page in the
function block property dialog box.
Parameter Setting range Default setting
Number of I/O 1 to 8 1
Default Maximum Number of Outputs
Parameter Setting range Default setting
Number of outputs 1 to 8 1
