Omron G9SP Series Reference Manual

79
Connector Function Blocks Section 3-7
3-7 Connector Function Blocks
×: No, ❍: Yes

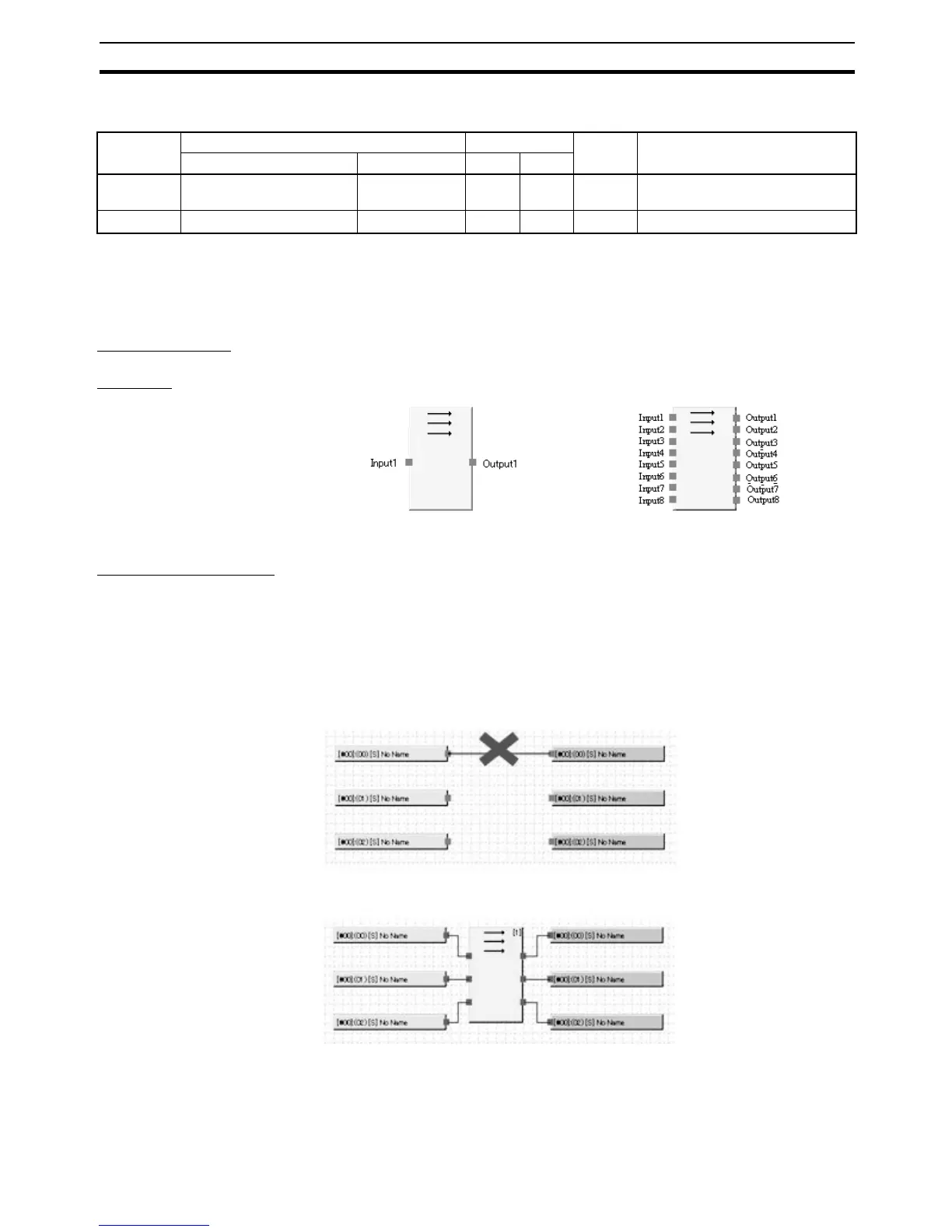

3-7-1 Multi Connector
Basic Function The Multi Connector function block outputs the status of the input signals.
Diagram
General Description
The Multi Connector function block outputs input signals (up to 8 inputs) to
output signals (up to 8 outputs).
The input signals and output signals are associated one-to-one from number
1 to 8. The status of other input signals have no effect.
With an G9SP-series Controller, it is not possible to make a direct connection
from an input tag signal to an output tag. To do so, connect the signal by using
a Multi Connector function block.
Section Function Blocks Support Page Compatible unit versions
Notation in function list Name G9SP NE1A
3-7-1 Multi Connector Multi Connector
❍❍
79 NE1A-series Controllers with unit
version 1.0 or later
3-7-2 Routing Routing
❍❍
80
Default Maximum Number of I/O

Omron G9SP Series Specifications

General

Type	Safety Controller
Programming Software	Sysmac Studio
Supply Voltage	24 VDC
Input Voltage	24 VDC
Operating Temperature	-10 to 55°C
Protection Rating	IP20
Number of Safety Outputs	4
Safety Category	Category 4
Communication Interfaces	Ethernet/IP
Programming	Function block programming
Vibration Resistance	10 to 55 Hz
Weight	Varies depending on model
