Omron G9SP Series Reference Manual

34
Timer/Counter Function Blocks Section 3-4
3-4 Timer/Counter Function Blocks
×: No, ❍: Yes

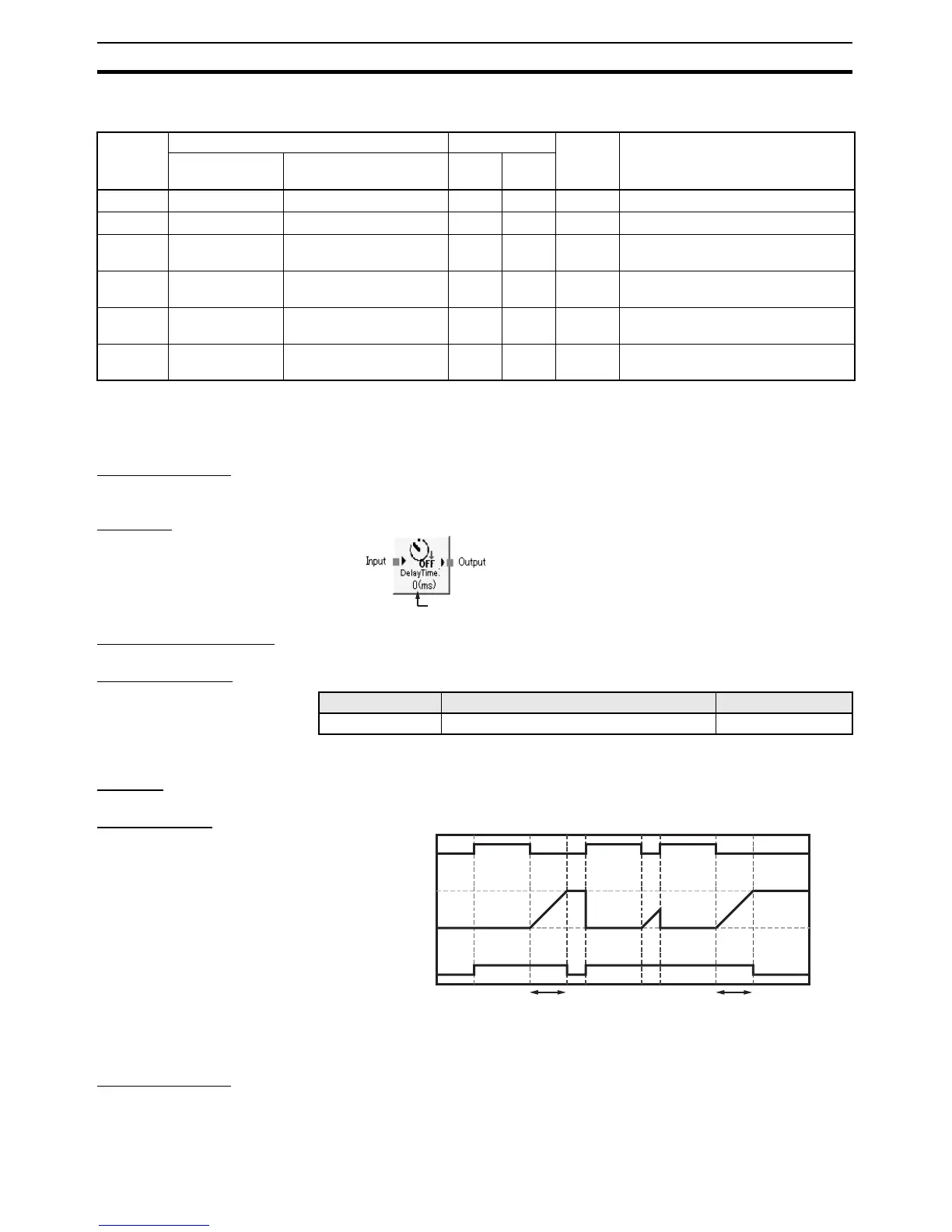

3-4-1 OFF-delay Timer
Basic Function Time OFF-delay Timer function block performs a timer operation for an OFF
delay.
Diagram
General Description The OFF-delay Timer function block performs an OFF-delay timer operation.
Set Parameters
The delay time must be equal to or greater than the cycle time.
Startup The timer is restarted.
Timing Chart
3-4-2 ON-delay Timer
Basic Function Time ON-delay Timer function block performs a timer operation for an ON
delay.
Section Function Blocks Support Page Compatible unit versions
Notation in
function list
Name G9SP NE1A
3-4-1 Off-Delay Timer Off-Delay Timer
❍❍
34
3-4-2 On-Delay Timer On-Delay Timer
❍❍
34
3-4-3 Pulse Generator Pulse Generator
❍❍
35 NE1A-series Controllers with unit
version 1.0 or later
3-4-4 Counter Counter
❍❍
36 NE1A-series Controllers with unit
version 1.0 or later
3-4-5 Up-Down
Counter
Up-Down Counter
❍ ×
38
3-4-6 Serial-Parallel
Converter
Serial-Parallel Converter
❍ ×
40
The set value is dis
p
la
y
ed.
Parameter Setting range Default setting
Delay Time 0 ms to 300 s in 10-ms increments 0 ms
Input
Output
Enable
Set Value
Timer Value
0
IDLE to RUN
OFF-dela
y
time
OFF-dela
y
time
