Function Block Editing Section 1-2

Fault Present

Fault Present is a diagnostic status bit that is enabled by selecting a check

box located on the In/Out Setting or Output Point Tab Page. This bit turns ON

when the function block detects incorrect logic or other errors in the input

data. An OR of the Fault Present signal of each function block that is used in

the program is stored in the Function Block Error Flag in the Error Status of

the I/O tag.

Example: Safety Gate Monitoring Function Block

1-2-3 Comments

Comments can be added to function blocks (up to 12 single-byte alphanu-

meric characters or 4 single-byte kana characters).

The comments are displayed in the Logic Editor (programming window) and

configuration reports.

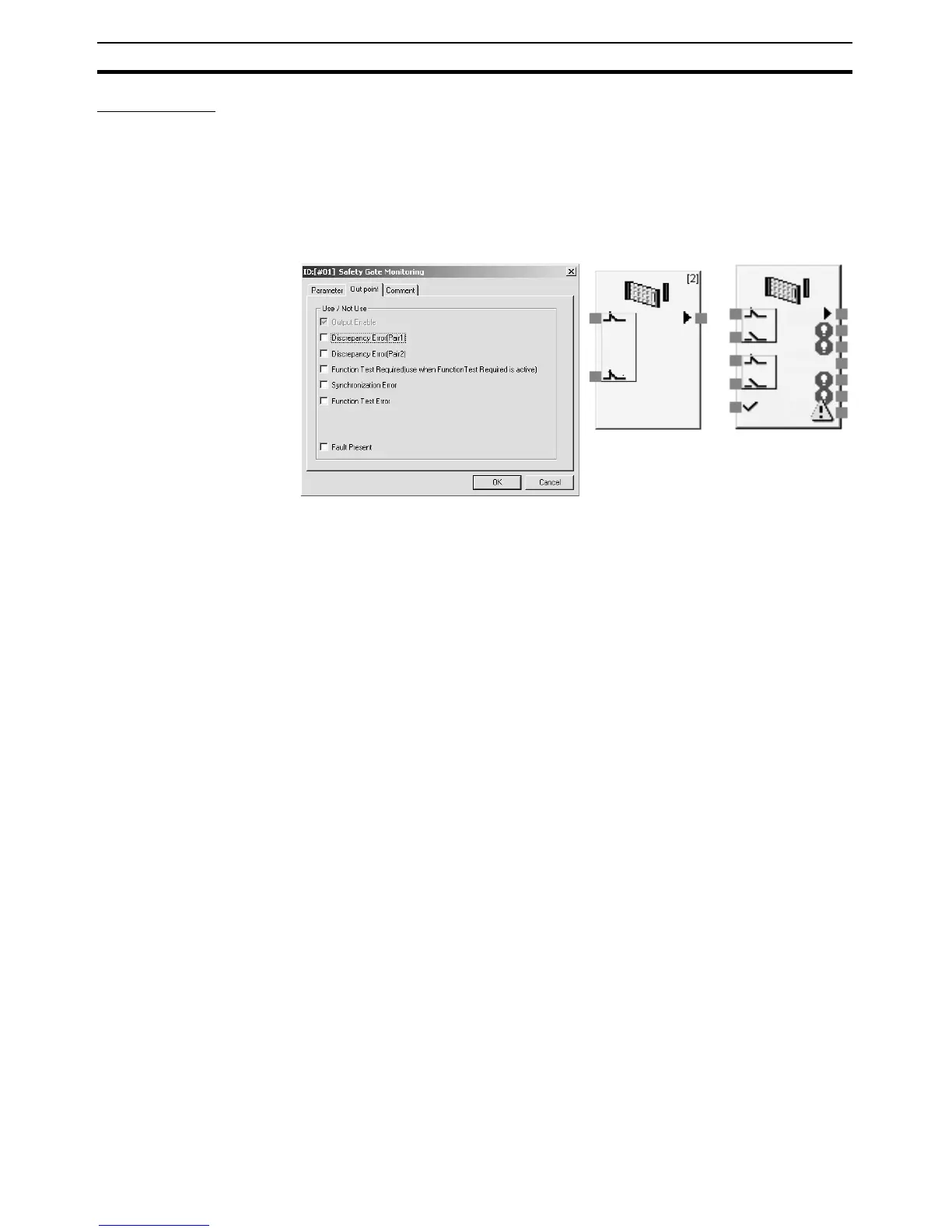

Out Point Tab Page in the Safety Gate

Monitoring Function Block Editing Dialog

Safety Gate

Monitoring Function

Block with Default

Settings

Safety Gate Monitorin

Function Block with

Maximum Inputs and

Outputs Enabled
