Omron G9SP Series Reference Manual

41
Timer/Counter Function Blocks Section 3-4
Startup The count value is reset at the start of operation. If the Input signal is ON, the
counter will not operate. The Input signal status must change from OFF to ON
before the counter will start operation.
Set Parameters

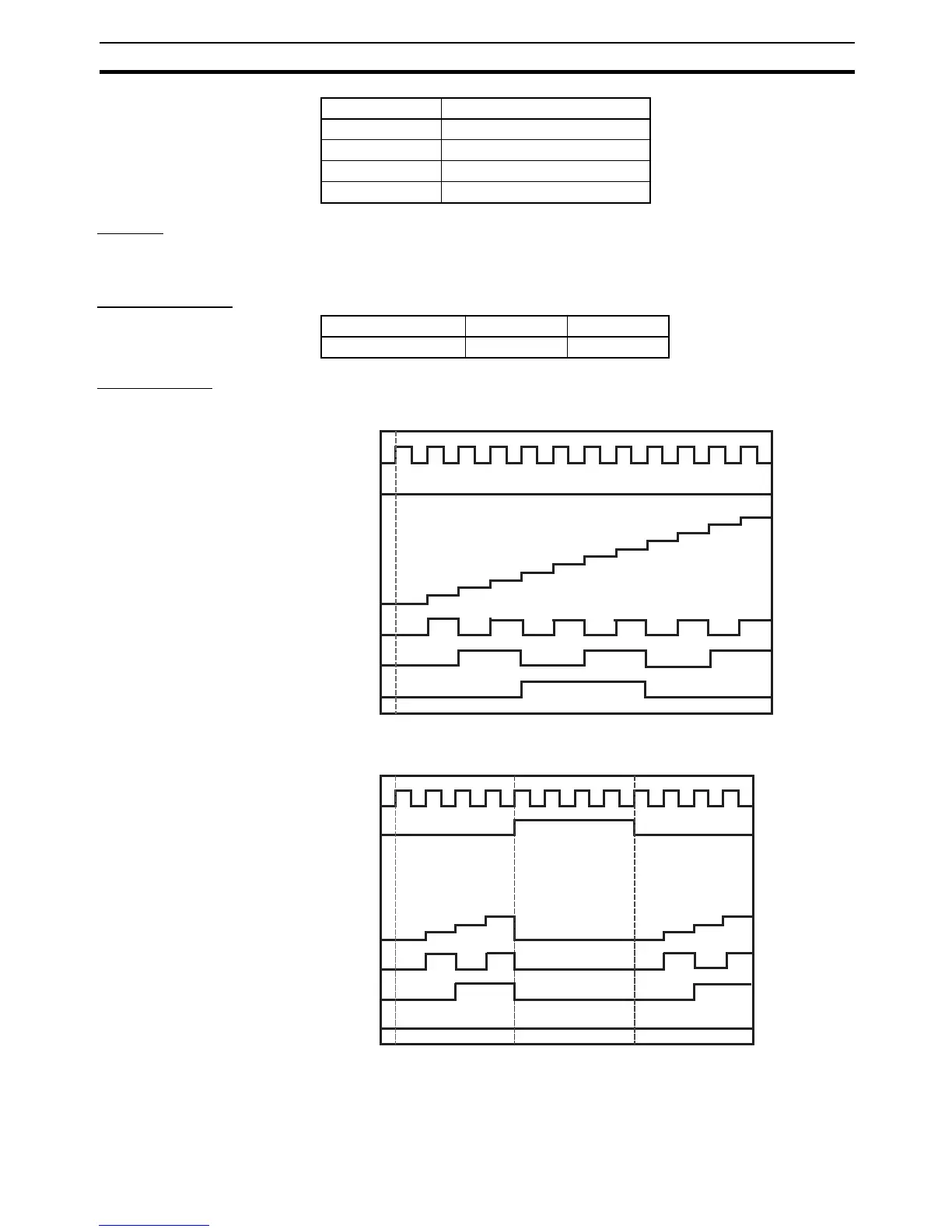

Timing Chart
Without Reset Input
With Reset Input
Output 5 Bit 4 of the count value
Output 6 Bit 5 of the count value
Output 7 Bit 6 of the count value
Output 8 Bit 7 of the count value
Output signal Output value
Parameter Setting range Default
Output Points 1 to 8 8
IDLE to RUN
Input
Reset
Output 1
Output 2
Output 3
Counter
(internal)
IDLE to RUN
Input
Reset
Output 1
Output 2
Output 3
Counter
(internal)

Omron G9SP Series Specifications

General

Type	Safety Controller
Programming Software	Sysmac Studio
Supply Voltage	24 VDC
Input Voltage	24 VDC
Operating Temperature	-10 to 55°C
Protection Rating	IP20
Number of Safety Outputs	4
Safety Category	Category 4
Communication Interfaces	Ethernet/IP
Programming	Function block programming
Vibration Resistance	10 to 55 Hz
Weight	Varies depending on model
