Omron G9SP Series

19
Logic Function Blocks Section 3-3

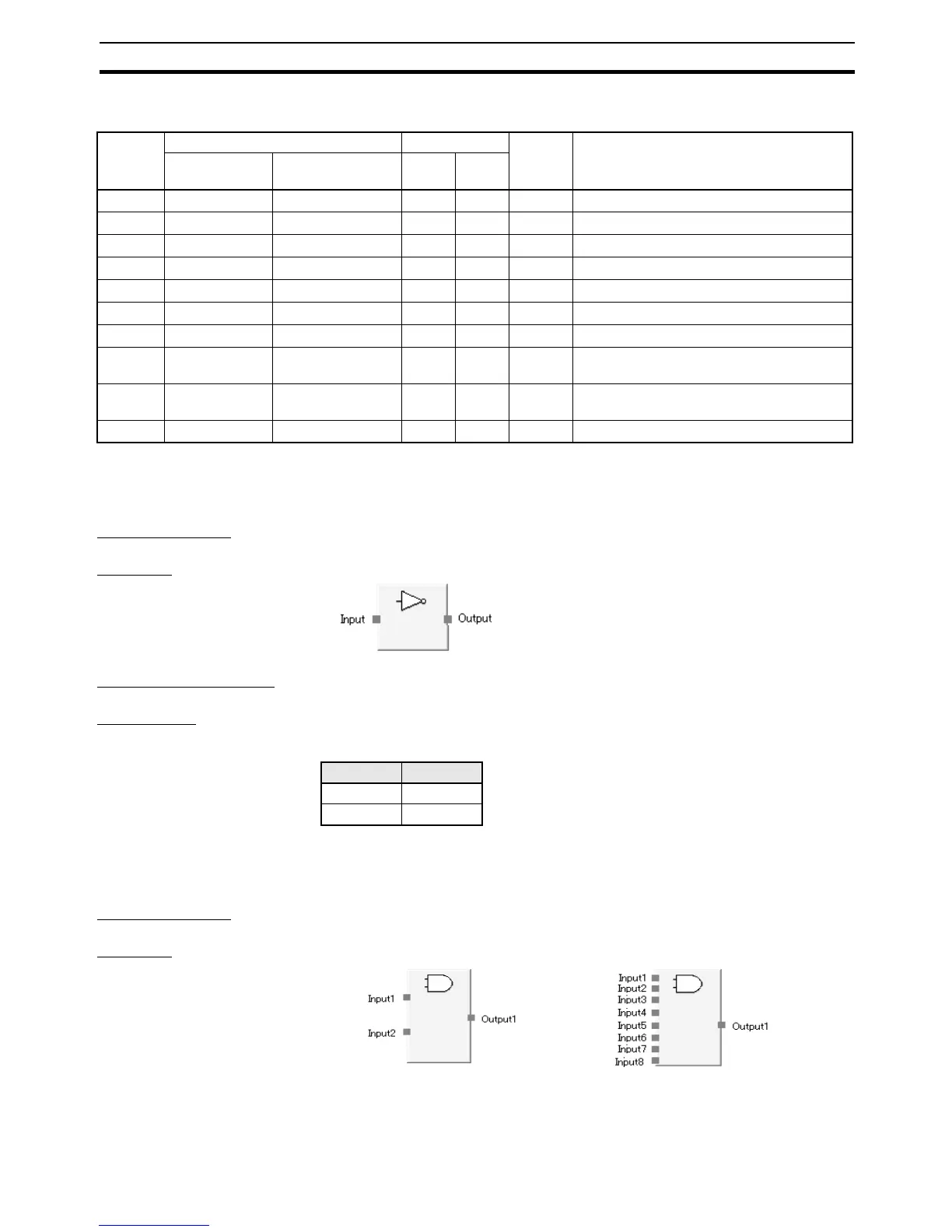

3-3 Logic Function Blocks
×: No, ❍: Yes
3-3-1 NOT
Basic Function The output will be the complement of the input.
Diagram
General Description The output will be the complement of the input.
Truth Table
Truth Table for NOT
Evaluation
0: OFF, 1: ON
3-3-2 AND
Basic Function An AND of the input signals will be output.
Diagram
Section Function Blocks Support Page Compatible unit versions
Notation in
function list
Name G9SP NE1A
3-3-1 NOT NOT
❍❍
19
3-3-2 AND AND
❍❍
19
3-3-3 OR OR
❍❍
22
3-3-4 NAND NAND
❍ ×
24
3-3-5 NOR NOR
❍ ×
26
3-3-6 EXOR Exclusive OR
❍❍
28
3-3-7 EXNOR Exclusive NOR
❍❍
28
3-3-8 RS-FF Reset Set Flip-flop
❍❍
29 NE1A-series Controllers with unit version
1.0 or later
3-3-9 Comparator Comparator
❍❍
30 NE1A-series Controllers with unit version
1.0 or later
3-3-10 Comparator2 Comparator 2
❍ ×
32
Input 1 Output 1
01
10
Default Maximum Number of Inputs
