77
Reset and Restart Function Blocks Section 3-6

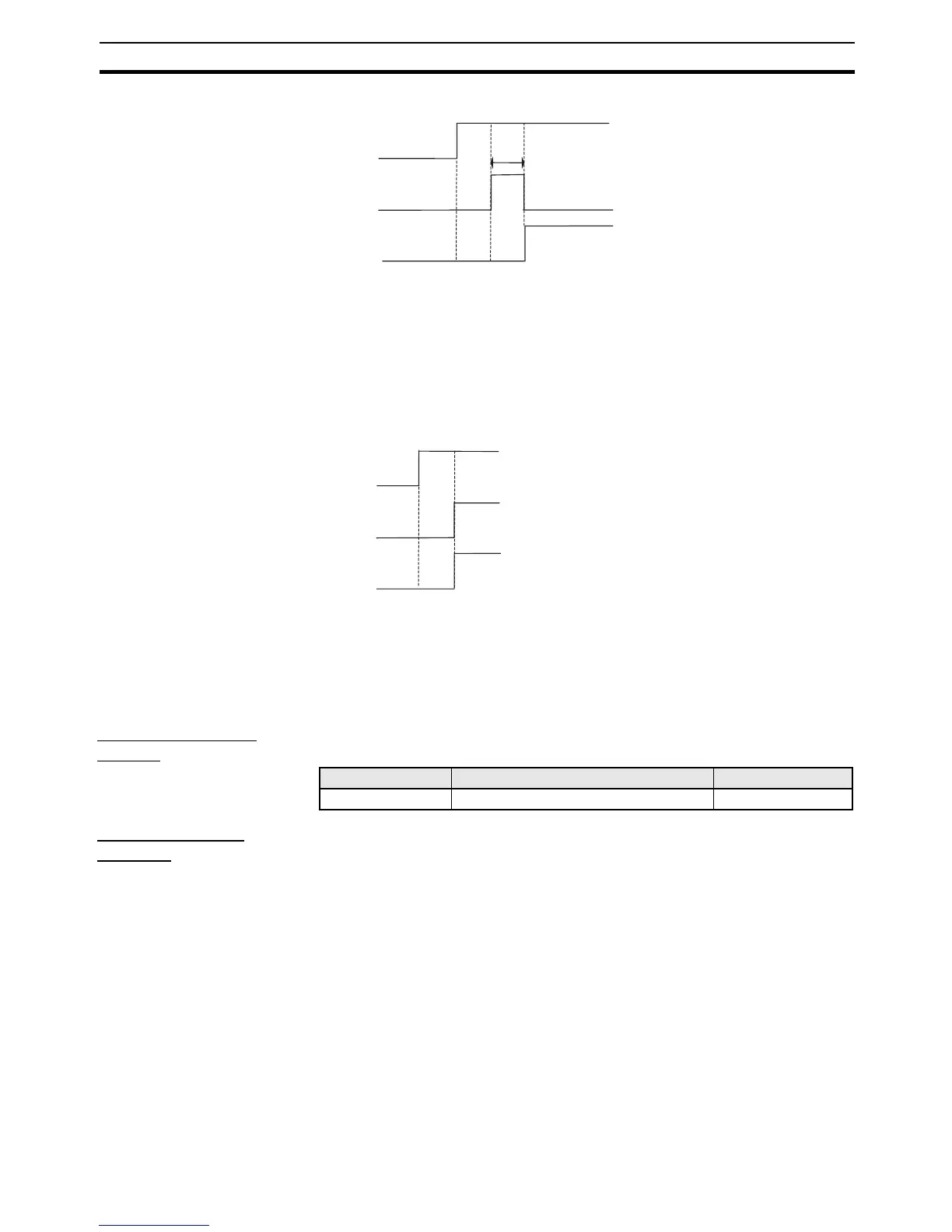

Low-High-Low
The reset input must turn OFF after 350 ms or longer has elapsed from when
the reset signal turns from OFF to ON once the Monitored Input and all
enabled Optional Inputs turn ON. (Resetting is disabled if the Reset signal
turns ON in the same cycle as the cycle in which the Monitored Input and
enabled Optional Input turn ON. Resetting is enabled if the signal turns OFF
in the same cycle and ON in the next cycle, and reset will be performed if the
conditions are satisfied.)
Rising Edge
The Reset input signal must change from OFF to ON after the Monitored Input
and all enabled Optional Inputs turn ON. (Resetting is disabled if the Reset
signal turns ON in the same cycle as the cycle in which the Monitored Input
and enabled Optional Input turn ON. Resetting is enabled if the signal turns
OFF in the same cycle and ON in the next cycle, and reset will be performed.)
Number of Inputs
Setting
The number of inputs can be increased on the In/Out Setting Tab Page in the
function block property dialog box.
Optional Output
Settings
The outputs shown below can be used in the program. To enable either of
these outputs, select the check box on the Output Point Tab Page of the func-
tion block properties dialog box.
• Static Release
• Reset Required Indication
Monitored
Input
Reset
Output
Enable
350 ms min.
Monitored
Input
Reset
Output
Enable
Parameter Setting range Default setting
Number of inputs 2 to 8 (Optional Input Settings) 2
To Next Page
