2-5SectionImage and Library Data
108

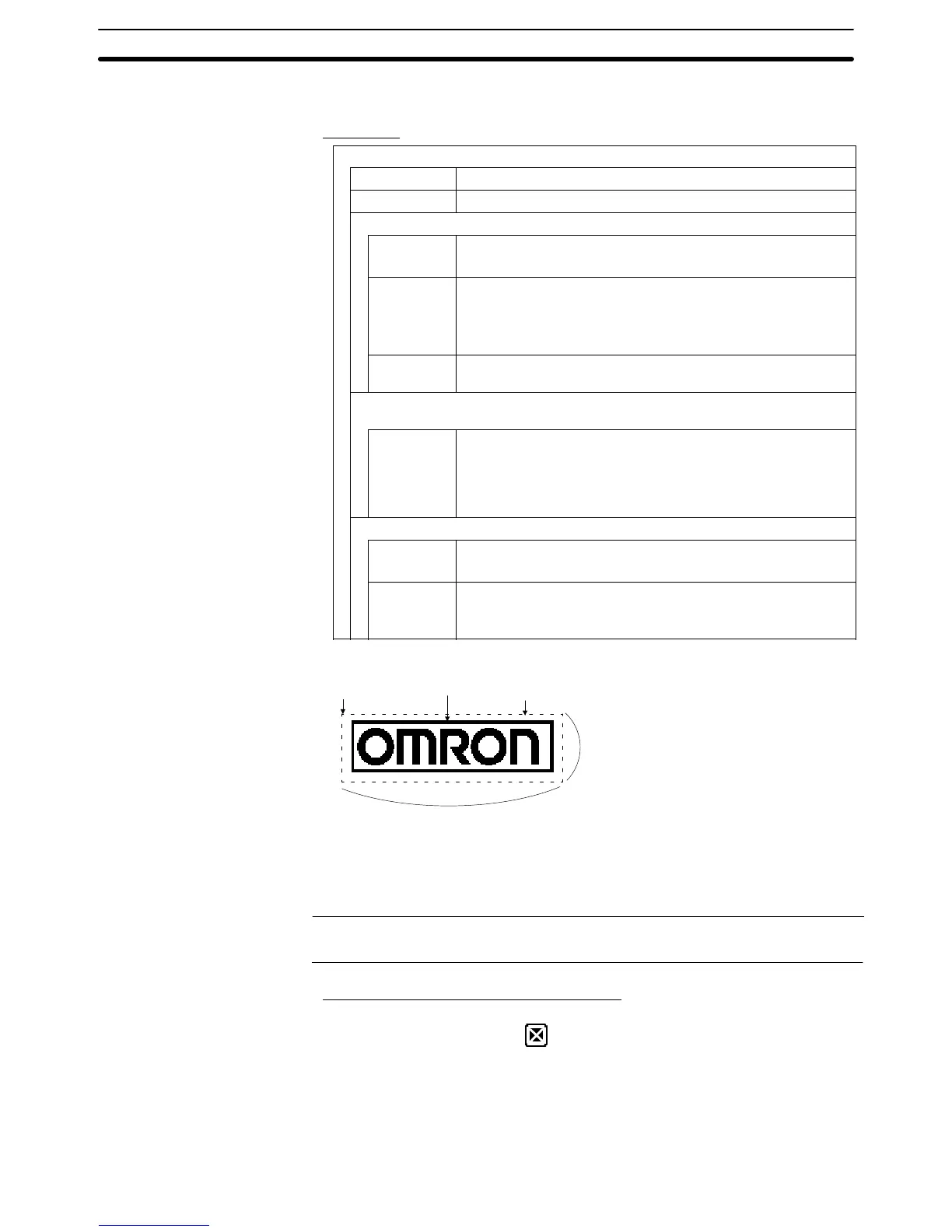

The properties of image data and their relationship with the method of display
are indicated below.
Properties
General
Position Coordinates of the top left corner of the image data
Size Size of the image data
Fixed code (The image code itself is specified directly.)
Code Image/library code of the image data
0001 to 0FFF
H
Mode
Color mode of the image data (specified with the image editor)
(The NT21, NT31 and NT631 always run in 2 Colors
mode.)
2 Colors/8 Colors
Comment Comment assigned to the image data
(specified with the image editor)
Indirect specification
(The image code is specified indirectly via a numeral memory table entry.)
table entry
number
Number of the numeral memory table entry that contains the
image code of the image you want to display.
(Image codes are hexadecimal, so set the numeral memory
table entry’s Storage Type to binary. Also, be sure to write the
image code number in hexadecimal.)
Color (for NT31C and NT631C only valid when 2 Colors is set for Mode.
Foreground Display color of the image data
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White
Background Background color of the image data
Black/Blue/Red/Magenta/Green/Cyan/Yellow/White/
Transparent
Position
(top left corner
of image data)
Foreground
color
Background
color
Size (Y direction)
Size (X direction)
The blank area specified during creation
of the image data is also included in the
size.
If there is a blank area surrounding the image data, this is also included in the
image. Bear this in mind when specifying a background color in the 2 Colors
mode.
Reference: When color data is pasted to 2 Colors mode image data, all the colors except
black become white.
When an Unregistered Code Is Specified
When a code for which no image data is registered is specified, the symbol indi-
cating an unregistered code (
) is displayed on the Support Tool, but on the
PT nothing is displayed.
Image data have no input function.
Image data have no output function.
Image data have no data processing function.
Display Functions
Input Functions
Output Functions
Processing Functions
