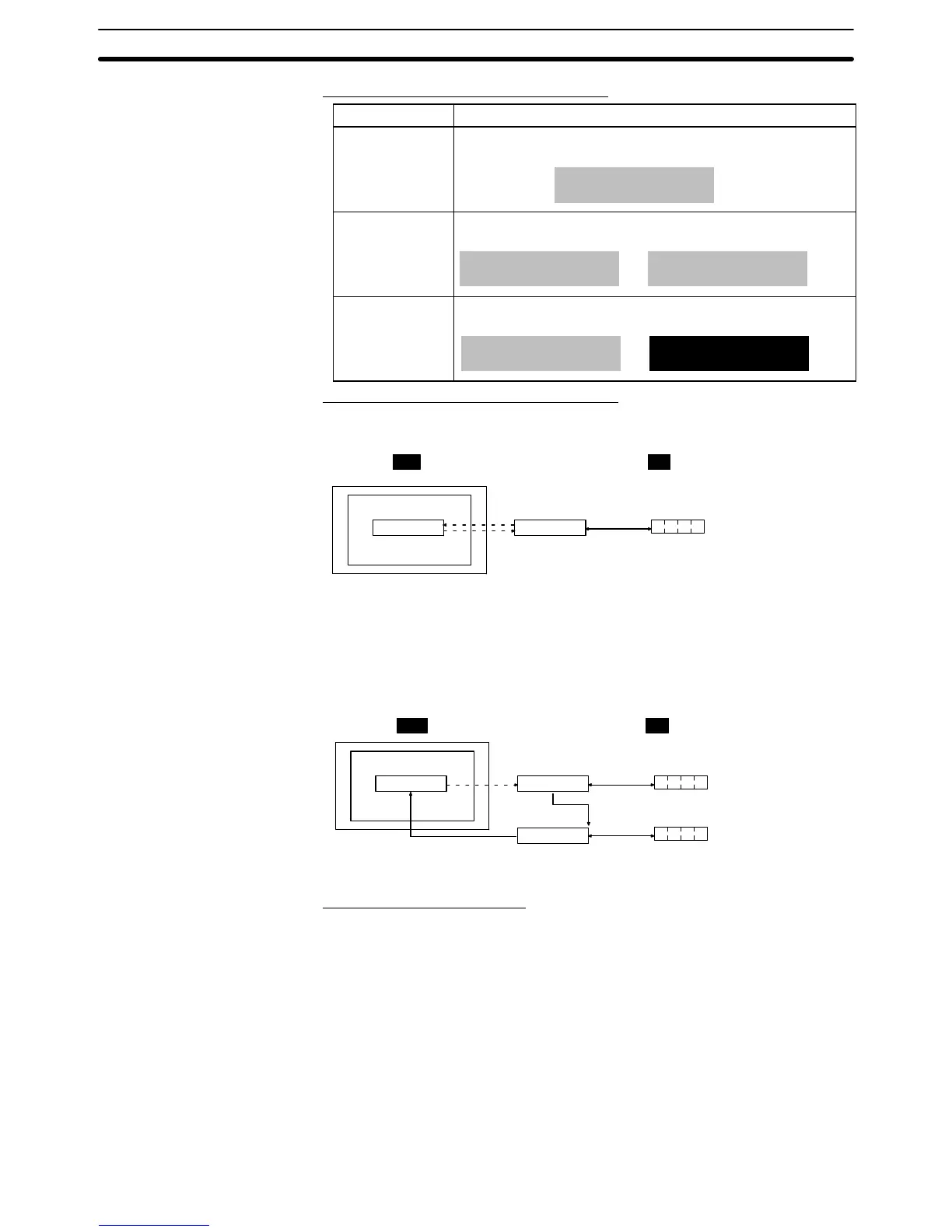

2-8SectionNumeral Display
143
Display Attributes And Drawing Result
Attribute Drawing Result
Standard The numeral display is displayed with the specified foreground
color and background color.
12345678
Flash Repeated alternation of the standard display and no display.
⇔
12345678
Inverse Flash Repeated exchange of the foreground color and background
color.
12345678
⇔
12345678
Direct Reference and Indirect Reference
Direct reference is a method whereby the memory table entry whose contents
are to be displayed is specified directly.
DM0100
0 0 6 2 0 0 6 2
0062
PC
PT
Direct
reference
Numeral memory
table entry 18
Allocated word
(numeral memory table entry 18)
In indirect reference, the numeral memory table entry whose contents are to be
displayed is not specified directly. The contents of the specified numeral
memory table entry (a numeric value) are regarded as the number of a numeral
memory table entry, and the contents of this numeral memory table entry are dis-
played. Note that more processing time is required for indirect reference that for
direct reference.
Allocated word
(numeral memory table entry 62)
DM0100
7 7 7 7
0 0 6 2
0062
7 7 7 7
7777
DM0200
PC
PT
Indirect
reference
Numeral memory
table entry 18
Allocated word
(numeral memory table entry 18)
Numeral memory
table entry 62
Number of Digits Displayed
All contents of numeral memory table entries are stored as integers. To display a
numeric value that has a decimal fraction, set the decimal setting to 1 or higher to
specify the number of places after the decimal point, then a decimal point is auto-
matically inserted.
Note that if the number of digits of the numeric value is greater than the total of
the settings for Integer and Decimal, an error occurs and ∗ is displayed for all the
digits.
An example is given below (here, the check mark is assumed to be set for Zero
Suppression).
Example: Displaying 123456
• Setting for Integer = 8; setting for Decimal = 0:
Resulting display: 00123456
To Next Page
