Omron NX-ECC201 User Manual

6 - 19
6 Installation
NX-series EtherCAT Coupler Unit User’s Manual (W519)
6-1 Installing Units
6
6-1-9 Removing Units

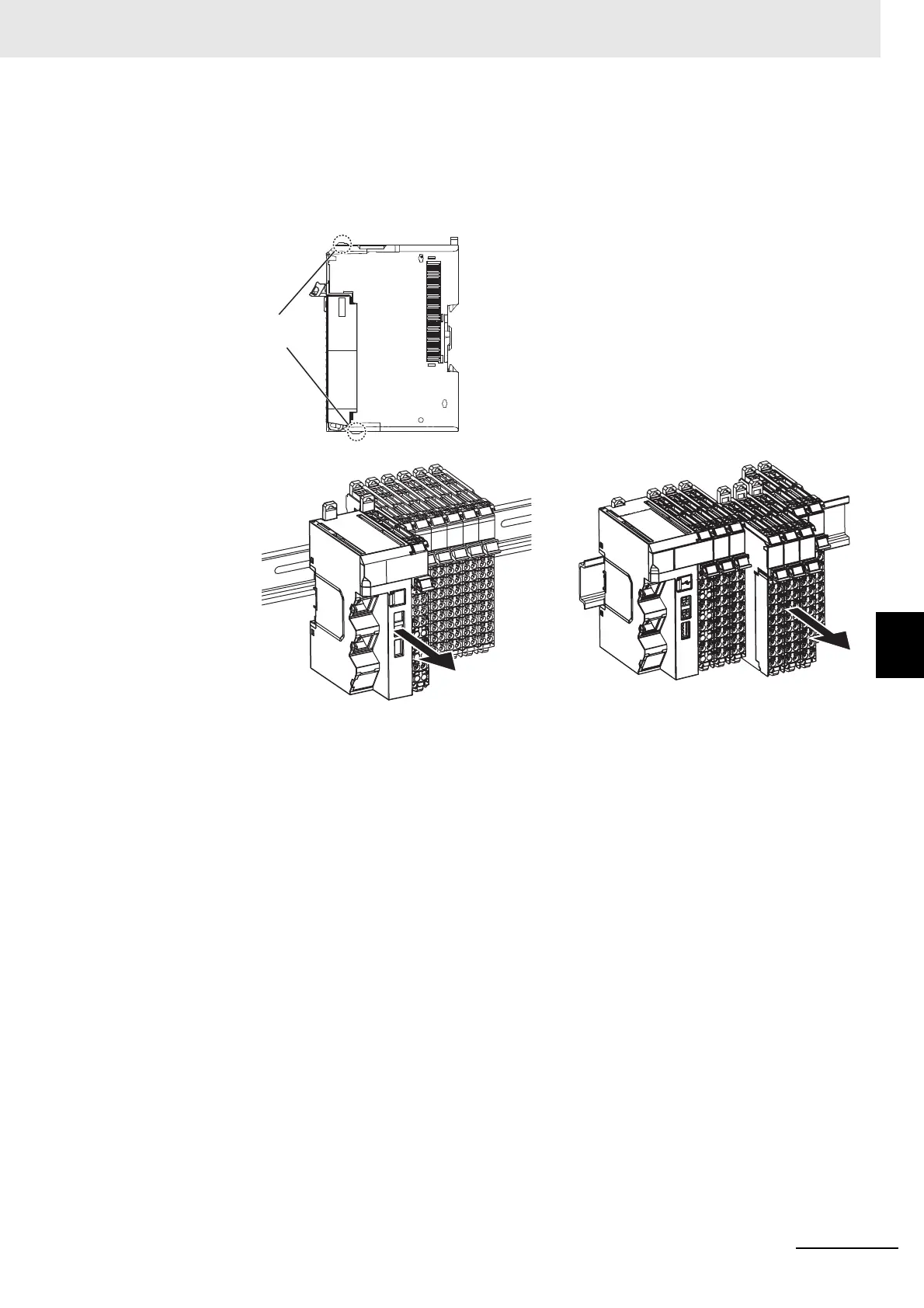

2 Remove the Unit with either (a) or (b) below.
(a) For an EtherCAT Coupler Unit, place your fingers on the protrusions on the EtherCAT Cou-
pler Unit and pull it straight forward.
(b) For an NX Unit, place your fingers on the protrusions on more than one NX Unit, including
the NX Unit to remove, and pull the NX Units straight forward.
<EtherCAT Coupler Unit>
<NX Unit>
Protrusion for
removing the Unit
