6 - 21
6 Installation
NX-series EtherCAT Coupler Unit User’s Manual (W519)
6-1 Installing Units
6
6-1-10 Assembled Appearance and Dimensions

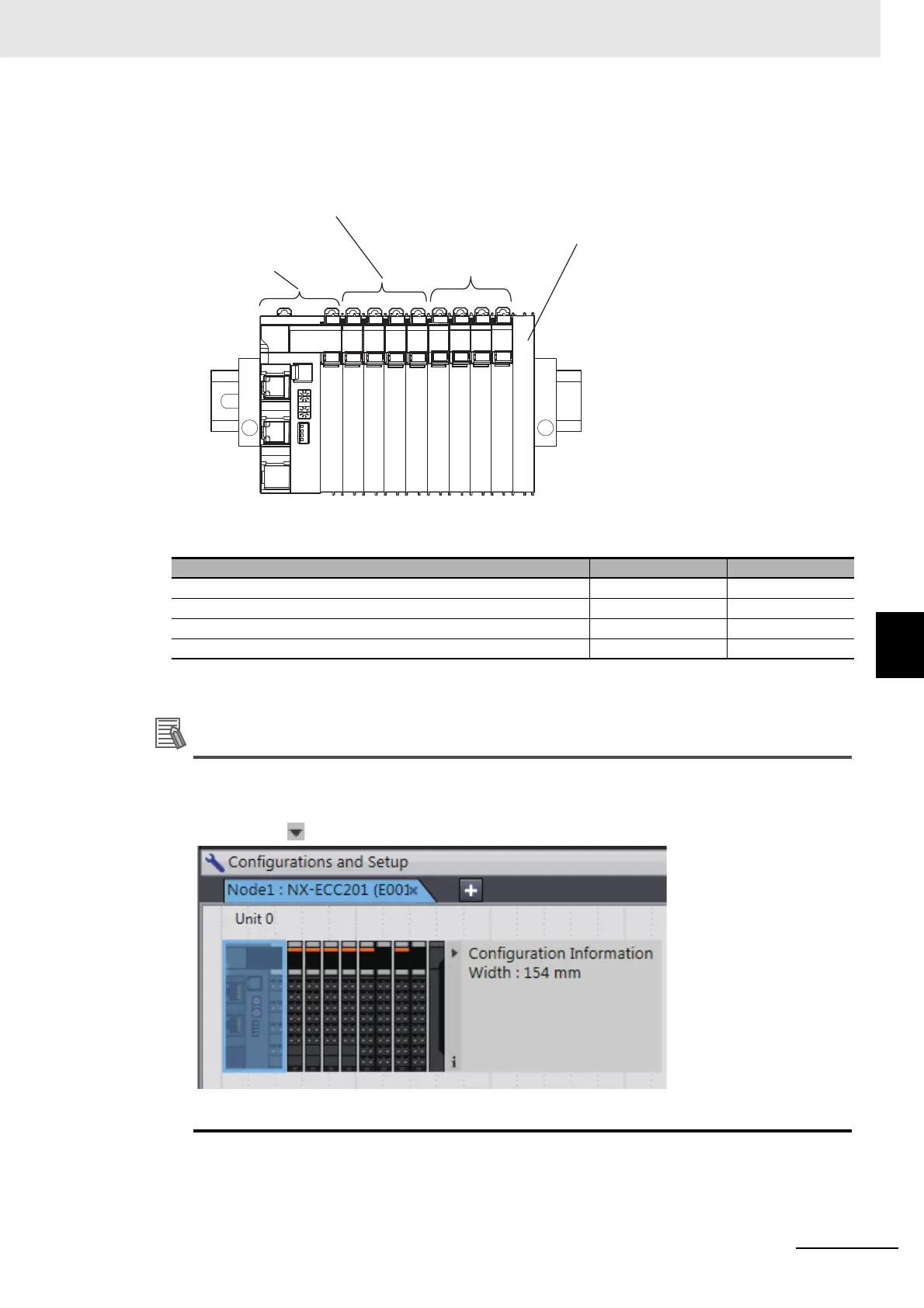

 Calculation Example for the Configuration Width of an EtherCAT Slave Termi-
nal
The widths of the Units in the example EtherCAT Slave Terminal configuration and the total configu-
ration width are given below.
Additional Information
You can check the width of a Slave Terminal when you create the Unit configuration on the Edit
Slave Terminal Configuration Tab Page on the Sysmac Studio. You can display the width on the
right of the Slave Terminal on the Edit Slave Terminal Configuration Tab Page on the Sysmac
Studio. Click to display the width.
Name Model Unit width
EtherCAT Coupler Unit NX-ECC201 46 mm
NX Units: Digital Input Units NX-ID3317 12 mm × 4 Units
NX Units: Temperature Input Units NX-TS3101 24 mm × 2 Units
End Cover NX-END01 12 mm
Total: W = 46 + (12 × 4) + (24 × 2) + 12 = 154 mm
EtherCAT Coupler Unit
End Cover
NX Units: Digital Input Units
with 4 inputs each
NX Units:
Temperature Input Units
with 4 inputs each
