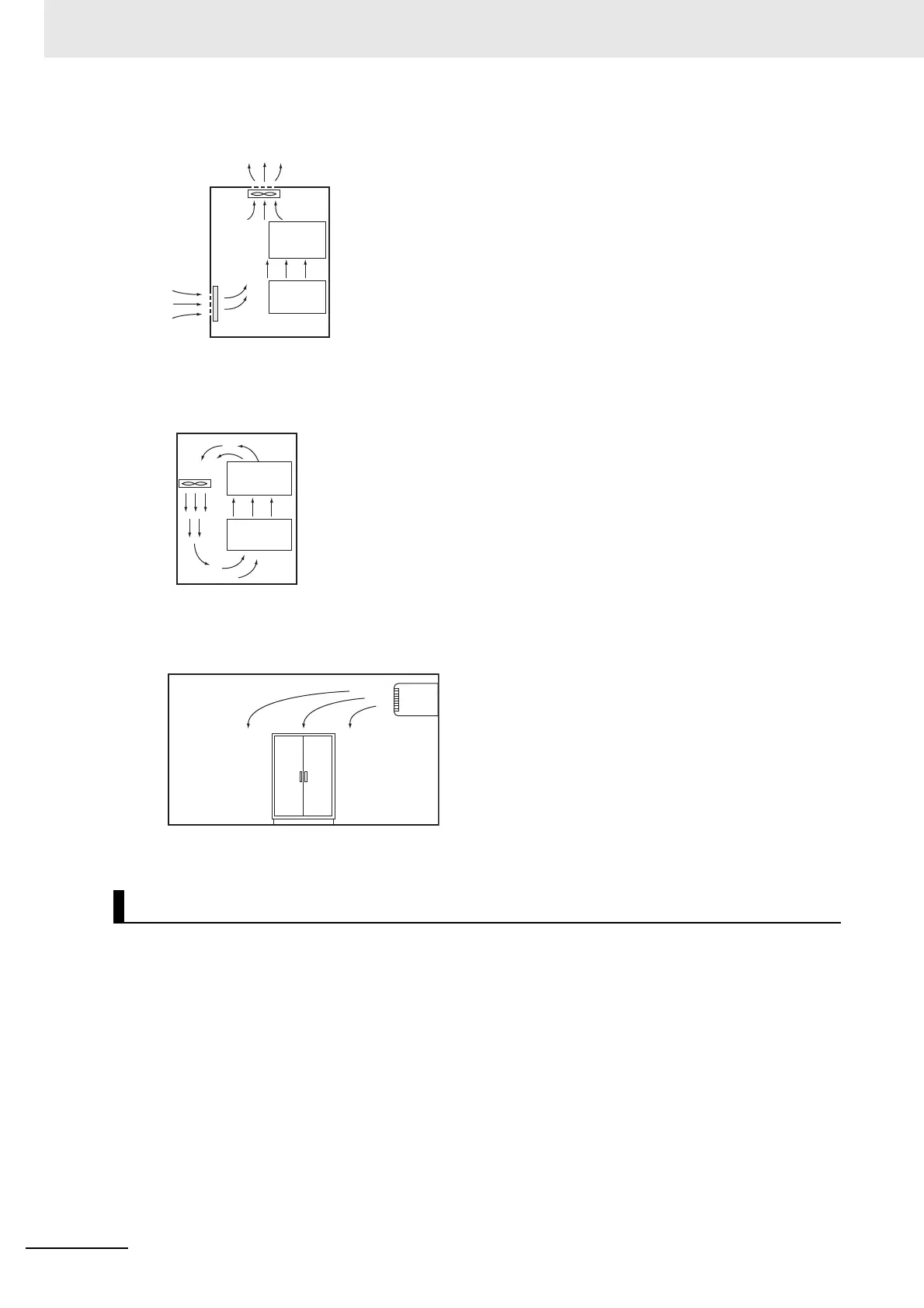

 Forced Ventilation by Fan at Top of Panel
 Forced Air Circulation by Fan in Closed Panel
 Room Cooling (Cooling the Entire Room Where the Control Panel Is Located)
The EtherCAT Slave Terminal may not start normally if the temperature is below 0°C when the power is
turned ON.
Maintain an air temperature of at least approximately 5°C inside the panel, by implementing measures
such as installing a low-capacity space heater in the panel.
Alternatively, leave the EtherCAT Slave Terminal power ON to keep the EtherCAT Slave Terminal
warm.
Low Temperatures
Air filter
Fan
Forced Ventilation Method
EtherCAT
Slave
Terminal
EtherCAT
Slave
Terminal
Fan
Forced Circulation Method
EtherCAT
Slave
Terminal
EtherCAT
Slave
Terminal
Room Cooling
Air conditioner
Control panel
