Omron NX-ECC201 User Manual

7 - 19
7 Wiring
NX-series EtherCAT Coupler Unit User’s Manual (W519)
7-2 Connecting the Power Supply and Ground Wires
7
7-2-5 Wiring to the Screwless Clamping Terminal Block

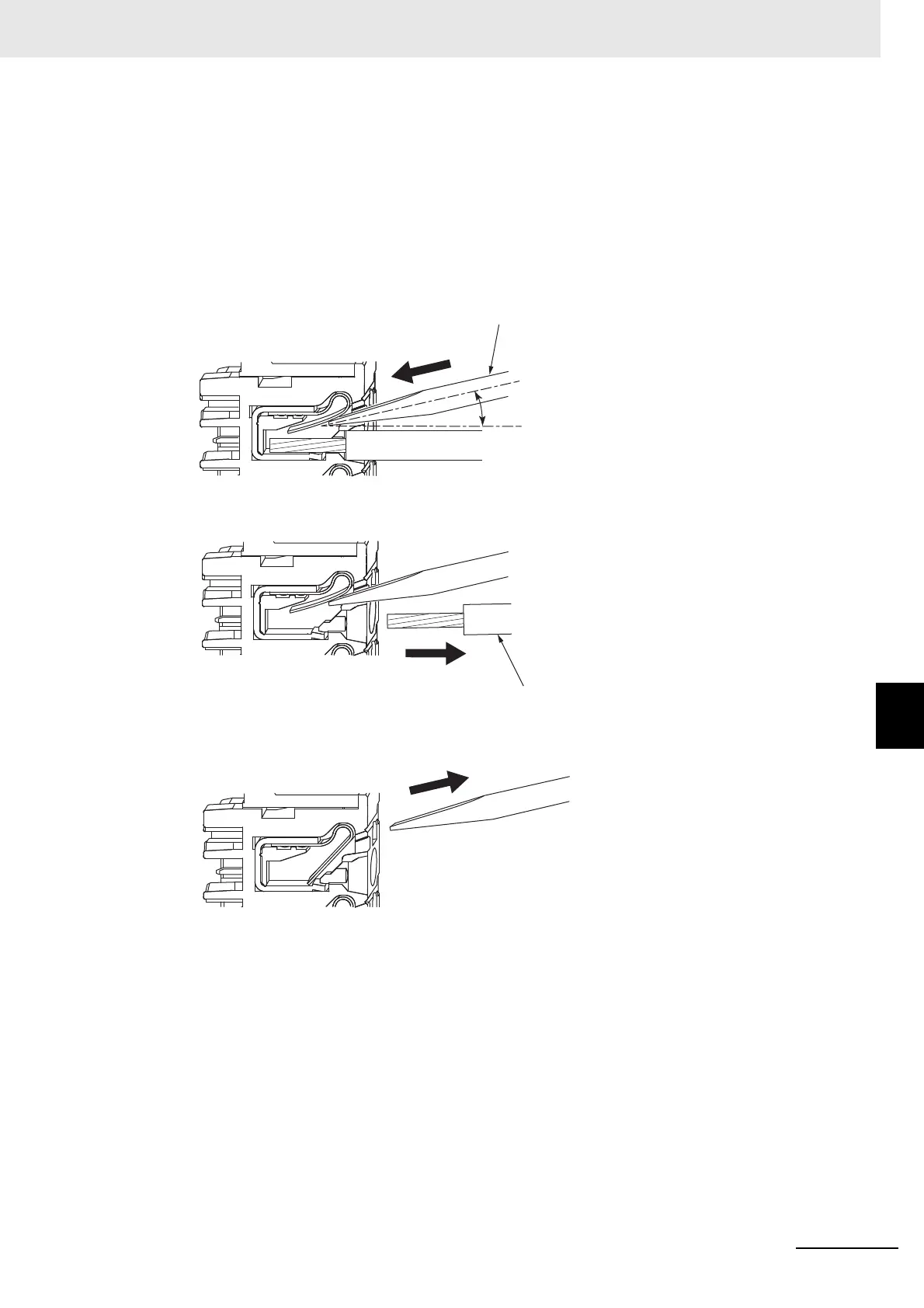

 Removing Wires
Use the following procedure to remove the wires from the terminal block.
The removal method is the same for ferrules, twisted wires, and solid wires.
1 Press the flat-blade screwdriver diagonally into the release hole.
Press at an angle of 10° to 15°.
If you press in the screwdriver correctly, you will feel the spring in the release hole.
2 Leave the flat-blade screwdriver pressed into the release hole and pull out the wire.
3 Remove the flat-blade screwdriver from the release hole.
10 to 15°
Flat-blade screwdriver
1
Wire
2
3
