17
Safety Precautions
NX-series EtherCAT Coupler Unit User’s Manual (W519)
Voltage and Current Inputs
Make sure that the voltages and currents that are input to the Units and slaves are within
the specified ranges.
Inputting voltages or currents that are outside of the specified ranges may cause accidents
or fire.
Transferring
Always confirm safety at the destination node before you transfer Unit configuration infor-
mation, parameters, settings, or other data from tools such as the Sysmac Studio.
The devices or machines may operate unexpectedly, regardless of the operating mode of
the Controller.
Cautions
Wiring
When you connect a computer or other peripheral device to a Communications Coupler
Unit that has a non-isolated DC power supply, either ground the 0-V side of the external
power supply (i.e. Unit power supply) or do not ground it at all.
If the peripheral devices are grounded incorrectly, the external power supply (i.e. Unit
power supply) may be short-circuited.

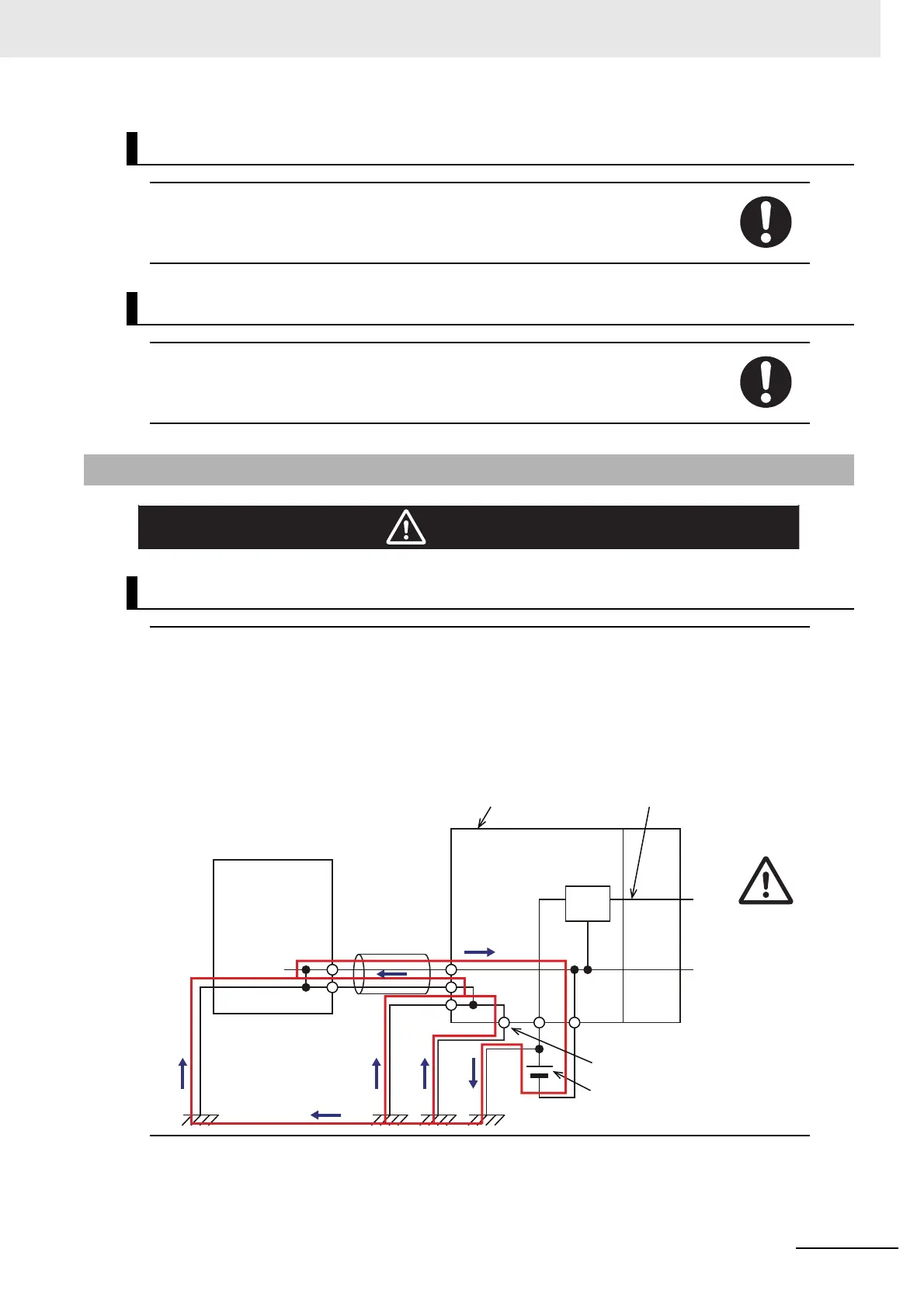

Never ground the 24-V side of the power supply, as shown in the following figure.
Peripheral device
(e.g., computer)
Non-isolated DC power
supply (internal power
supply circuit)
24 V
0 V
Peripheral device
cable
Ground terminal
Communications Coupler Unit
NX Unit power
supply
Unit power
supply
To Next Page
