6 - 23
6 System Configuration and Setup
NX-series Safety Control Unit User’s Manual (Z930)
6-7 Exposing Variables to Standard Controllers
6

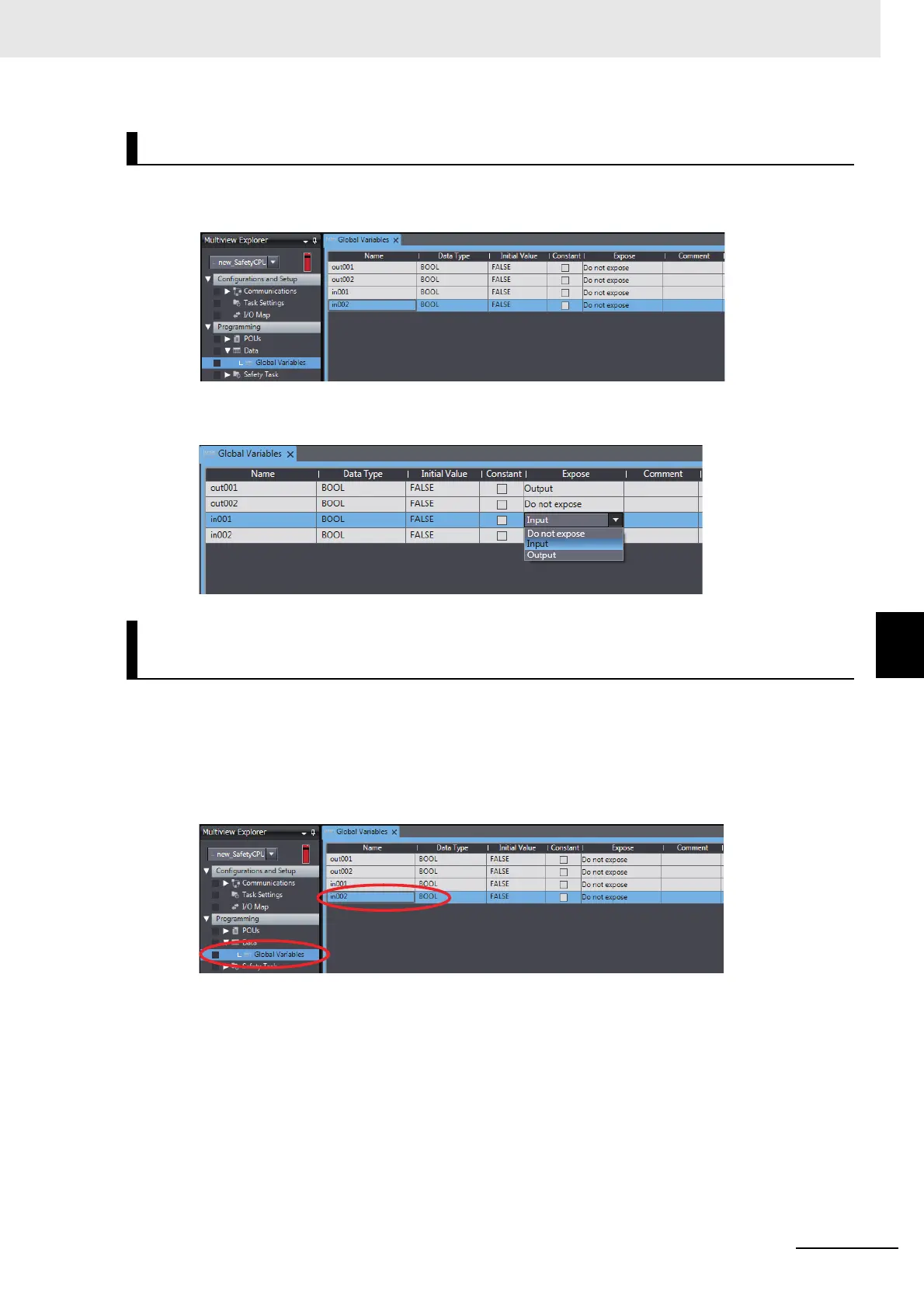

6-7-2 Setting Exposed Variables
1 Register global variables with standard data types.
Refer to 7-5-3 Registering Variables on page 7-38 for details on registering variables.
2 Select the Expose Column for global variables, and then select Input or Output.
The selected variable is registered in the exposed variable input table or output table.
Use the following procedure to select variables on the Global Variable Table and set them as exposed
variables.
You can select more than one global variable.
1 Register global variables with standard data types.
Refer to 7-5-3 Registering Variables on page 7-38 for details on registering variables.
Setting the Expose Column for Global Variables
Copying Global Variables and Pasting Them on the Exposed Vari-
ables Tab Page
To Next Page
