7-5-4 FBD Programming

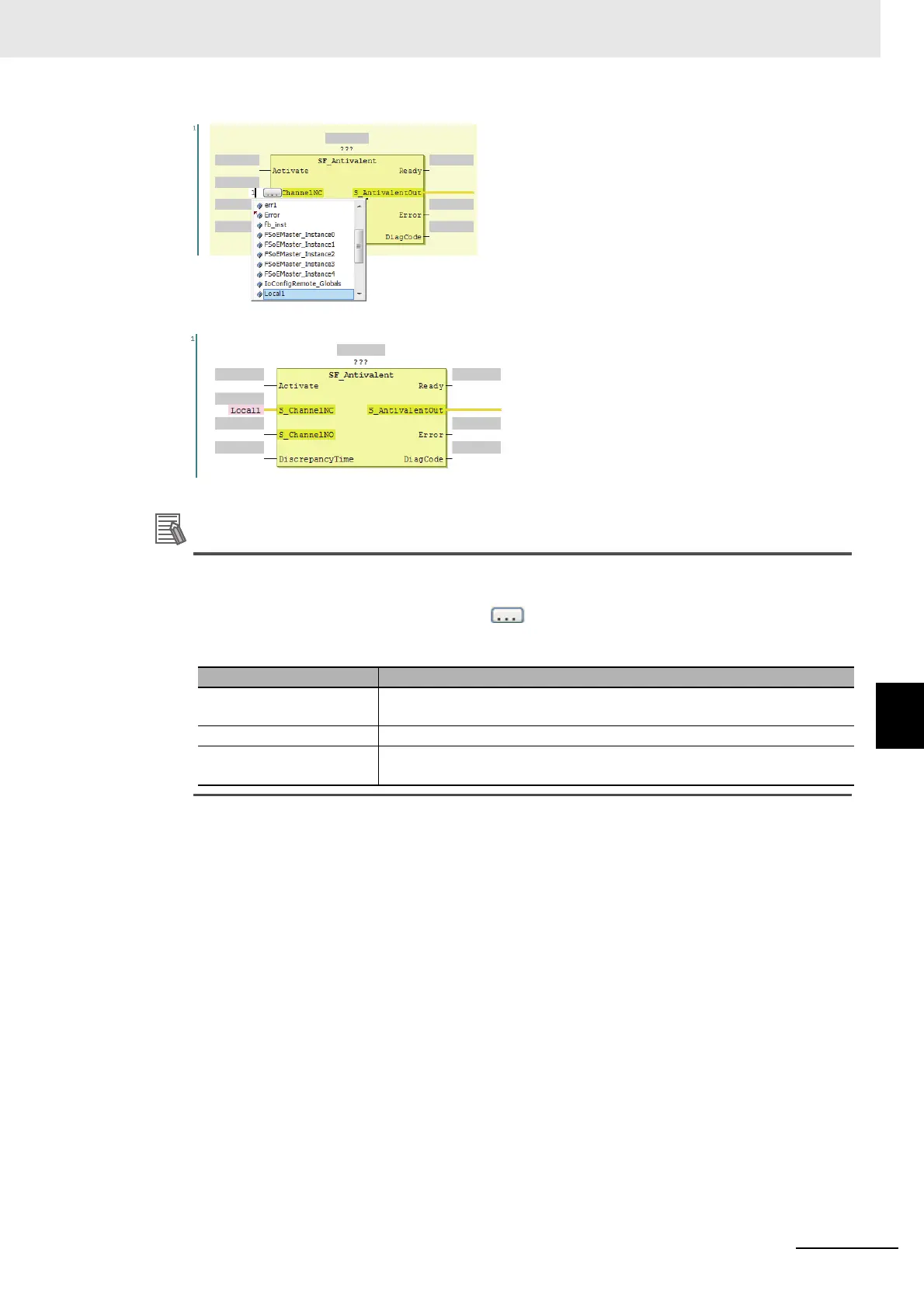

• After the Input Parameter Is Edited
To delete an input parameter assignment, select the parameter and press the Delete Key.
• To create a new input variable, enter the variable name and press the Enter Key. The input
parameter is registered, and it is also registered as a local variable in the local variable table.
• You can click the Input Assistant Button ( ) to the right of the text box to display the Input
Assistant Dialog Box. You can select a variable from the items in this dialog box to insert the
selected variable.
Area Description
Categories Displays the variable categories. The variables that belong to the selected
category are displayed in the Items Area.
Items Displays a list of variables.
Documentation Any additional information that is available for the variable that is selected
in the Items Area is displayed.
