8-6-5 Controlling BOOL Variables, Changing Present Values, and Using
Forced Refreshing

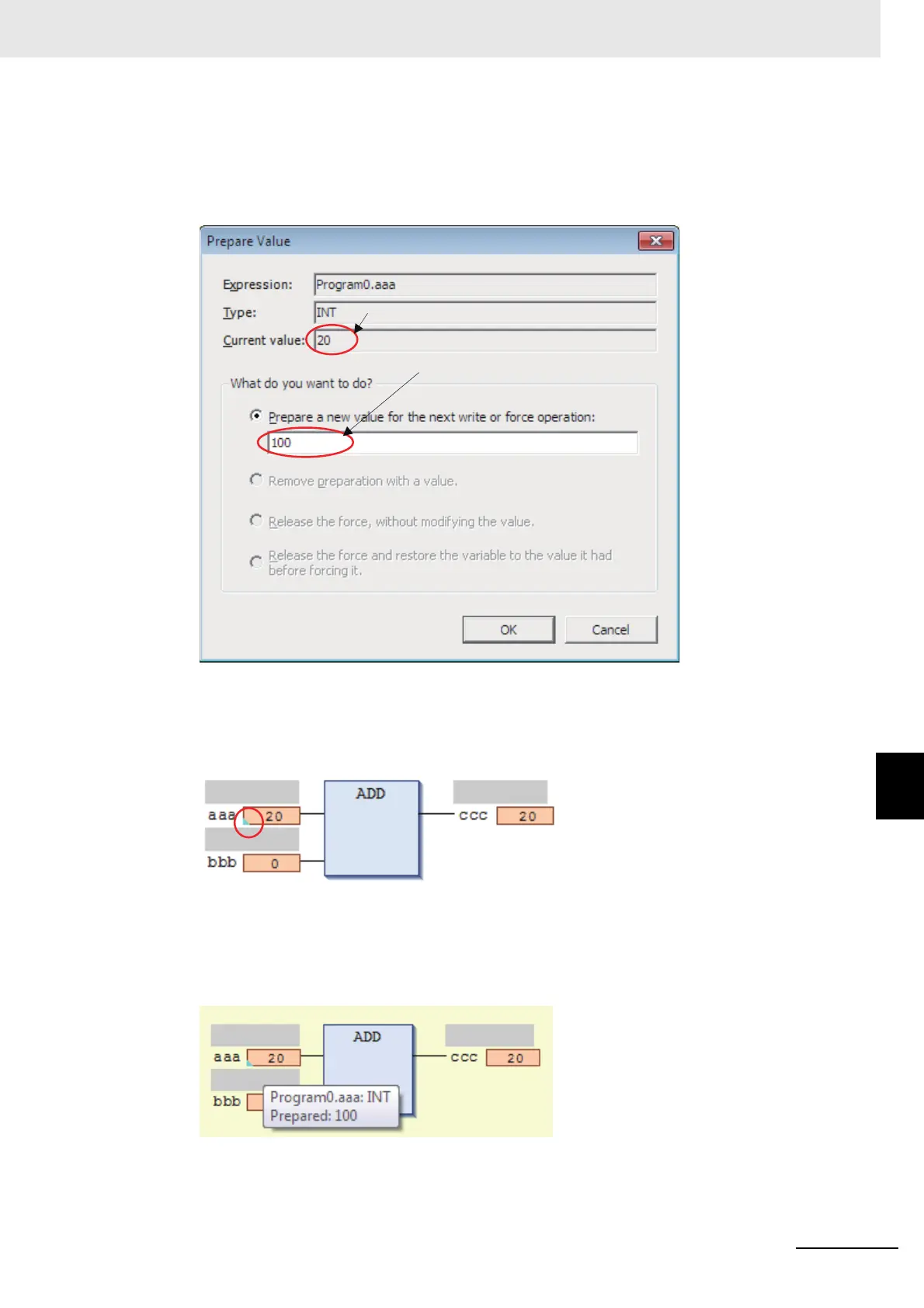

The Prepare Value Dialog Box is displayed.
2 Select the Prepare a new value for the next write or force operation Option and enter the new
value.
Example: This example changes the value to 100.
3 Click the OK Button.
The Prepare Value Dialog Box closes and the value changes to a temporary value.
A light blue triangle is displayed at the lower left of the value. This indicates that a temporary
value is in effect.
To cancel the temporary value, click the present value of the desired variable again. Select the
Remove preparation with a value Option in the Prepare Value Dialog Box, and then click the OK
Button.
4 To check the temporary value, place the cursor over the value. The word Prepared is displayed
in the tooltip.
The present value is displayed.
Enter the desired value here.
