5 Setting Up EtherCAT Communications with the Sysmac Studio
NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (W505)
5-5 Comparing and Merging EtherCAT Network Configurations
5
5-5-1 Comparing and Merging with the Actual Network Configuration from the Sysmac Studio

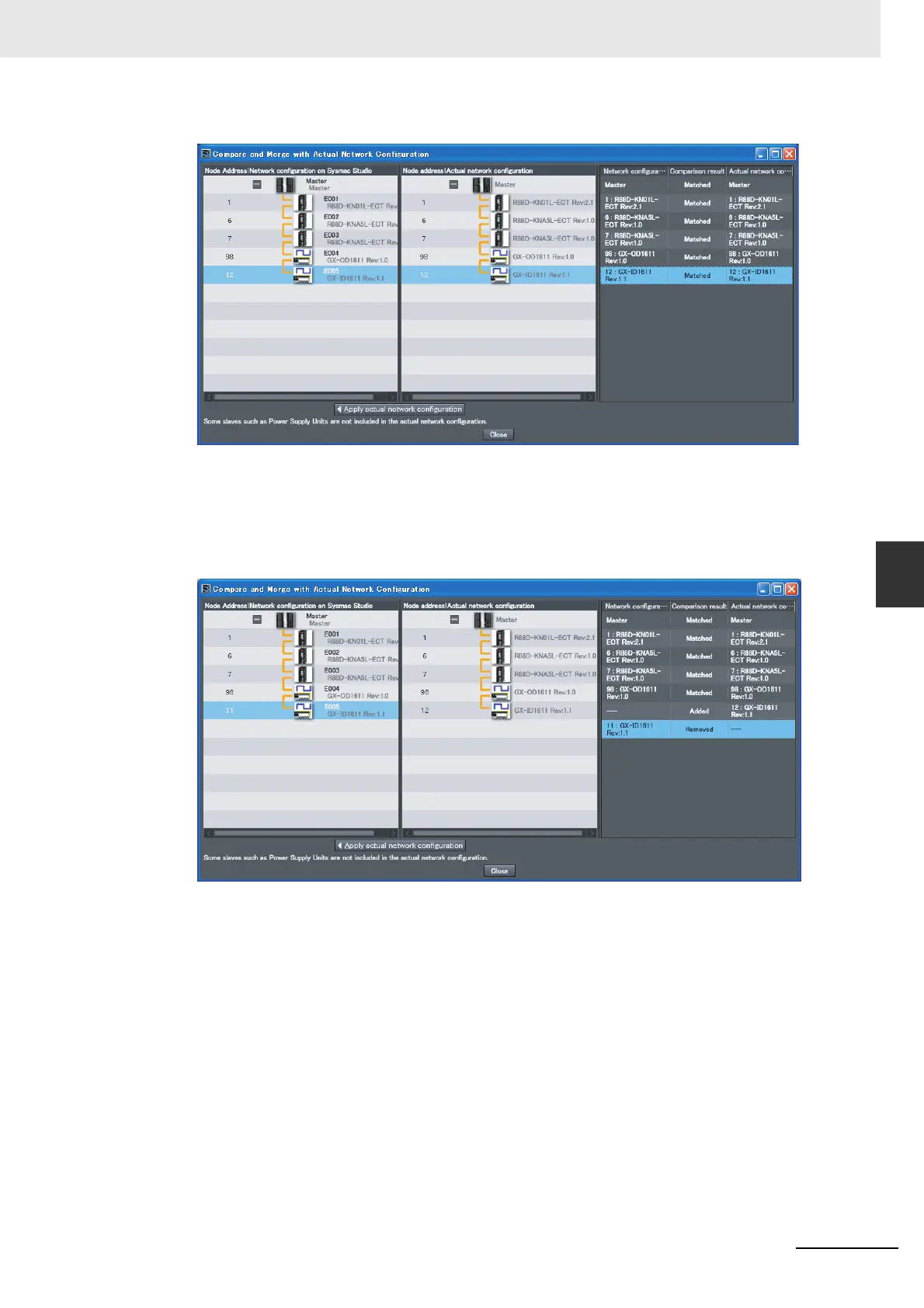

5 Click the Close Button.
The Sysmac Studio returns to the Edit Pane. This completes the operation to compare and
merge with the actual network configuration.
“Removed” is displayed in the Comparison results Column for a slaves that exist only in the set-
tings on the Sysmac Studio. The following example shows a case where a node address is dif-
ferent in the settings on the Sysmac Studio and in the actual network configuration. As a result,
“Added” and “Removed” are displayed in the Comparison results Column.
Here, either correct the node address in the network configuration on the Sysmac Studio or the
node address in the physical slave in the actual network configuration, and then repeat the com-
pare and merge operation to confirm that the configurations are the same.
