4 EtherCAT Network Wiring
4-2
NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (W505)
4-1 Laying the EtherCAT Network
This section describes how to install EtherCAT networks.
The NJ/NX-series CPU Unit can be connected using daisy chain connections with no branching, or with
branching connections using Junction Slaves. This supports redundancy, and all topologies other than

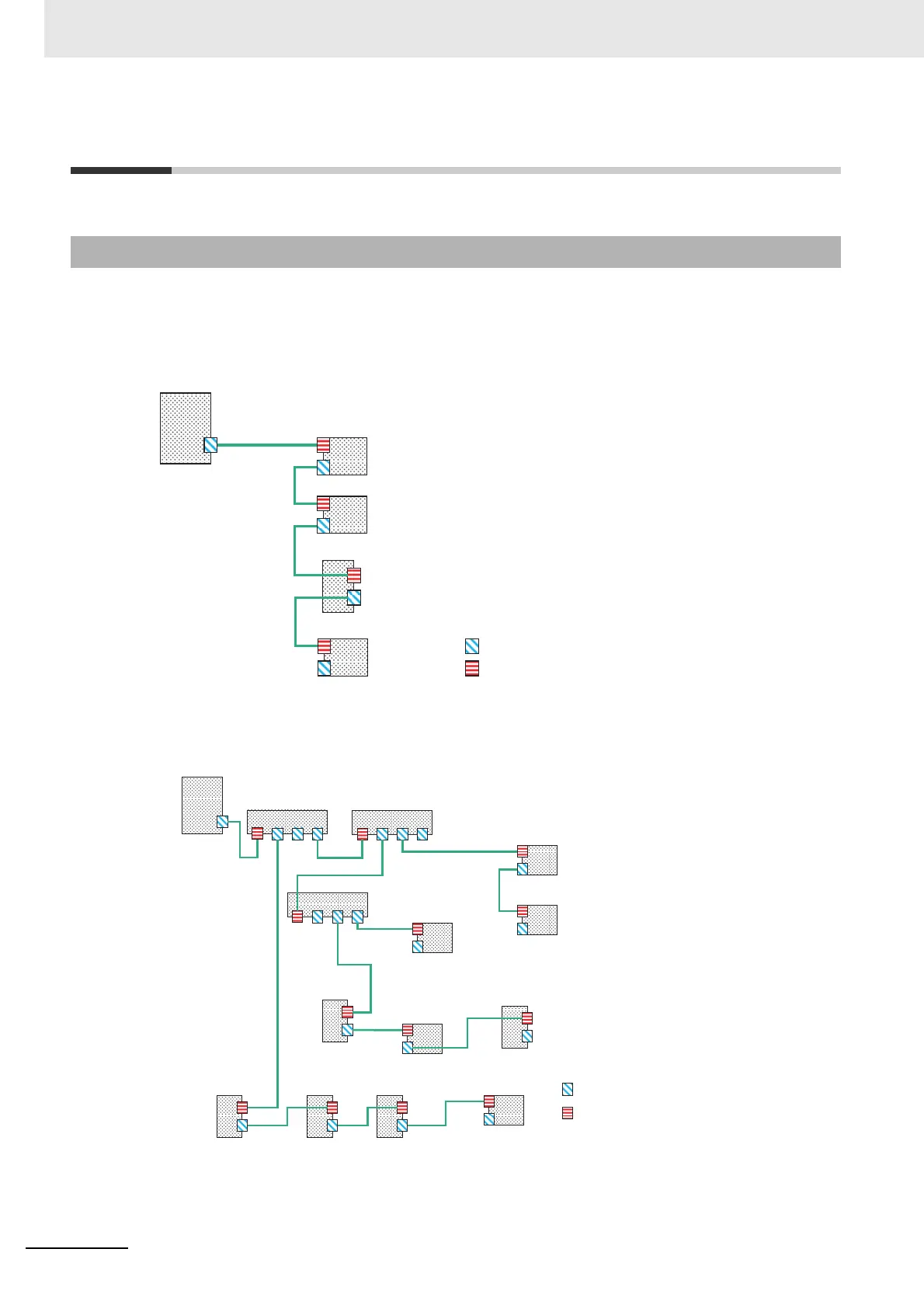

rings. Examples of topology without branching and with branching (Junction Slaves) are shown below.
 No Branching
 Branching
4-1-1 Supported Network Topologies
Input port
Output port
Remote I/O Slave
Servo Drive Slave
Remote I/O Slave
Remote I/O Slave
EtherCAT Master
Junction Slave
Output port
Input port
Remote I/O SlaveServo Drive Slave
Servo Drive SlaveServo Drive Slave
Servo Drive Slave
Remote I/O Slave
Servo Drive Slave
Remote I/O Slave
Remote I/O Slave
Junction Slave
Remote I/O Slave
Junction Slave
EtherCAT Master
