6 Process Data Communications and SDO Communications
6-16
NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (W505)
If the NJ/NX-series CPU Unit detects a major fault level Controller error, all slave outputs will retain the
process data values from before operation stopped in Operational state. Then the slaves will move to
Safe-Operational state and the slave settings will control the slave outputs. The inputs from the slaves
will retain the process data values from before operation stopped. Message communications are con-
tinued.
*
When a major fault level Controller error occurs, the values of the variables are not output to the slaves
even if they are initialized. The slave settings will control the slave outputs.
* The following errors may occur when the slave enters to the Safe-Operational state.
• Slave Application Error
• Slave Initialization Error
The formula and the maximum time required for all the slaves to enter Safe-Operational state and for
the output to reach to the value set from the slave settings are shown below. This formula applies to
only OMRON slaves.

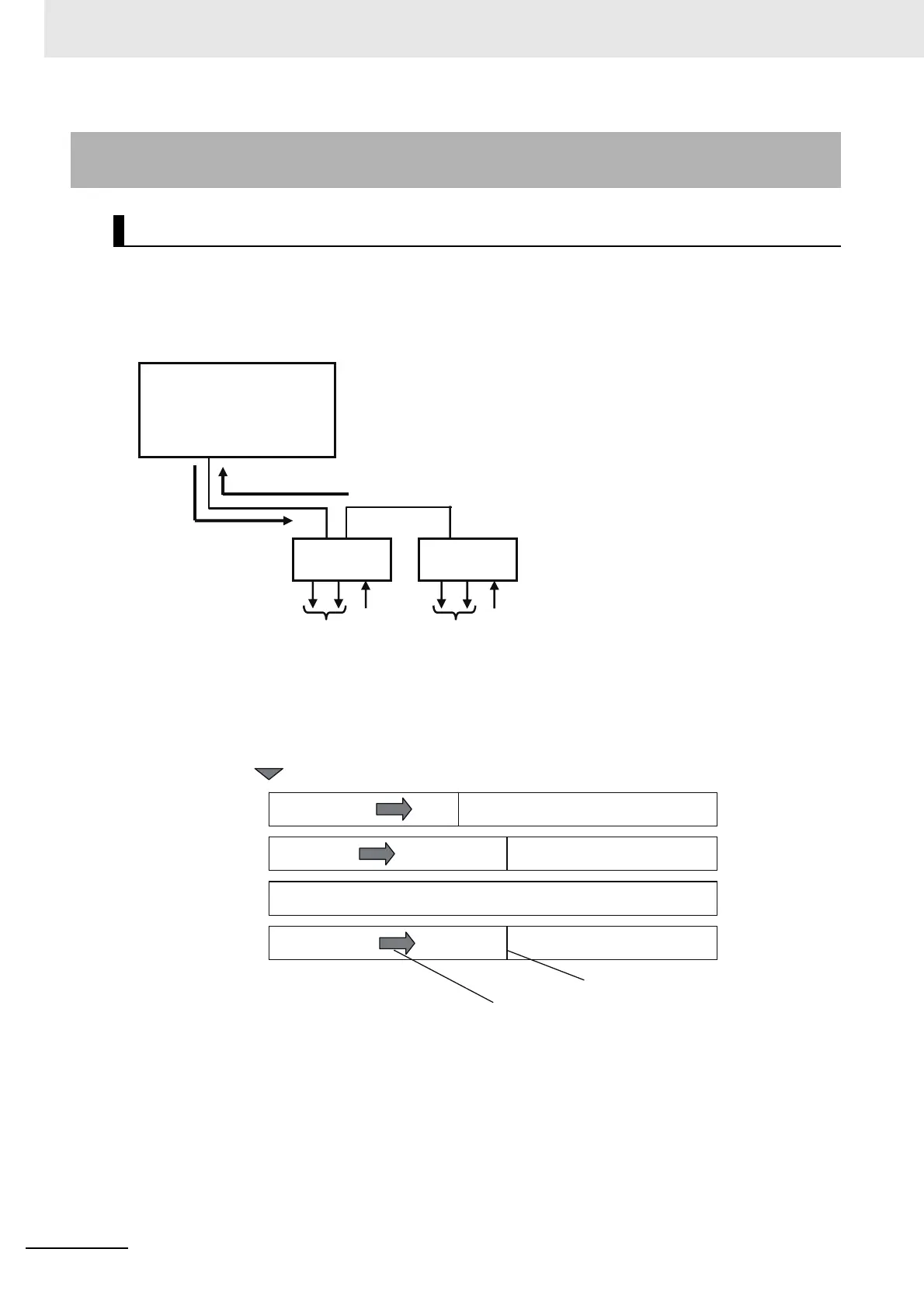

6-1-5 I/O Operations for Major Fault Level Controller Errors and I/O
Refreshing with Specified Values
I/O Operations for Major Fault Level Controller Errors
Values before operation
stopped
When Safe-operational
state is entered, the slave
settings control the outputs.
Values before operation
stopped
When Safe-operational
state is entered, the slave
settings control the outputs.
Slave
Slave
Output data:
Values before
operation stopped.
Input data: Values before
operation stopped.
When a major fault
level Controller error is
detected
NJ/NX-series CPU Unit
Values of variables
Default setting→→→→→→→→→→→→→
Inputs from slaves
→→→→→→→→→→→→→→→→→→→→→→→→→→→→
Values before
operation stopped
Values before
operation stopped
Initial
values
Slave state
Safe-operational→→
Slave output values According to settings→→→→→→→→
Values before
operation stopped
According
to settings
Operation stopped.
Operational
Safe-operational
*
When all slaves have entered
Safe-operational state, the slave
settings control all of the outputs.
Gradually change.
