9 Troubleshooting
9-8
NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (W505)

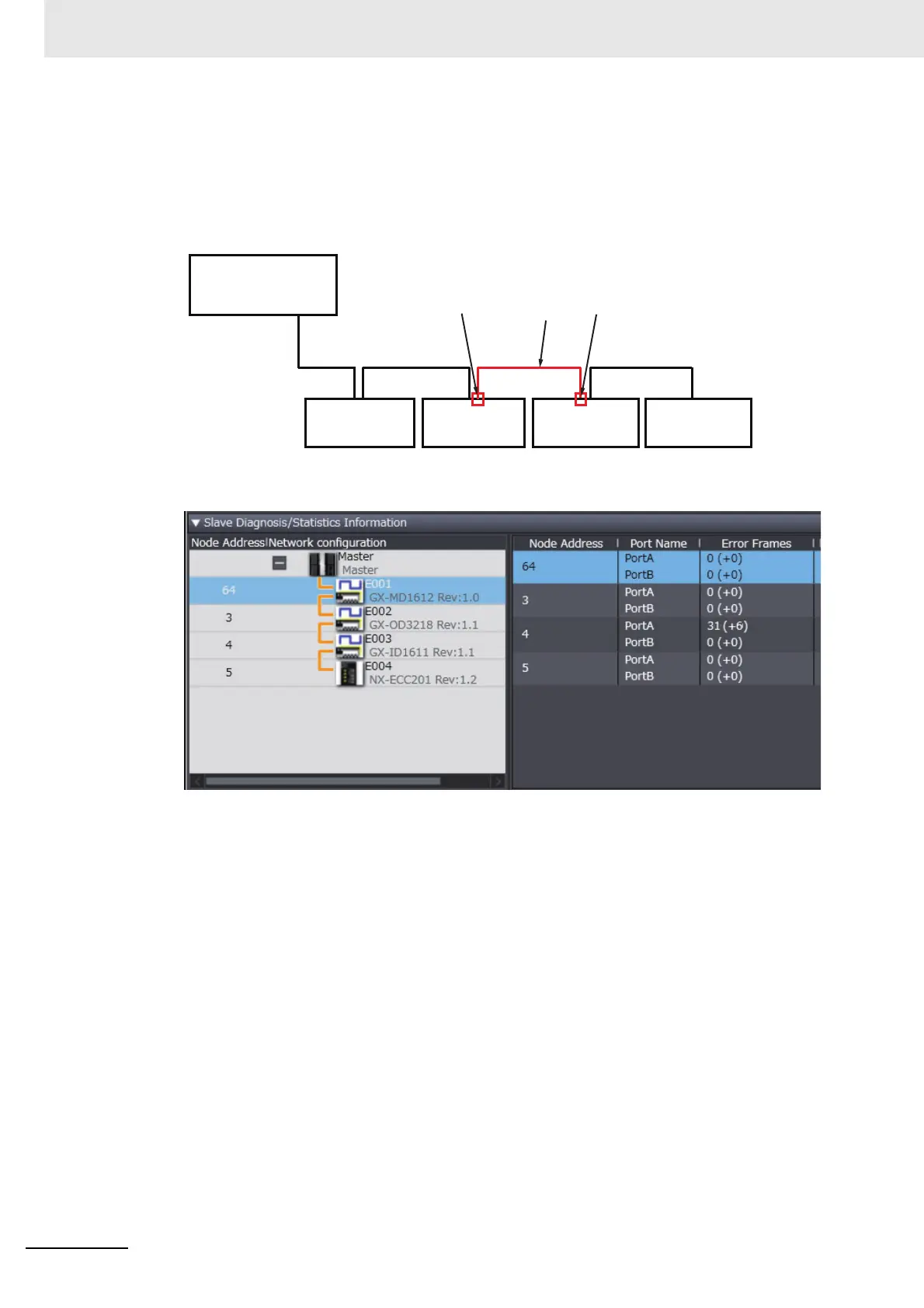

Examples of Finding Error Locations
Example 1: Network Configuration Where an EtherCAT Junction Slave Is Not Used
Network configuration
Slave Diagnosis/Statistics Tab Page
The number of error frames for the input port (PortA) for node address 4 is 31, so you can see
that error frames were received on the input port for node address 4.
Therefore, you can assume that there is a problem between the output port (PortB) for node
address 3 and the input port for node address 4.
This corresponds to location (A), (B) or (C) in the network configuration diagram.
Concretely, you can assume the following possible error locations.
• The device at node address 3
• The cable between the output port at node address 3 and the input port at node address 4 or
the connectors at those ports
• The device at node address 4
IN
OUTOUT OUTIN IN
IN
OUT
(B)
(A)
NJ/NX-series CPU Unit
EtherCAT master
(C)
Slave
node address 64
Slave
node address 3
Slave
node address 4
Slave
node address 5
