Appendices
A-32
NJ/NX-series CPU Unit Built-in EtherCAT Port User’s Manual (W505)
3
Select the location at which to register a module and double-click the module to register in the
Toolbox. Or, drag the module from the Toolbox to the location to register it on the Edit Pane for
the module configuration.

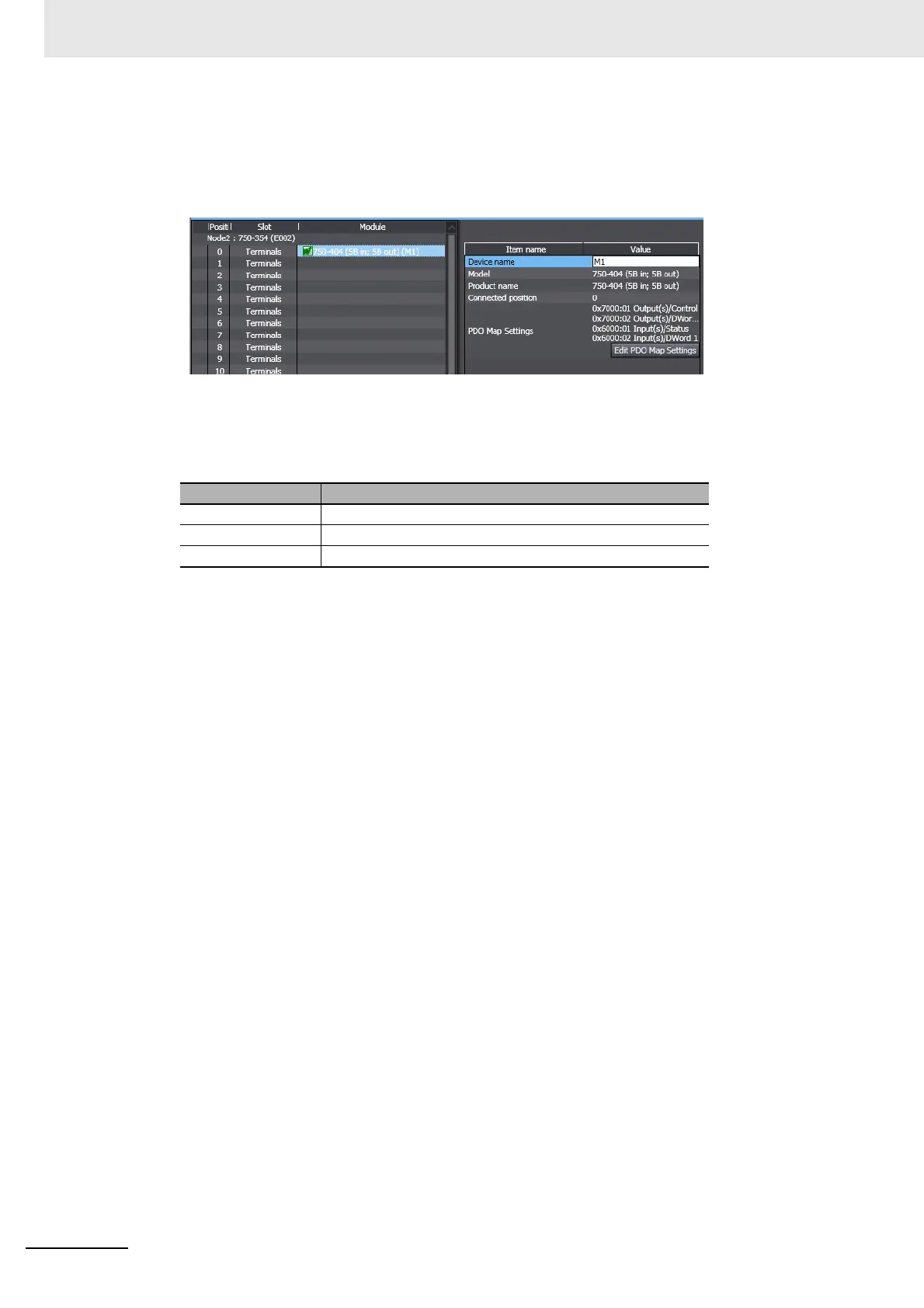

The module is registered and a list of module settings is displayed.
Some items in the module settings only display the current setting. The other items in the mod-
ule settings are changeable. The set values and their meanings are given below for the settings
that are only displayed.
You can edit the Device name and the PDO Map Settings. The meanings of these settings are
given below.
Device Name
• The name of the module is displayed.
• The default is M#. “#” is a serial number that starts from 1.
PDO Map Settings
• The PDO Map Settings displays the settings for the process data assigned for the module.
• When valid PDOs are present, a list of them is displayed.
• When valid PDOs are not present, “---” is displayed.
• Process data is assigned for each module in default by the Sysmac Studio. To change the
process data assignments, click the Edit PDO Map Settings Button. For details, refer to A-3-
4 Editing PDO Entry Tables.
Name Set value that is displayed
Model The model name of the device is displayed.
Product name The product name of the device is displayed.
Connected position
The connected position of the device is displayed.
