2 Part Names and Slave Settings
2-10
NJ/NX-series CPU Unit Built-
in EtherCA
T Port User
’s Manual (W505)
2

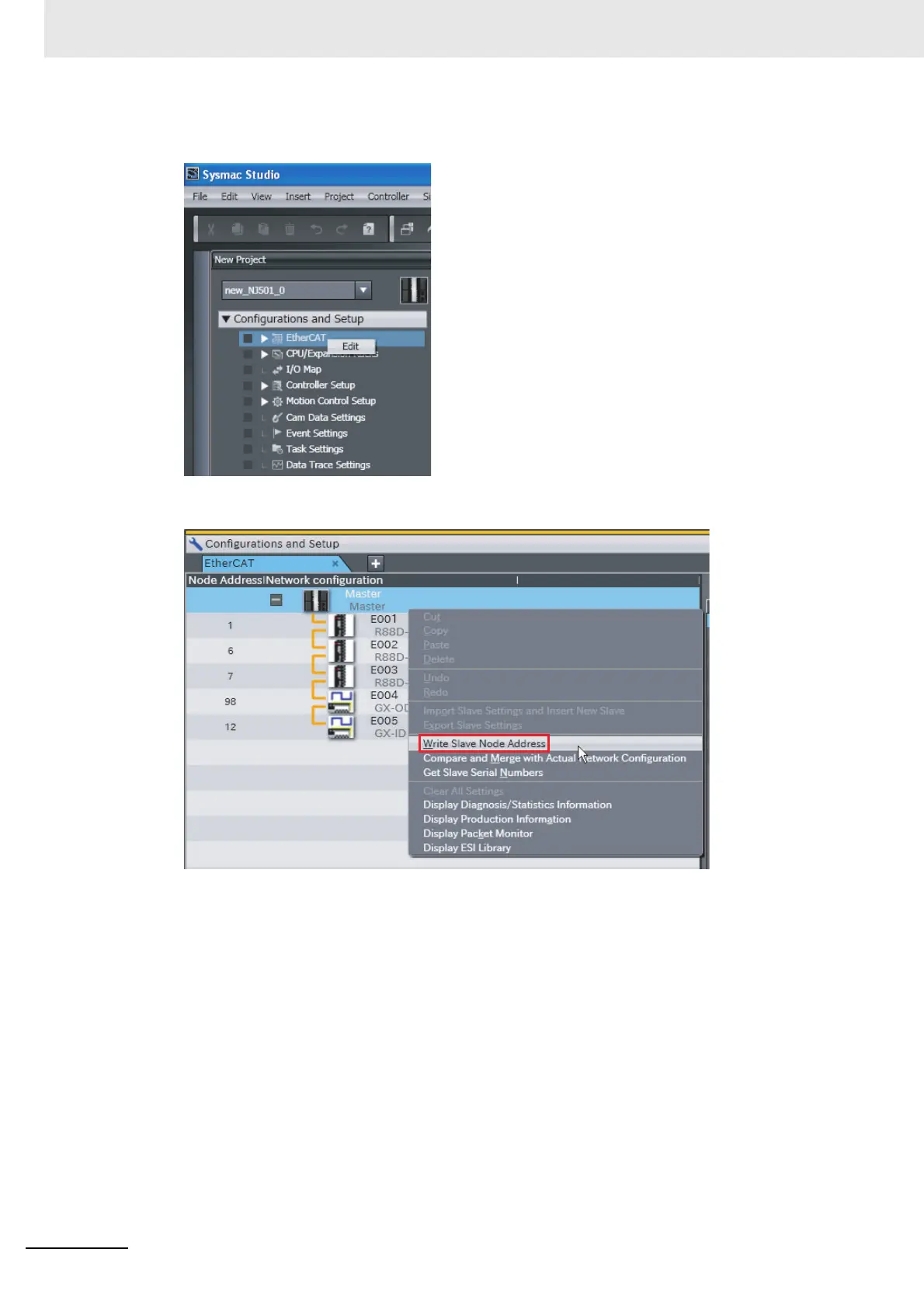

Double-click
EtherCA
T
under
Configurat
ions and Setups
on the Multiview Explorer
. Or
, right-
click
EtherCA
T
under
Configurations and Setups
and se
lect
Edit
.
3
Right-click the EtherCA
T
master that is displayed in the Edit Pane a
nd select
Write Slave Node
Address
.
The Slave Node
Address Writing Dialog Box is displayed.
57
59
