3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications
General-purpose Control Cables (R88A-CPG@S)
This is a cable attached to the connector to be connected to the drive’s control I/O connector
(CN1). The connector for the controller is not provided. When connecting to a Position Control
Unit which does not have a specified cable or connecting to another company's controller,
prepare wiring suited for the controller to be connected.
When connecting to a controller which does not have a specified cable, either use a general-
purpose control cable or a connector-terminal block cable and a connector-terminal block.

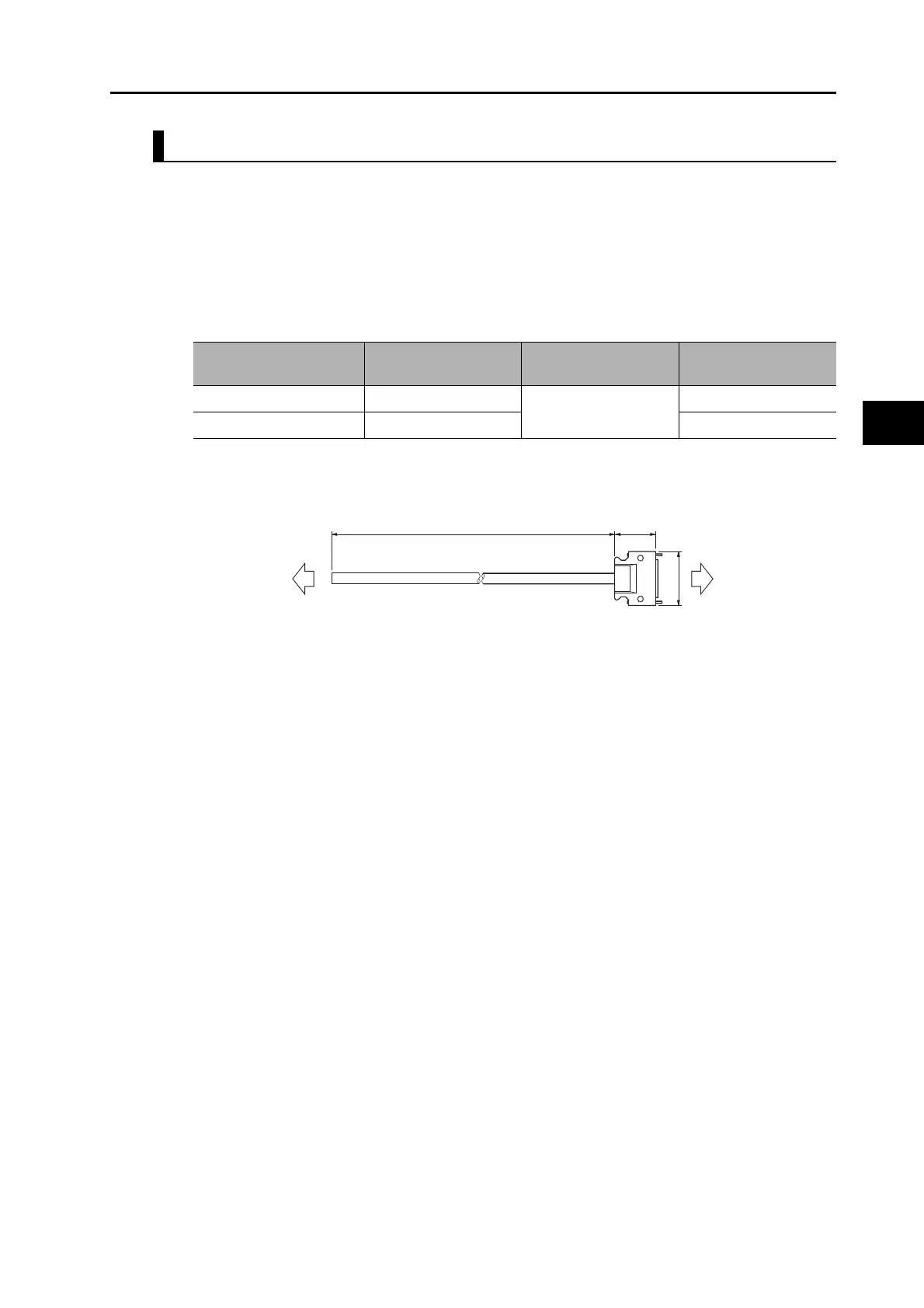

Cable types
Connection configuration and external dimensions
Model Length (L)
Outer diameter of
sheath
Weight
R88A-CPG001S 1 m
12.8 dia.
Approx. 0.3 kg
R88A-CPG002S 2 m Approx. 0.6 kg
39L
52.4
Servo Drive side
R88D-K@
t = 18
Controller side
