8-31
8-4 Analog Control Parameters
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
8
Parameter Details

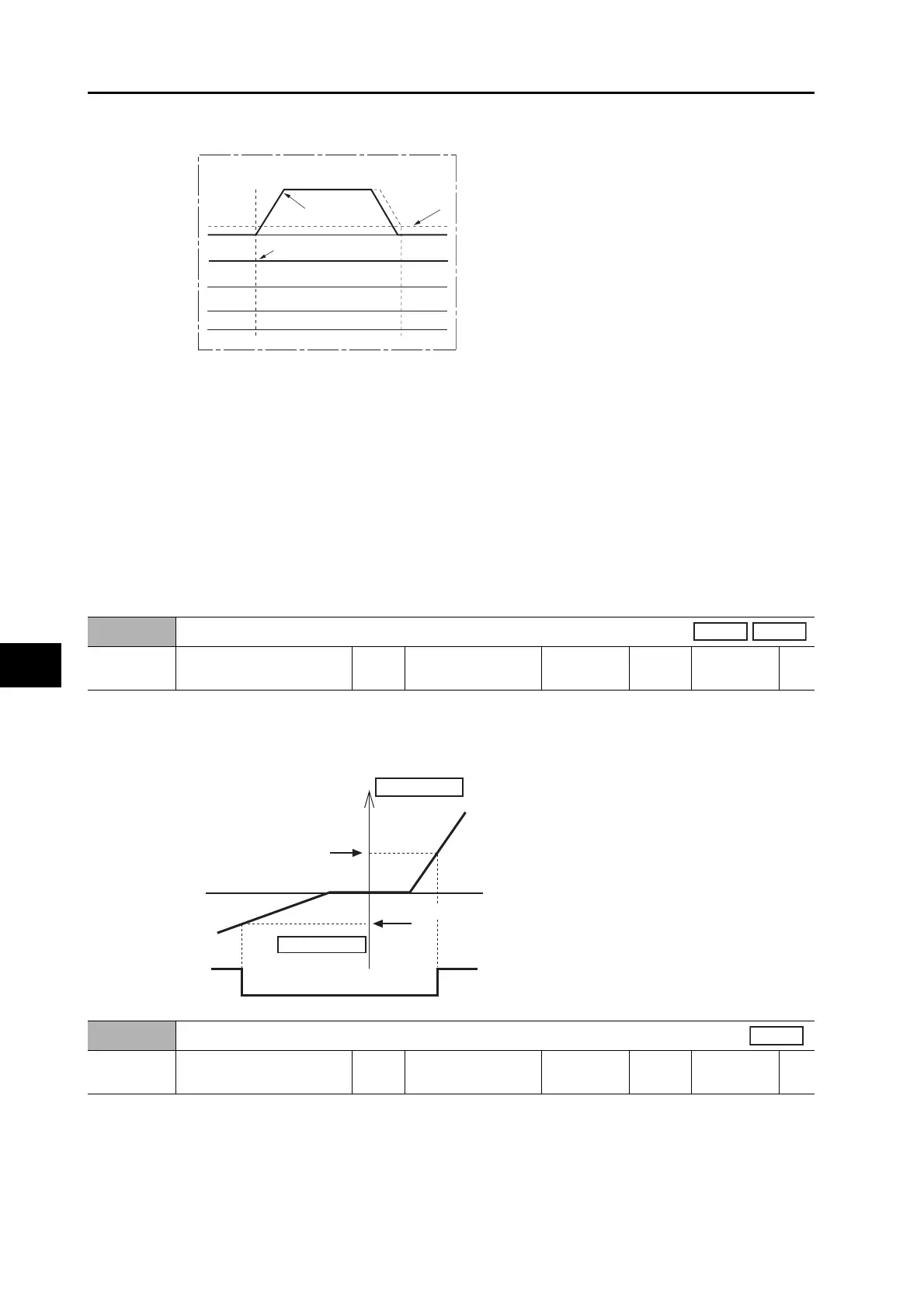

This may not operate correctly if the Control Mode Setting (Pn001) is set to 3 (position or speed
control) or 4 (position or torque control).
The zero speed designation input is turned ON, and when the speed command is equal to or less
than the Position Lock Level Setting (Pn316) minus 10 r/min, operation switches to position control
and the servo lock is applied. When the speed command is equal to or more than the Position Lock
Level Setting (Pn316) plus 10 r/min, operation switches to speed control and the motor speed
follows the command speed.
When the zero speed designation input is turned ON, the speed command will never be 0. You
need to change the speed command.
Since the operation is executed as a normal position control during position control, properly set
the position loop gain, various alarm detection functions and other settings.
Use this parameter when the Control Mode Selection (Pn001) is set to 1 (speed control).
This may not operate correctly if the Control Mode Setting (Pn001) is set to 3 (position or speed
control) or 4 (position or torque control).
Servo locks with position control when the speed of the motor is lower than the setting of this
parameter.
The setting of this parameter is valid for both forward and reverse direction regardless of the motor
rotation direction.
ON
Speed command
Position control Position control
Speed control
Pn316
Zero speed designation input
Figure C
Pn316
Position Lock Level Setting
Setting
range
10 to 20,000 Unit r/min
Default
setting
30
Power OFF
and ON
−
Speed
Speed
Reverse operation
Speed
control
Servo lock
(Pn316)r/min
Forward operation
(Pn316)r/min
Speed
control
Pn317
Torque Command/Speed Limit Selection
Setting
range
0 to 2 Unit −
Default
setting
0
Power OFF
and ON
−
Torque
To Next Page
