8-5 Interface Monitor Setting Parameters
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
8
Parameter Details
When speed command and motor speed are identical, speed conformity output signal is output.
This setting has a hysteresis of 10 r/min for detection.
Motor rotation speed detection output signal is output when the motor speed reaches the speed
set as the achieved speed.
This setting has a hysteresis of 10 r/min for detection.
Pn435
Speed Conformity Detection Range
Setting
range
10 to 20,000 Unit r/min
Default
setting
50
Power OFF
and ON
−

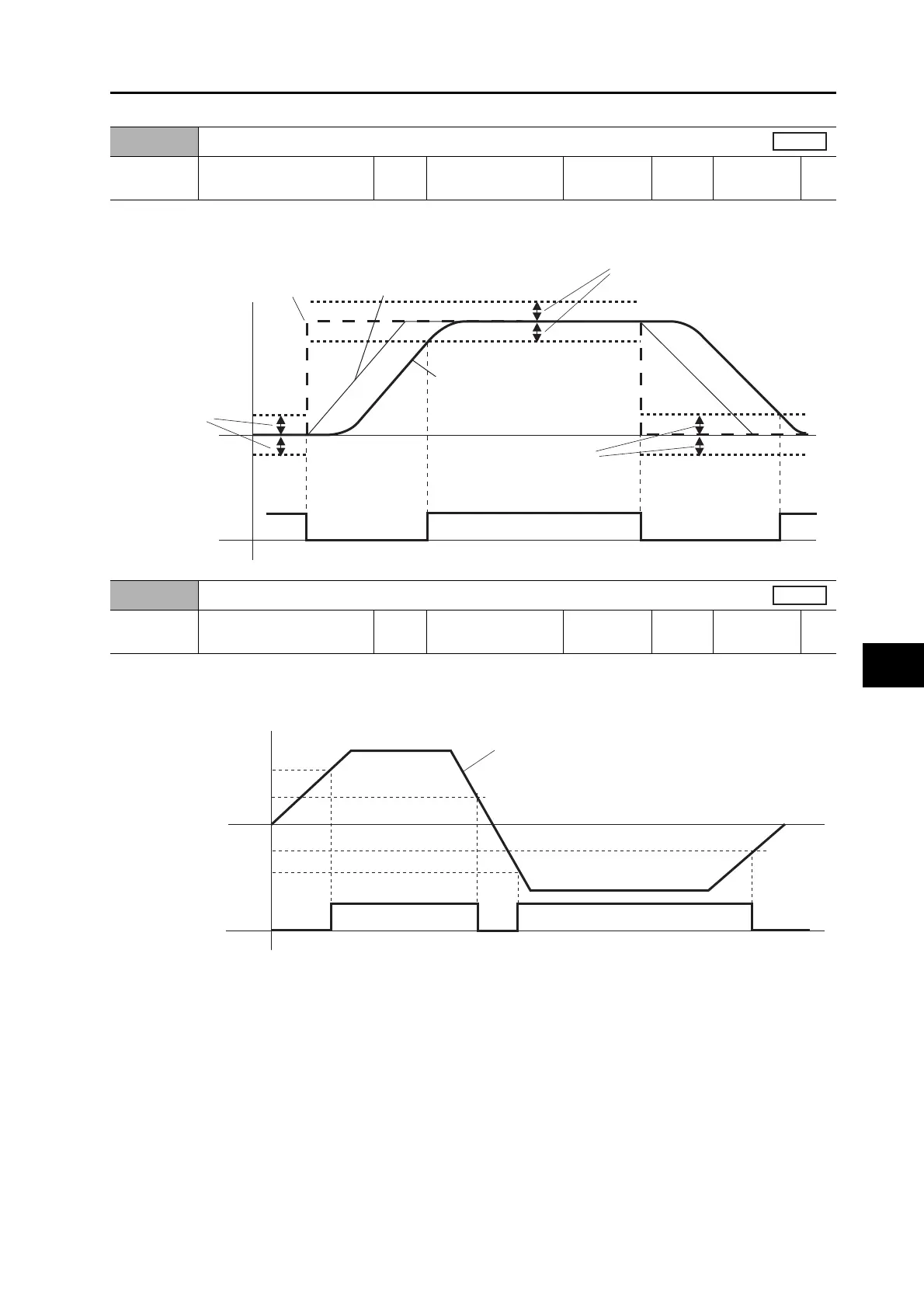

Speed
Speed [r/min]
A speed command after the acceleration
/deceleration processing
Speed command
Motor speed
Pn435
ON ONOFF OFF
Pn435
Speed Conformity
Detection Range
Pn435
Speed Conformity Detection Range
Speed Conformity Detection Range
Time
Speed conformity
output
Pn436
Rotation Speed for Motor Rotation Detection
Setting
range
10 to 20,000 Unit r/min
Default
setting
1000
Power OFF
and ON
−
Speed
Speed [r/min]
Motor speed
Time
Pn436+10
Pn436−10
− (Pn436−10)
− (Pn436+10)
OFF OFFON ON
Motor rotation speed
detection output
