2-4 External and Mounting Dimensions
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
2
Standard Models and External Dimensions
Front Mounting (Using Front Mounting Brackets)

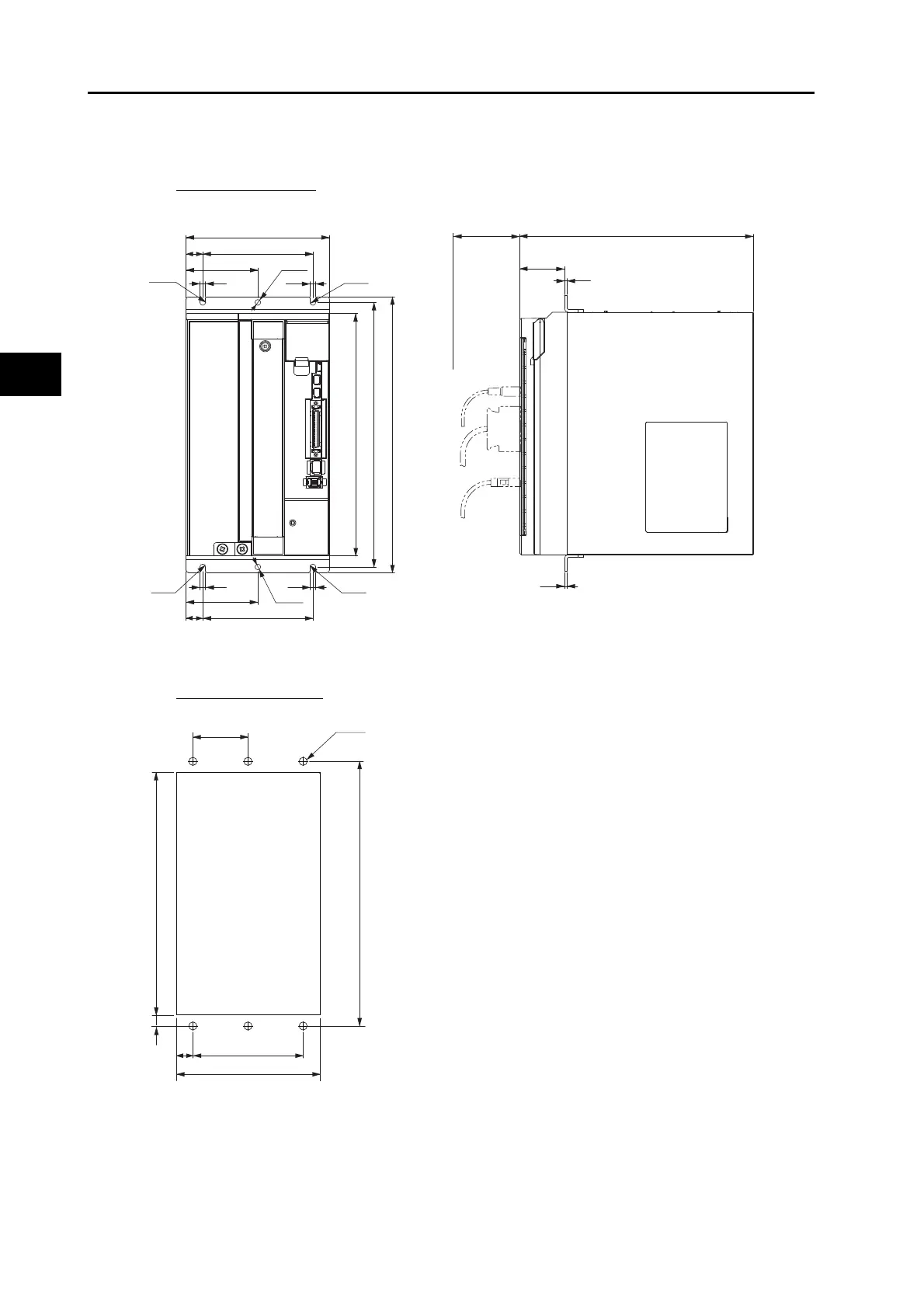

External dimensions
Mounting dimensions
* Rectangular hole dimensions are reference values.
R2.6
R2.6
φ5.2
R2.6R2.6
φ5.2
130
100
15
65
5.2
5.2
220 240 250
5.2
5.2
65
100
15
212
40.7
2.5
2.5
70
Rectangular
hole
6-M4
50
240
100
(132)*
16
(228)*
6
