Omron Q2A Series Technical Manual

10.6 Drive Exterior and Mounting Dimensions
378 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
■ 4044, 4060

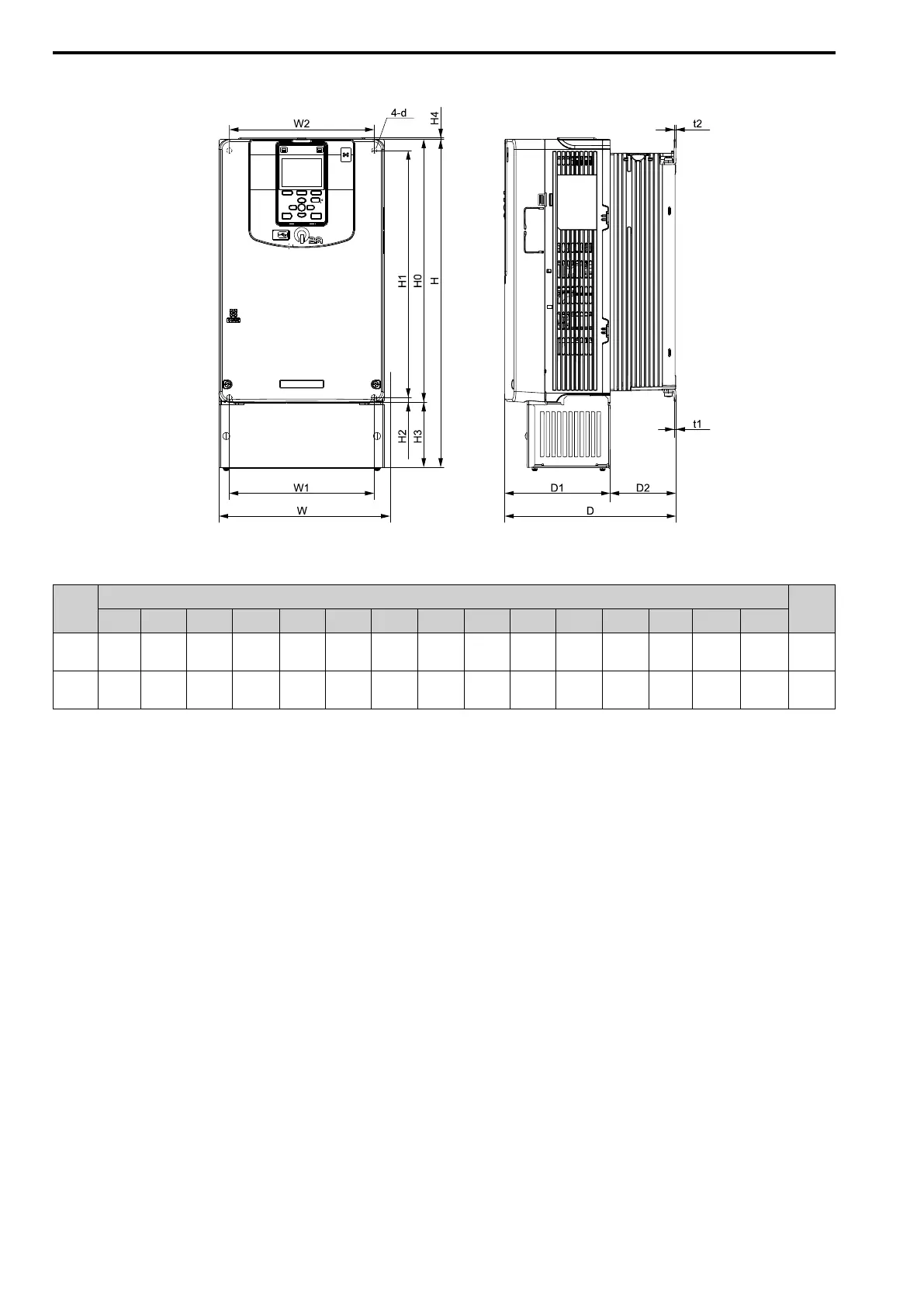

Figure 10.12 Exterior and Mounting Dimensions Diagram 3
Table 10.29 400 V Class (UL Type 1)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2 H0 H1 H2 H3 H4 t1 t2 d
4044
220
(8.66)
400
(15.75)
227
(8.94)
140
(5.51)
87
(3.43)
192
(7.56)
192
(7.56)
350
(13.78)
335
(13.19)
8
(0.315)
50
(1.97)
1.5
(0.059)
2.3
(0.091)
2.3
(0.091)
M6
8.5
(18.74)
4060
220
(8.66)
400
(15.75)
246
(9.69)
140
(5.51)
106
(4.17)
192
(7.56)
192
(7.56)
350
(13.78)
335
(13.19)
8
(0.315)
50
(1.97)
1.5
(0.059)
2.3
(0.091)
2.3
(0.091)
M6
13
(28.66)
