10.6 Drive Exterior and Mounting Dimensions
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 379
■ 4075

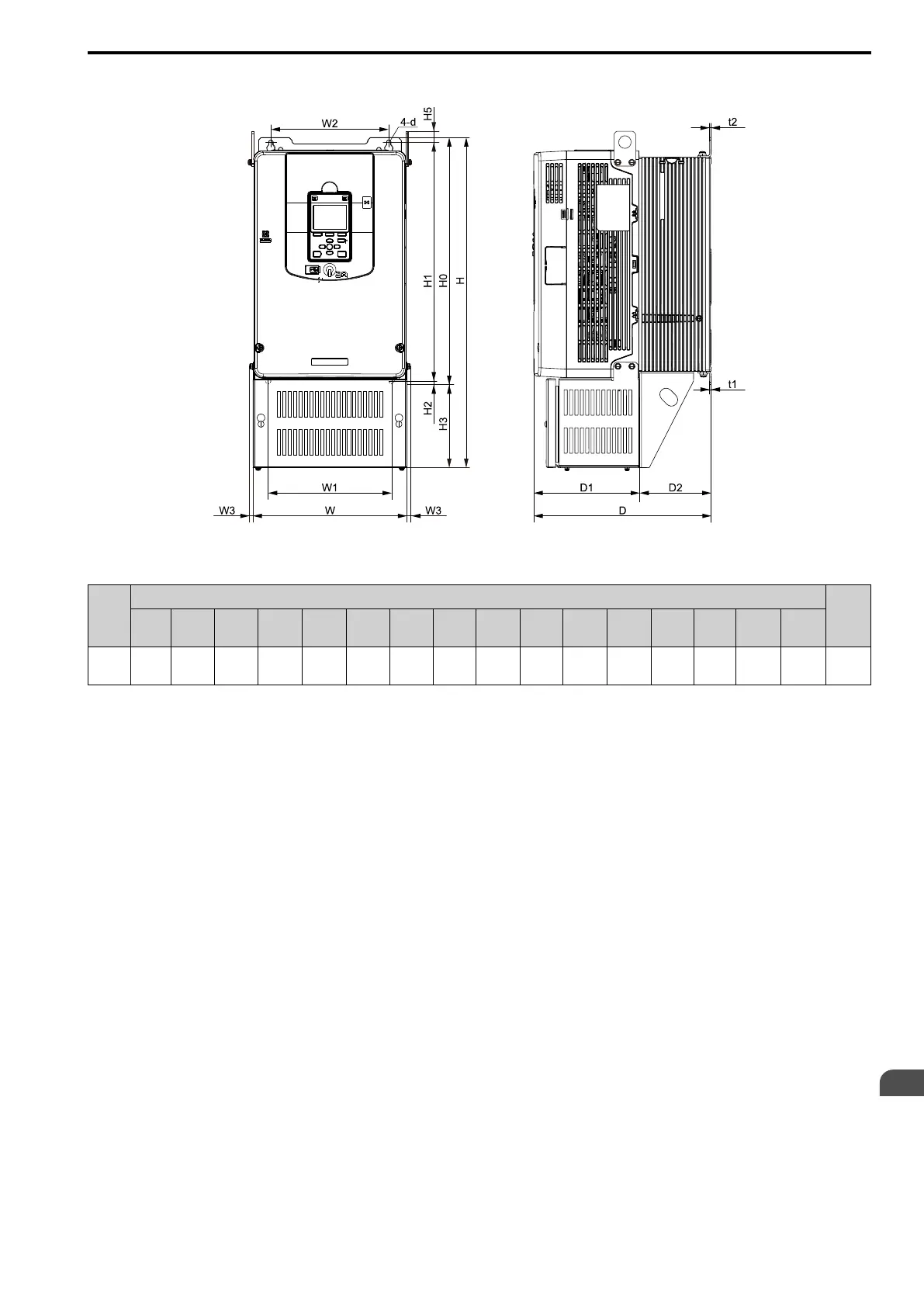

Figure 10.13 Exterior and Mounting Dimensions Diagram 4
Table 10.30 400 V Class (UL Type 1)
Model
Dimensions mm (in.)
Weight
kg (lb.)
W H D D1 D2 W1 W2
W3
(max.)
H0 H1 H2 H3 H5 t1 t2 d
4075
244
(9.61)
500
(19.69)
280
(11.02)
166
(6.54)
114
(4.49)
195
(7.68)
186
(7.32)
10
(0.394)
400
(15.75)
375
(14.76)
17.5
(0.689)
100
(3.94)
17.5
(0.689)
2.3
(0.091)
2.3
(0.091)
M6
20
(44.09)
