Omron Q2A Series Technical Manual

Specifications
10
10.7 Knock-Out Hole Dimensions (UL Type 1)
SIEPYEUOQ2A01A AC Drive Q2A Technical Manual 385
◆ 4044, 4060

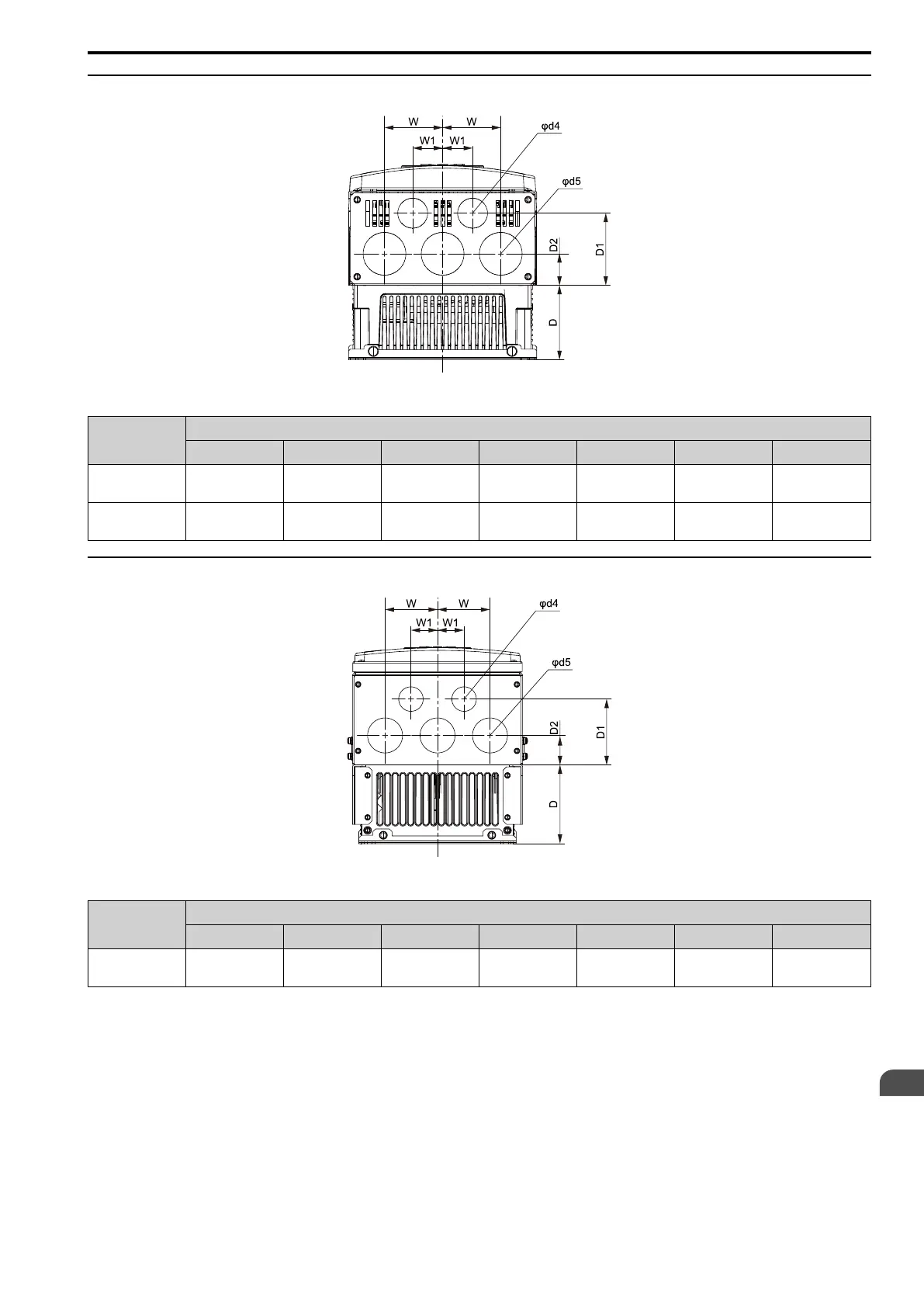

Figure 10.20 Knock-Out Dimensions Diagram 3 (Models: 4044, and 4060)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5
4044
87.2
(3.43)
84.3
(3.32)
36.8
(1.45)
68
(2.68)
35
(1.38)
35
(1.38)
50
(1.97)
4060
106.2
(4.18)
84.3
(3.32)
36.8
(1.45)
68
(2.68)
35
(1.38)
35
(1.38)
50
(1.97)
◆ 4075
Figure 10.21 Knock-Out Dimensions Diagram 4 (Models: 4075)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5
4075
112.5
(4.43)
96
(3.78)
48.5
(1.91)
73
(2.87)
38
(1.50)
35
(1.38)
50
(1.97)
