Omron Q2A Series Technical Manual

10.7 Knock-Out Hole Dimensions (UL Type 1)
386 SIEPYEUOQ2A01A AC Drive Q2A Technical Manual
◆ 4089, 4103

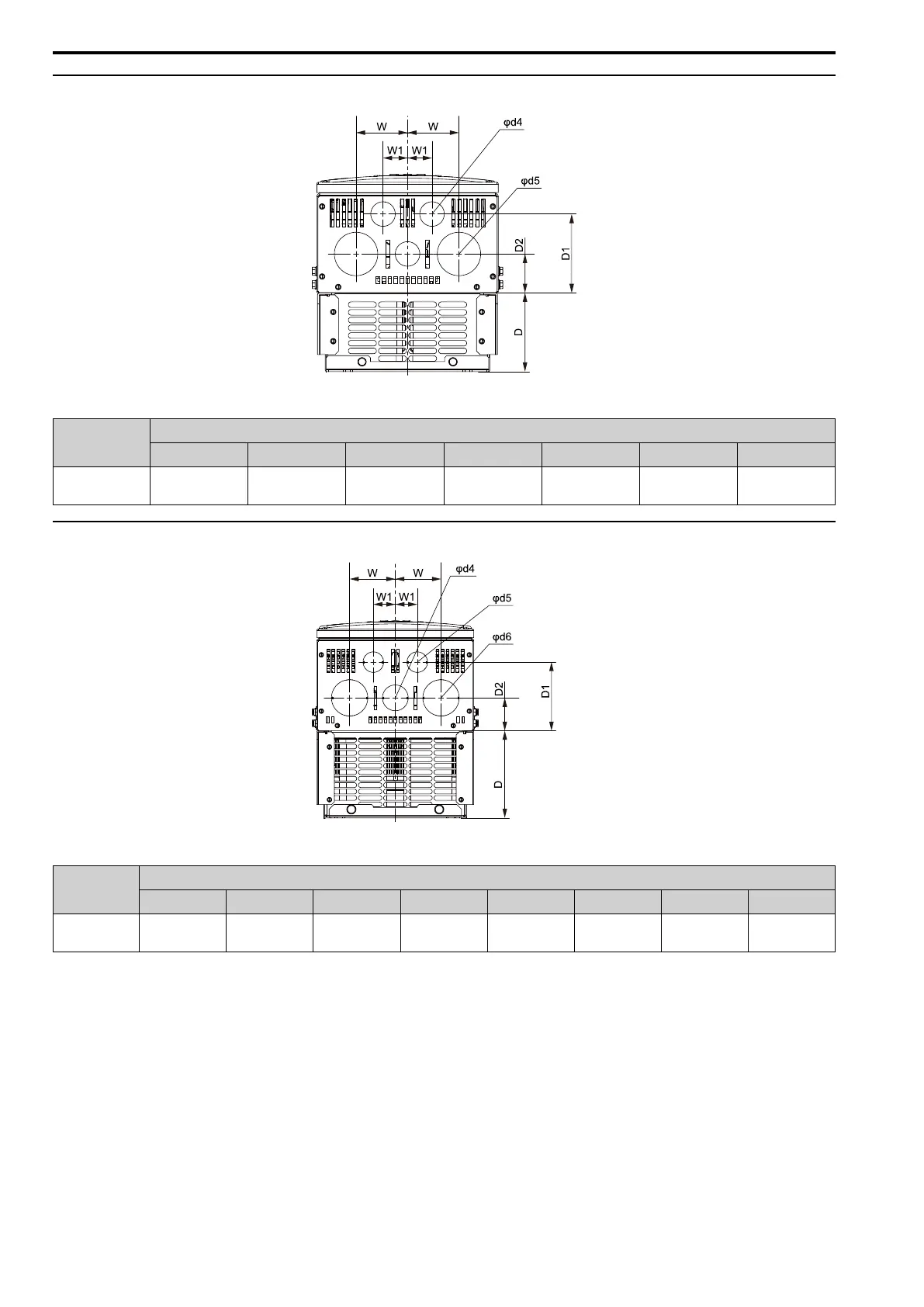

Figure 10.22 Knock-Out Dimensions Diagram 5 (Models: 4089, and 4103)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5
4089, 4103
112.4
(4.43)
112.8
(4.44)
55.8
(2.20)
73.5
(2.89)
35
(1.38)
35
(1.38)
62
(2.44)
◆ 4140, 4168
Figure 10.23 Knock-Out Dimensions Diagram 6 (Models: 4140, and 4168)
Model
Dimensions mm (in.)
D D1 D2 W W1 φd4 φd5 φd6
4140, 4168
149
(5.87)
117
(4.61)
56
(2.20)
78
(3.07)
37.5
(1.48)
44
(1.73)
35
(1.38)
62
(2.44)
